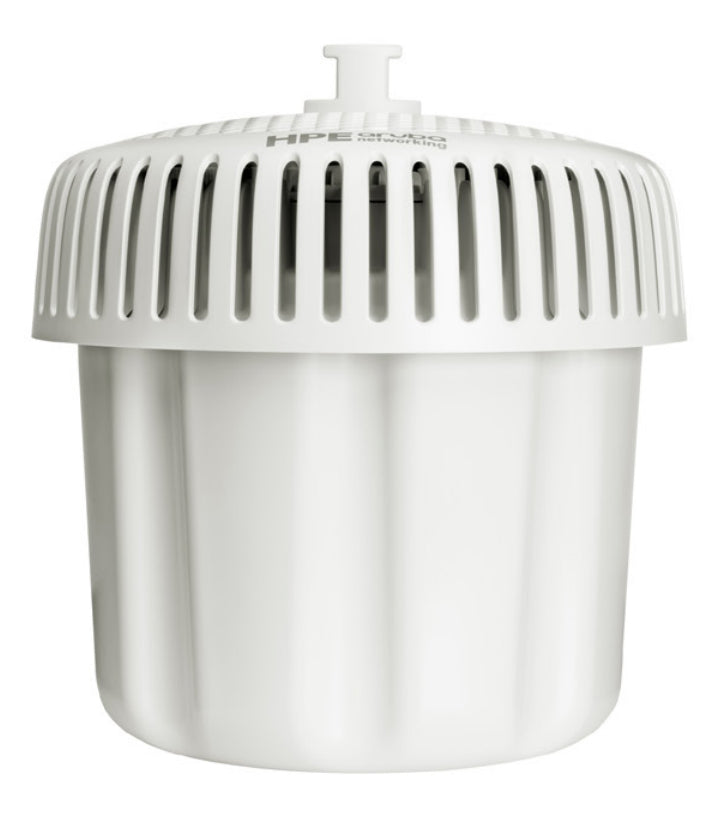

• Aruba S0Q51A AP-675EX Wi-Fi 6E access point with white cylindrical water filter
1 1

Aruba

Aruba S0Q51A | 670 Series Wi-Fi 6E Tri-Radio HazLoc Access Point, RW

S0Q51A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The AP-675EX is a ruggedised, hazardous-location certified outdoor access point from the Aruba 670 Series, built for oil rigs, mining facilities, industrial manufacturing plants and transportation sites. It suits places exposed to extreme temperatures, flammable gases or vapours, and dust, and carries Class 1 Division 2 and ATEX Zone 2 certification.

This RW (Rest of World) regulatory domain variant uses a tri-radio 2x2:2 MIMO Wi-Fi 6E design across the 2.4, 5 and 6 GHz bands, with a maximum aggregate data rate of 3.9 Gbps. Two integrated tri-band omnidirectional antennas are fitted. Wired connectivity is one 100/1000/2500BASE-T NBASE-T port (E0) that accepts PoE, plus a 1GbE SFP port. Integrated high-power Bluetooth 5 and Zigbee radios support Industrial IoT deployments, and a built-in TPM and embedded GPS receiver support Standard Power operation.

Power is delivered over 802.3bt PoE for unrestricted operation, with 802.3at class 4 operation subject to Intelligent Power Monitoring restrictions. The unit comes with a pre-installed mounting bracket holder and works with mount kits such as the AP-270-MNT-H1. It is managed through Aruba Central or an Aruba Mobility Conductor and Controller platform.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Weatherproof, temperature-hardened design for harsh outdoor environments
- 6 GHz band adds up to 1200 MHz of extra capacity for high-bandwidth, low-latency applications
- Integrated high-power Bluetooth 5 and Zigbee radios for Industrial IoT
- 2.5GbE and 1GbE SFP wired connectivity
- Standard Power operation with embedded GPS receiver for self-location
- Intelligent Power Monitoring reports energy use and can enable or disable features based on available PoE power
- Cyclic delay/shift diversity, STBC, LDPC and transmit beamforming for range and reliability
- Built-in TPM for security and anti-counterfeiting
- Automatic thermal shutdown and recovery

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: AP-675EX (RW)
- Wi-Fi standard: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
- Radio configuration: Tri-radio, 2x2:2 MIMO (2.4, 5 and 6 GHz)
- Maximum aggregate data rate: 3.9 Gbps
- Antennas: Two integrated tri-band omnidirectional (3.8 dBi 2.4 GHz, 5.7 dBi 5 GHz, 5.9 dBi 6 GHz)
- Antenna orientation: Optimised for horizontal mounting, downtilt of roughly 5 to 10 degrees for maximum gain
- Wired interface E0: Auto-sensing 100/1000/2500BASE-T, MDI/MDX, NBASE-T and 802.3bz compliant
- Other interfaces: 1GbE SFP port, USB, USB-C, serial console, integrated BLE/Zigbee antenna (approx. 2 dBi)
- PoE input: 48 Vdc nominal, 802.3at/bt (class 4 or higher)
- Maximum power consumption (PoE): 29 W without USB device, 45.5 W with USB device
- Maximum power consumption, idle: 11 W without USB device, 27.5 W with USB devices at maximum
- Maximum power consumption, deep sleep: 3.2 W (PoE)
- PoE budget: Class 6 (802.3bt) 45.5 W unrestricted, Class 5 40 W restricted, Class 4 (802.3at) 25.5 W restricted
- Hazardous location certifications: Class 1 Division 2 (Groups A, B, C, D, T4), ATEX Zone 2
- Security: Built-in TPM
- Dimensions (W x D x H): 290 x 288 x 312 mm
- Weight: 3.8 kg
- Mounting: Pre-installed bracket holder, mount kits sold separately

FAQs

Q: What PoE standard does the AP-675EX need?
A: For unrestricted operation it needs 802.3bt class 6 PoE on port E0. Class 5 and 802.3at class 4 are supported with Intelligent Power Monitoring restrictions. 802.3af is not supported except for staging.

Q: Which hazardous-location certifications does it carry?
A: This EX model is certified Class 1 Division 2 (Groups A, B, C, D, T4) and ATEX Zone 2.

Q: Does it require a controller or cloud subscription?
A: Yes. It is managed through an Aruba management platform such as Aruba Central cloud management or a Mobility Conductor and Controller. Check your management licensing before deployment.

Q: What mounting options are available?
A: It has a pre-installed mounting bracket holder and works with separately sold mount kits such as the AP-270-MNT-H1 hanging and tilt kit. The antennas are optimised for horizontal mounting.

Q: What does the RW designation mean?
A: RW stands for Rest of World, the regulatory domain this variant is built for. It uses internal omnidirectional antennas and is the hazardous-location EX model.
