Cisco

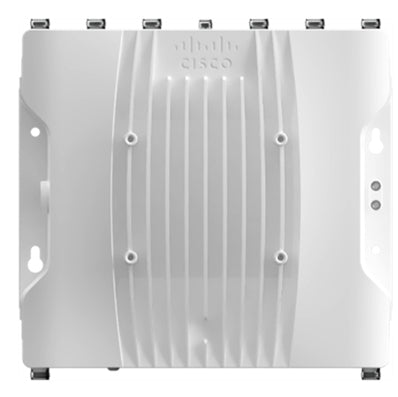

Cisco IW9167EH-Z-WGB | Catalyst IW9167E Wi-Fi 6E Industrial AP, WGB, Z Domain

IW9167EH-Z-WGB

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IW9167E Heavy Duty is a ruggedised IP67 Wi-Fi 6E industrial access point built for outdoor and harsh-environment deployments. This IW9167EH-Z-WGB variant ships with the Workgroup Bridge software image for the Z regulatory domain, so it associates to an infrastructure access point as a client and gives wired industrial equipment behind its Ethernet port a connection to the Wi-Fi network. It suits AGVs, AMRs, teleremote devices, rail and other static or mobile industrial applications.

The platform uses three 4x4 radios covering 2.4 GHz, 5 GHz and 5/6 GHz, with PHY data rates up to 7.8 Gbps and 160 MHz channel support on the 5/6 GHz radio. Eight N-type external antenna ports and a TNC GNSS port support the Cisco antenna portfolio and Self-Identifiable Antennas. Connectivity includes one 100M/1G/2.5G/5G Multigigabit Ethernet port with PoE+ and UPOE input, plus one SFP port for copper or fibre. It can also be powered from 24-48 VDC.

The WGB image requires Cisco Unified Industrial Wireless Software 17.11.1 or later and works with infrastructure access points managed by Cisco Catalyst 9800 Series Wireless Controllers. The unit is rated IP66 and IP67 and operates from -40 to +70 C, with an extended range of -50 to +75 C when DC powered.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Workgroup Bridge mode connects wired equipment to the Wi-Fi network through the access point's Ethernet port
- Tri-radio 4x4 Wi-Fi 6E design with 160 MHz channel support on the 5/6 GHz radio
- Multigigabit Ethernet up to 5 Gbps plus a 10G-capable SFP port
- Built-in GPS/GNSS for AFC location reporting
- Heavy-duty IP67 construction hardened against shock, vibration and extreme temperatures
- EN 50155 rail certification
- M12 converters allow Ethernet and power interfaces to change while keeping certifications
- Integrated BLE 5.1 for asset tracking and location use cases

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi standard: Wi-Fi 6E (802.11ax), tri-radio 4x4:4
- Radios: 2.4 GHz 4x4, 5 GHz 4x4, 5/6 GHz 4x4
- Channel widths: 20 MHz (2.4 GHz), 20/40/80 MHz (5 GHz), 20/40/80/160 MHz (5/6 GHz)
- PHY data rate: up to 7.8 Gbps
- MIMO: 4x4 UL/DL MU-MIMO, 4 spatial streams, OFDMA, TWT, BSS colouring
- Antenna ports: 8 x N-type external, 1 x TNC GNSS
- Ethernet: 1 x 100M/1G/2.5G/5G Multigigabit (RJ-45 or M12 X-code)
- SFP port: 1 x SFP, copper 100M/1G/10G mGig or fibre 1G/10G
- Power input: 802.3at PoE+, 802.3bt UPOE, Cisco UPOE, or 24-48 VDC (18-60 VDC range)
- Power draw: 48 W (4x4 on all radios, DC or UPOE), 25 W (PoE+, 2x2 radios)
- Bluetooth: integrated BLE 5.1 radio
- Memory: 2048 MB DRAM, 1024 MB flash
- Environmental rating: IP66 and IP67
- Operating temperature: -40 to +70 C (extended -50 to +75 C DC powered)
- Storage temperature: -40 to +85 C
- Operating humidity: 0% to 100% condensing
- Wind resistance: up to 257 km/h sustained
- Dimensions (W x L x H): 29.2 x 26.7 x 7.1 cm
- Weight: 4.2 kg
- Maximum transmit power: 24 dBm (2.4 GHz), 30 dBm (5 GHz)
- Regulatory domain: Z
- Software image: Workgroup Bridge (WGB)

FAQs

Q: Does the WGB mode need a separate licence?
A: No separate licence is stated for WGB mode in the datasheet. This SKU ships with the WGB software image. Cisco DNA licences apply to Wi-Fi mode and URWB licences apply to URWB mode only.

Q: How can the IW9167EH-Z-WGB be powered?
A: It accepts 802.3at PoE+, 802.3bt UPOE, Cisco UPOE or 24-48 VDC (18-60 VDC range). Draw is 48 W at full 4x4 on DC or UPOE, and 25 W on PoE+ with 2x2 radios. PG 13.5 glands or M12 converters are needed to maintain the IP67 rating.

Q: What software and infrastructure does it work with?
A: The WGB image needs Cisco Unified Industrial Wireless Software 17.11.1 or later. It associates to infrastructure access points managed by Cisco Catalyst 9800 Series Wireless Controllers, physical or virtual.

Q: What antennas does it use?
A: This E model has eight N-type external antenna ports and one TNC GNSS port. It supports the Cisco antenna portfolio and Self-Identifiable Antennas.

Q: What does the Z domain mean for this SKU?
A: Z is the regulatory domain this unit is built for. It covers 2.412-2.462 GHz, 5.500-5.700 GHz (excluding 5.600-5.640 GHz) and 5.745-5.825 GHz, with 6 GHz operation subject to regulatory approval.
