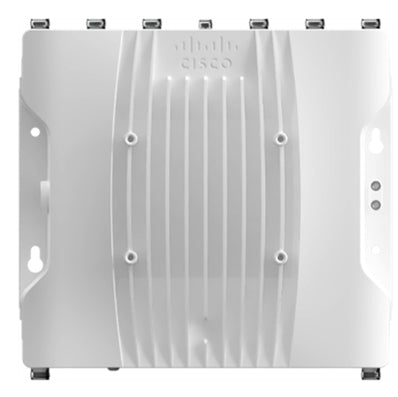

Cisco IW9167EH-ROW-AP | Catalyst IW9167E Wi-Fi 6E Outdoor Access Point, 8x N-type

IW9167EH-ROW-AP

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IW9167E Heavy Duty is a ruggedised IP67 outdoor and industrial Wi-Fi 6E access point from the Catalyst IW9167 series, built for ports, mining, rail, utilities and stadiums. This IW9167EH-ROW-AP is the Rest of the World regulatory domain model running Wi-Fi (controller-based AP) software, with external antennas so the antenna can be chosen for each deployment.

Three 4x4 radios cover 2.4 GHz, 5 GHz and 5/6 GHz, with up to 160 MHz channels on the 5/6 GHz radio and PHY data rates up to 7.8 Gbps. Eight N-type antenna ports and one TNC GNSS port handle the RF side. Uplink options are one 100M/1G/2.5G/5G Multigigabit Ethernet port and one SFP port taking copper (100M/1G/10G mGig) or fibre (1G/10G) modules. Power comes from PoE+ (802.3at), UPOE (802.3bt) or 24 to 48 VDC, drawing 48 W at full 4x4 operation on UPOE or DC.

The access point is managed by Cisco Catalyst 9800 Series Wireless Controllers running IOS XE 17.9.4 or later. It supports Cisco industrial and outdoor antennas and Self-Identifiable Antennas (SIA), and runs on Cisco Industrial Wireless DNA subscriptions.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wi-Fi 6E with 4x4 MIMO, uplink and downlink OFDMA and MU-MIMO
- Tri-radio design with a 5/6 GHz radio supporting 160 MHz channels
- Multigigabit Ethernet uplink up to 5 Gbps plus a 10G-capable SFP port
- External N-type antenna ports for a choice of antenna per deployment
- Built-in GNSS antenna port for location reporting to AFC services, subject to regional approval
- Smart AP power saving, band steering to 6 GHz, Target Wake Time and BSS colouring
- Cisco Trust Anchor technologies including image signing and secure boot
- Heavy-duty cast-aluminium housing with IP67 rating and wide temperature range

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model and domain: IW9167EH-ROW, Rest of the World regulatory domain
- Software: Wi-Fi (controller-based AP), Cisco IOS XE 17.9.4 or later
- Radios: tri-radio 4x4:4 (2.4 GHz, 5 GHz, 5/6 GHz)
- Wi-Fi standard: 802.11ax (Wi-Fi 6E), backwards compatible with 802.11n/ac
- PHY data rate: up to 7.8 Gbps
- Channel widths: 20/40/80/160 MHz (160 MHz on 5/6 GHz radio)
- Antenna ports: 8x N-type, 1x TNC GNSS
- Ethernet: 1x 100M/1G/2.5G/5G Multigigabit (RJ-45 or M12 X-code), PoE+/UPOE in
- SFP port: 1x copper 100M/1G/10G mGig or fibre 1G/10G
- Console: management console port (RJ-45)
- Power input: 802.3at PoE+, 802.3bt UPOE, or 24 to 48 VDC (18 to 60 VDC max range)
- Power draw: 48 W (UPOE or DC, 4x4 all radios), 25 W (PoE+, 2x2 all radios)
- Max conducted transmit power: 24 dBm (2.4 GHz), 30 dBm (5 GHz), 23 dBm (5/6 GHz)
- Memory: 2048 MB DRAM, 1024 MB flash
- Environmental rating: IP66 and IP67
- Operating temperature: -40 to +70 C with solar load and still air
- Storage temperature: -40 to +85 C
- Operating humidity: 0% to 100% (condensing)
- Operating altitude: 4,500 m (15,000 ft)
- Wind resistance: up to 257 km/h (160 mph) sustained
- Dimensions (W x L x H): 29.2 x 26.7 x 7.1 cm
- Weight: 4.2 kg (9.2 lb)

FAQs

Q: Does this access point need a licence?
A: In Wi-Fi mode it uses Cisco Industrial Wireless DNA subscriptions, either IW-DNA-E (Essentials) or IW-DNA-A (Advantage). The URWB licences only apply to the URWB software image.

Q: How is it powered?
A: It accepts PoE+ (802.3at), UPOE (802.3bt) or 24 to 48 VDC. Full 4x4 operation on all radios draws 48 W on UPOE or DC. On PoE+ it draws 25 W and the radios drop to 2x2.

Q: Which controllers manage it?
A: Cisco Catalyst 9800 Series Wireless Controllers, physical or virtual, running IOS XE 17.9.4 or later.

Q: What can I plug into the SFP port?
A: The SFP port accepts copper modules at 100M/1G/10G mGig or fibre modules at 1G/10G.

Q: How do I keep the IP67 rating when cabling it?
A: PG 13.5 glands or M12 converters are required on the Ethernet and power interfaces to maintain the IP67 rating.

Q: What is the difference between this SKU and other IW9167E variants?
A: This is the Rest of the World regulatory domain model with Wi-Fi (AP) software and 8 RF ports with external antennas. Other regulatory domains and the WGB or URWB images are separate variants.
