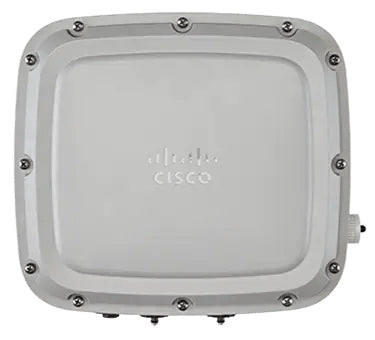

• Cisco C9124AXD-EWC-Z Wi-Fi 6 outdoor AP with white-gray design
1 1

Cisco

Cisco C9124AXD-EWC-Z | Catalyst 9124AX Outdoor Access Point, Directional, EWC

C9124AXD-EWC-Z

Stock Status: Enquire

$3,770.72 inc. GST
$3,427.93 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9124AX is a Wi-Fi 6 (802.11ax) outdoor access point in a rugged IP66/IP67 enclosure. This C9124AXD model has an internal directional antenna with 9 dBi peak gain on both bands, which suits focused sector coverage for service providers and enterprises, and it runs the Embedded Wireless Controller image so small deployments do not need a separate controller. The Z suffix is the regulatory domain covering Australia and New Zealand.

It is a dual-band 4x4:4 MU-MIMO design with four spatial streams on both 2.4 GHz and 5 GHz, supporting channel widths up to 160 MHz and PHY data rates up to 5.38 Gbps. Connectivity is one 100/1000/2500 BASE-T multigigabit uplink, one Gigabit Ethernet SFP and an RJ-45 console port. A Bluetooth 5 (BLE) radio is integrated for asset tracking and analytics. It operates from -40 to 65 C and is rated for sustained winds up to 161 km/h.

Power can come from 802.3af/at/bt PoE, Cisco UPOE or 24-56 V DC. Full 4x4 operation, the 2.5G uplink, the SFP and PoE output need 802.3bt, UPOE or DC. At 802.3at the AP runs 2x2 on both radios with a 1G uplink. Management uses Cisco DNA Software for Wireless subscription licensing through Cisco Smart Accounts. It is compatible with Catalyst 9800 Series Wireless Controllers and supports Cisco Spaces, ISE and SD-Access.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wi-Fi 6 with uplink and downlink OFDMA and MU-MIMO for high-density, predictable performance
- BSS colouring allows more simultaneous transmissions in busy RF environments
- Target Wake Time (TWT) power saving for battery-operated clients
- Cisco RF ASIC provides CleanAir spectrum analysis, wIPS, FastLocate and DFS
- Embedded Wireless Controller capability lets the AP control small deployments without a separate controller
- Multigigabit 2.5G uplink that runs over Cat 5e cabling
- Cisco Trust Anchor technologies including image signing and Secure Boot
- Supports Cisco SD-Access, Cisco Spaces, Cisco ISE and DNA Analytics and Assurance

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Standard: Wi-Fi 6 (802.11ax) dual-band outdoor access point
- Radio configuration: 4x4:4 MU-MIMO with four spatial streams on 2.4 GHz and 5 GHz
- Maximum PHY data rate: 5.38 Gbps
- Channel widths: 20, 40, 80, 80+80 and 160 MHz
- Antenna: internal directional, 9 dBi peak gain on 2.4 GHz and 5 GHz
- Antenna beamwidth 2.4 GHz: 70 degrees azimuth, 65 degrees elevation
- Antenna beamwidth 5 GHz: 55 degrees azimuth, 50 degrees elevation
- Maximum transmit power: 30 dBm (1 W) on 2.4 GHz and 5 GHz
- Uplink: 1x 100/1000/2500 BASE-T (mGig)
- Additional interfaces: 1x Gigabit Ethernet SFP, RJ-45 console port
- Bluetooth: integrated Bluetooth 5 (BLE) radio
- Input power: 802.3af/at/bt PoE, Cisco UPOE or 24-56 V DC
- PoE output: 802.3af PSE on the downlink port when powered by UPOE/802.3bt or DC
- Software: Cisco IOS XE 17.6.2 or later, Embedded Wireless Controller image
- Security: WPA2, WPA3, WPA3-Enterprise 192, 802.1X, 802.11 DFS
- Dimensions (W x L x H): 25.9 x 23.3 x 8.1 cm, without mounting brackets
- Weight: 2.9 kg
- Operating temperature: -40 to 65 C without solar loading, -40 to 55 C with solar loading
- Ingress rating: IP66/IP67
- Wind resistance: 161 km/h sustained, 266 km/h gusts
- Regulatory domain: Z

FAQs

Q: Does this access point need a licence?
A: It is managed with Cisco DNA Software for Wireless subscription licensing, handled through Cisco Smart Accounts and Smart Software Manager. Check the Cisco DNA Software for Wireless tiers to choose the one that suits your deployment.

Q: What power source do I need for full 4x4 performance?
A: Full 4x4 operation, the 2.5G uplink, the SFP port and PoE output need 802.3bt PoE++, Cisco UPOE or a 24-56 V DC supply. On 802.3at the AP runs 2x2 on both radios with a 1G uplink, and on 802.3af the radios are disabled.

Q: Which power injectors are compatible?
A: The compatible Cisco power injectors are AIR-PWRINJ-60RGD1=, AIR-PWRINJ-60RGD2= and AIR-PWRINJ6=. The AIR-PWRINJ6= is an 802.3at injector, so it will limit the AP to 2x2 operation.

Q: Which controllers does it work with?
A: It works with Cisco Catalyst 9800 Series Wireless Controllers. In Embedded Wireless Controller mode the AP itself acts as the controller, running Cisco IOS XE 17.6.2 or later.

Q: What does the Z suffix mean?
A: Z is the regulatory domain, which covers Australia and New Zealand.

Q: How does this model differ from other 9124AX variants?
A: The C9124AXD-EWC-Z has an internal directional antenna, the Embedded Wireless Controller image and the Z regulatory domain. Variants with other antenna types or controller modes differ in those respects.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
