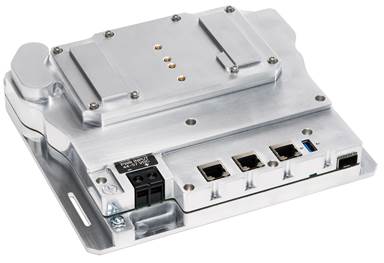

• Silver metallic cisco esw-6300-con-z-k9 industrial control module with multiple ethernet ports and rugged rectangular design
1 1

Cisco

Cisco ESW-6300-CON-Z-K9 | 6300 Embedded Access Point, Wave 2, DC Input, Z Domain

ESW-6300-CON-Z-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 6300 Series Embedded Services Access Point is an enclosure-less 802.11ac Wave 2 industrial access point designed to be built into heavy-industry and smart-city assets such as light poles, industrial equipment and OEM or integrator hardware. It provides mesh, bridge or FlexConnect Wi-Fi where a conventional enclosed access point is not practical. This SKU is the DC input version for the Z regulatory domain.

The dual-band 2x2 MIMO radios support two spatial streams with MU-MIMO and SU-MIMO, delivering PHY data rates up to 867 Mbps on 5 GHz with 80 MHz channels. Wired connectivity includes one 10/100/1000BASE-T PoE+ input, two 10/100/1000BASE-T PoE output ports delivering 35.3 W in total and up to 30 W per port, plus an SFP port for fibre or electrical backhaul. The DC input accepts 44-57 VDC, and the unit is rated for operation from -40 to 85 C with DIN rail mounting. Uplinks can be Ethernet, SFP or wireless mesh.

Four MMCX female RF ports connect external antennas, including dual-band models such as AIR-ANT2547V-N, AIR-ANT2568VG-N, AIR-ANT2588P3M-N and AIR-ANT2513P4M-N. The access point can operate with a wireless LAN controller, in Cisco Mobility Express mode for up to 50 access points, or as a static or mobile workgroup bridge.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Enclosure-less design embeds into light poles and other hardware without affecting aesthetics
- 802.11ac Wave 2 radio with MU-MIMO, transmit beamforming and up to 867 Mbps data rates
- SFP port for fibre-based backhaul to remote locations
- Dual PoE-out ports to power and backhaul IoT assets such as IP cameras and sensors
- Deploys as a traditional access point, in mesh or bridge mode, FlexConnect, Flex+Bridge or Cisco Mobility Express for up to 50 access points
- Operates as a static or mobile Workgroup Bridge (WGB)
- Supports Cisco DNA Assurance and Cisco Identity Services Engine (ISE)
- Security with 802.11i, WPA2, 802.1X, X.509 certificates, MAC filtering, IPsec and VPN pass-through

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wireless standard: 802.11ac Wave 2, dual-band 2.4 GHz and 5 GHz
- Radio: 2x2 MIMO with 2 spatial streams, MU-MIMO and SU-MIMO
- Maximum PHY data rate: 867 Mbps (80 MHz, 5 GHz)
- Channel widths: 20/40/80 MHz
- Regulatory domain: Z
- Z domain 2.4 GHz band: 2.412 to 2.462 GHz (11 channels)
- Z domain 5 GHz bands: 5.500 to 5.700 GHz (8 channels, excludes 5.600 to 5.640 GHz) and 5.745 to 5.825 GHz (5 channels)
- Maximum conducted transmit power: up to 27 dBm with 2 antennas
- Ethernet: 1 x 10/100/1000BASE-T PoE+ (802.3at) / Cisco UPOE in
- PoE out: 2 x 10/100/1000BASE-T (802.3af / 802.3at)
- PoE output budget: 35.3 W total, 30 W maximum per port
- Fibre/electrical uplink: 1 x SFP port
- Management: RJ-45 console port
- USB: 1 x USB 3.0 port
- Antenna connectors: 4 x MMCX female
- DC power input: 44-57 VDC
- Power consumption: 19.7 W for the access point itself, 56.2 W maximum fully loaded on DC
- Dimensions (H x W x L): 216 x 192 x 48 mm (8.5 x 7.55 x 1.9 in)
- Weight: approx. 1.4 kg (3.1 lbs)
- Operating temperature: -40 to 85 C
- Storage temperature: -40 to 85 C
- Operating humidity: 10% to 90% non-condensing
- Mounting: DIN rail

FAQs

Q: Does this access point need a separate licence or subscription?
A: No separate licence or subscription is required for standalone operation. It can run with a wireless LAN controller or in Cisco Mobility Express mode, which supports up to 50 access points without a physical controller.

Q: What power does the DC input version require?
A: It takes a 44-57 VDC input. For 802.3at Type 2 PoE output the DC input must be 51 V or higher, and for 802.3af PoE output it must be 45 V or higher. Total consumption is up to 56.2 W when fully loaded.

Q: Which antennas can be connected?
A: The four MMCX female RF ports accept external antennas. Dual-band options include AIR-ANT2547V-N, AIR-ANT2568VG-N, AIR-ANT2588P3M-N and AIR-ANT2513P4M-N, while AIR-ANT2450V-N and AIR-ANT5180V-N are single-band options.

Q: How does this SKU differ from other ESW6300 variants?
A: ESW-6300-CON-Z-K9 is the DC input version for the Z regulatory domain. Other variants differ in regulatory domain, so check country approval for the Z domain before deployment.

Q: How can it be mounted and powered in the field?
A: It mounts on DIN rail and is rated for -40 to 85 C operation. It can be powered from the DC input, and the two PoE-out ports can in turn power attached devices such as IP cameras and sensors.
