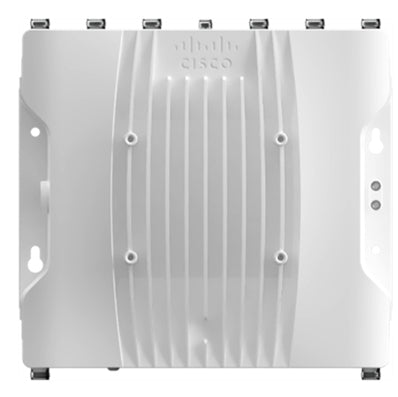

  • White cisco iw9167eh-row-hz catalyst wi-fi 6e hazardous location access point with vertical ridges and mounting holes

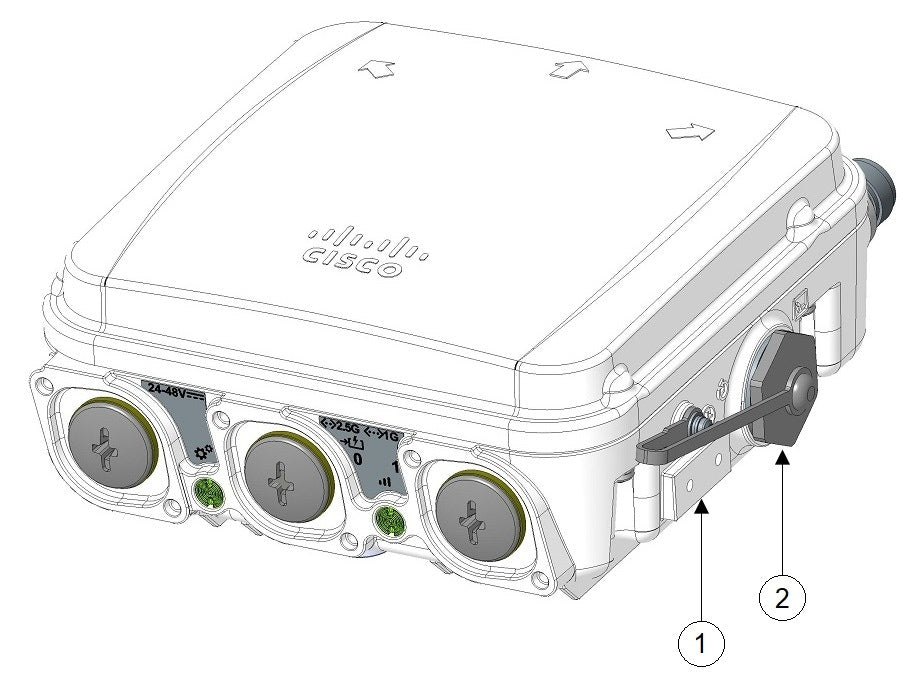

  • Back side of white cisco iw9167eh-row-hz catalyst iw9167 wi-fi 6e rugged network housing with three circular ports and handle
1 3

Cisco

Cisco IW9167EH-ROW-HZ | Catalyst IW9167 Wi-Fi 6E Hazardous Location Access Point, 8 N-Type RF Ports, Tri-Band

IW9167EH-ROW-HZ

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Catalyst IW9167EH-ROW-HZ is a heavy-duty Wi-Fi 6E access point certified for hazardous locations with UL, ATEX, and IECEx ratings. Featuring three 4x4 tri-band radios covering 2.4 GHz, 5 GHz, and 6 GHz, eight N-type external antenna connectors, and IP67-rated construction, it delivers mission-critical wireless connectivity in explosive environments. This versatile platform can operate in Wi-Fi 6E, URWB, or WGB modes and is designed for extreme temperatures and industrial deployments.

Features

Wi-Fi 6E tri-band support with access to 2.4 GHz, 5 GHz, and 6 GHz spectrum
- Hazardous location certifications: UL Class I Division 2, ATEX Zone 2, IECEx for explosive environments
- Three independent 4x4 MIMO radios with up to 12 spatial streams
- Built-in GNSS antenna for AFC (Automated Frequency Coordination) compliance and location reporting
- IP67-rated heavy-duty construction withstands water, dust, extreme temperatures, shock, and vibration
- Multi-Gigabit Ethernet port supporting 100M/1G/2.5G/5G speeds with PoE input
- 10 Gbps SFP port for fiber uplink connectivity
- Ultra-Reliable Wireless Backhaul (URWB) with MultiPath Operations (MPO) for 99.995% availability
- Workgroup Bridge (WGB) mode for connecting wired devices over wireless
- Bluetooth Low Energy (BLE) radio for IoT, asset tracking, and location services
- Extended temperature operation from -50°C to +70°C for harsh industrial environments
- Cisco Trust Anchor technologies for supply chain security and hardware authenticity
- Support for WPA3, 802.11w Protected Management Frames, and Advanced Encryption Standards
- Eight N-type antenna ports with support for Self-Identifying Antennas (SIA) on three ports
- Integrated mounting flanges and DIN rail compatibility for flexible installation
- Compatible with Cisco DNA Center and IoT Operations Dashboard for centralized management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Wi-Fi Standard: IEEE 802.11ax (Wi-Fi 6E), 802.11a/b/g/n/ac compatible
- Radio Configuration: Three 4x4 MIMO radios (2.4 GHz, 5 GHz, 5/6 GHz tri-band)
- Maximum Data Rate: 7.8 Gbps aggregate
- Antenna Connectors: 8x N-type female RF ports, 1x TNC GNSS
- Network Interfaces: 1x Multi-Gigabit RJ-45 PoE (100M/1G/2.5G/5G), 1x SFP port up to 10G
- Power: 802.3at (PoE+), 802.3bt (PoE++), Cisco UPoE, or DC power input
- Environmental Rating: IP66/IP67, Class I Division 2, ATEX Zone 2, IECEx
- Operating Temperature: -40°C to +70°C with solar load, cold start at -40°C, extended operation to -50°C
- Bluetooth: Bluetooth 5 Low Energy for IoT applications
- Management: Cisco Catalyst 9800 Series Wireless Controller required
- Operating Modes: Wi-Fi 6E Access Point, URWB (Ultra-Reliable Wireless Backhaul), or WGB (Workgroup Bridge)
- Dimensions: Heavy-duty cast aluminum enclosure with integrated mounting flanges
- Certifications: UL, ATEX, IECEx for hazardous location deployment

FAQs

Q: What is the difference between the IW9167EH-ROW-HZ and standard IW9167E models?
A: The IW9167EH-ROW-HZ variant is certified for installation in hazardous locations with UL Class I Division 2, ATEX Zone 2, and IECEx ratings. It features hardened PG25 ports and meets explosive environment safety standards, allowing deployment in areas with flammable gases or vapors where standard access points cannot be used.

Q: Does this access point require external antennas?
A: Yes, the IW9167EH model has eight N-type female RF connectors and requires compatible external antennas. For hazardous location deployments, antennas must be passive, IP66/67 rated, and compliant with IEC 60079-0. The access point supports various antenna configurations including omnidirectional, directional, and self-identifying antennas across 2.4 GHz, 5 GHz, and 6 GHz bands.

Q: What does ROW domain mean in the model number?
A: ROW stands for Rest of World regulatory domain, covering countries not included in specific regional domains like A, B, E, F, Q, or Z. Customers are responsible for verifying approval and compliance for use in their individual countries, as regulatory requirements vary globally for wireless equipment.

Q: Can this access point operate in both Wi-Fi and URWB modes?
A: Yes, the IW9167EH is a multi-mode platform that can operate as a Wi-Fi 6E access point, Ultra-Reliable Wireless Backhaul (URWB) for point-to-point connectivity, or Workgroup Bridge (WGB). The operating mode is software-selectable, allowing you to reconfigure the device without hardware changes to suit different applications such as client access or wireless backhaul.

Q: What controller is required to manage this access point?
A: The IW9167EH requires a Cisco Catalyst 9800 Series Wireless Controller for configuration and management. The access point uses CAPWAP (Control and Provisioning of Wireless Access Points) protocol to join the controller and cannot function standalone. DHCP, DNS, or IP subnet broadcast methods can be used for controller discovery during deployment.
