• Cisco IW-6300H-DC-Z-K9 industrial Wi-Fi 5 AP with IP67 rugged design
1 1

Cisco

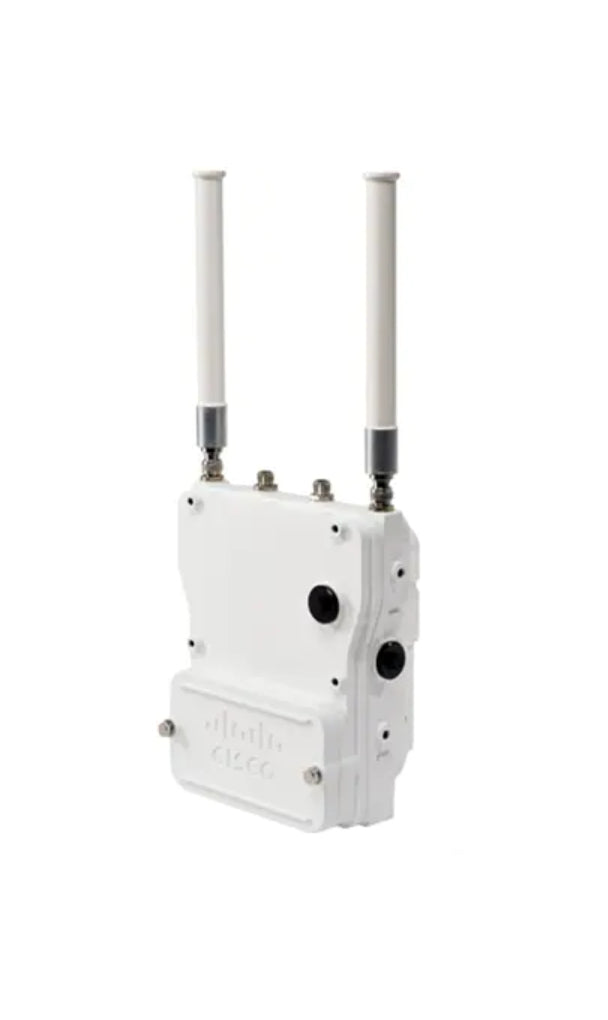

Cisco IW-6300H-DC-Z-K9 | Catalyst IW6300 Industrial Access Point, DC, HazLoc

IW-6300H-DC-Z-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IW6300 Heavy Duty is a ruggedised industrial 802.11ac Wave 2 access point with dual-band 2x2:2 MIMO for hazardous locations such as mines, refineries and factory floors. This DC-input model accepts 44 to 57 VDC, is HazLoc certified and is built for the Z regulatory domain. It supports client access, bridging and mesh, with SFP and RJ45 uplinks and dual PoE out ports for powering connected IoT devices.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual PoE+ out for powering IoT sensors or peripherals
- Multiple power-in sources and a variety of uplink options
- Supports centralised, FlexConnect and mesh modes
- Client access, bridging and mesh wireless connectivity
- Built for hazardous industrial environments (Class 1 Division 2 / HazLoc)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 802.11ac Wave 2, dual radio (2.4 GHz and 5 GHz), 2x2:2 MIMO
- Four Type N antenna connectors
- DC power input: 44 to 57 VDC, 1.2 A
- Ethernet: 1 x 100/1000M SFP (WAN), 1 x 10/100/1000M RJ45 (WAN, UPoE/PoE+ in), 2 x 10/100/1000M RJ45 (LAN, 802.3at/802.3af PoE out)
- Dimensions: 9.7 x 11 x 3.8 in (24.2 x 28 x 9.65 cm)
- Weight: 9.8 lbs (4.45 kg)
- Operating temperature: -40 to 75°C without solar loading, still air
- Environmental ratings: UL 50E Type 4X, IP66 and IP67
- Hazardous location certified (HazLoc)
- 100 MPH sustained wind resistance
- Z regulatory domain

FAQs

Q: What power input does the IW-6300H-DC-Z-K9 use?
A: This model uses a DC power input of 44 to 57 VDC at 1.2 A. It can also be powered through its UPoE/PoE+ capable RJ45 WAN port.

Q: Can it power other devices?
A: Yes. The two LAN RJ45 ports provide 802.3at/802.3af PoE out, which suits IoT sensors and other peripherals.

Q: What wireless standard and radios does it support?
A: It is an 802.11ac Wave 2 access point with dual radios (2.4 GHz and 5 GHz) and 2x2:2 MIMO, with four Type N antenna connectors.

Q: Is it suitable for outdoor or hazardous locations?
A: Yes. It is HazLoc certified and rated UL 50E Type 4X, IP66 and IP67, with an operating range of -40 to 75°C without solar loading.

Q: What does the Z in the SKU mean?
A: Z denotes the Z regulatory domain, which this unit is built for. Confirm the regulatory domain suits your deployment region before purchase.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
