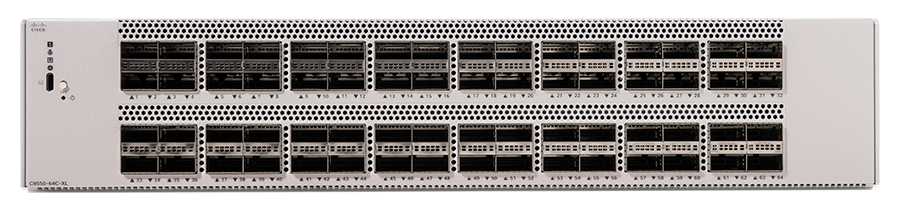

• Silver cisco c9550-64c-xl network switch with 64 ports and ventilation slots for high-speed 100 40g connectivity
1 1

Cisco

Cisco C9550-64C-XL | Catalyst 9550 64-Port 100/40G QSFP28 Switch, 2M Routes

C9550-64C-XL

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9550 C9550-64C-XL is a 2RU fixed core and aggregation switch built for the edge, core and distribution layers of very large enterprise campus networks. It also suits fabric border and aggregation roles in large SD-Access fabrics, campus gateway deployments that need high route scale, and consolidation of multiple 100/40G QSFP access switches into a single backbone.

It provides 64 x 100/40G QSFP28 ports on a single Cisco Silicon One K100 ASIC, with up to 6.4 Tbps of full-duplex switching capacity and a forwarding rate of up to 3.9 Bpps. The XL variant scales to 2,000,000 IPv4 routes and 1,000,000 IPv6 routes, with 128,000 MAC addresses and an 8GB HBM plus 64MB SMS packet buffer. An AMD x86 8-core CPU, 32 GB of DRAM and up to 960 GB of SSD storage support container-based application hosting, with 2 x 10G AppGig ports.

The chassis has two power supply bays for 1+1 redundancy using C9K-PWR-1100WAC power supplies, and three field-replaceable fan modules (C9550-FAN-2U-R front-to-back or C9550-FAN-2U-F back-to-front). It requires IOS XE Release 26.2.1 or later and uses Cisco unified licensing managed through Smart Accounts.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco StackWise Virtual with SSO and front-side stacking on all ports
- In-Service Software Upgrades (ISSU), Software Maintenance Upgrades and hot patching
- Hardware ACLs, VXLAN, Cisco TrustSec segmentation and line-rate MACsec
- Software-Defined Access (SD-Access) and BGP EVPN support
- Flexible NetFlow, SPAN/ERSPAN and IPDT/SISF visibility
- NETCONF/RESTCONF/YANG programmability, streaming telemetry and on-box Python
- Container-based application hosting with x86 CPU and local SSD
- Redundant Titanium-rated power supplies and N+1 fan modules with selectable airflow

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Ports: 64 x 100/40G QSFP28
- ASIC: 1x Cisco Silicon One K100
- System switching capacity: up to 6.4 Tbps
- Forwarding rate: up to 3.9 Bpps
- CPU: AMD x86 3.3 GHz 8-core
- DRAM: 32 GB
- Flash: 18 GB
- SSD: up to 960 GB
- AppGig ports: 2 x 10G
- Packet buffer: 8GB HBM + 64MB SMS
- IPv4 routes: 2,000,000
- IPv6 routes: 1,000,000
- MAC addresses: 128,000
- VLAN IDs: 4094
- Jumbo frames: 9216 bytes
- Form factor: 2RU
- Dimensions (H x W x D): 8.81 x 44.45 x 45.32 cm
- Weight with 2 PSUs and fans: 16.1 kg
- Power supply: C9K-PWR-1100WAC, 1100W, 90-264 VAC
- Operating temperature: -5 to +45 C with C9550-FAN-2U-R fans
- MTBF: 211,880 hours
- Minimum software: IOS XE Release 26.2.1

FAQs

Q: What licensing does the C9550-64C-XL use?
A: It uses Cisco unified licensing through Cisco Networking Subscription or an Enterprise Agreement, managed via Cisco Smart Accounts and Smart Licensing.

Q: What power supply does it use?
A: It uses the C9K-PWR-1100WAC, an 1100W AC supply accepting 90-264 VAC at 47-63 Hz. The chassis has two power supply bays for 1+1 redundancy.

Q: Which fan modules are compatible?
A: It uses three C9550-FAN-2U-R (front-to-back) or C9550-FAN-2U-F (back-to-front) fan modules. All three must be the same type.

Q: What software release does it require?
A: It requires Cisco IOS XE Release 26.2.1 or later.

Q: How does the XL variant differ from other C9550 SKUs?
A: The XL variant provides the larger route scale of 2,000,000 IPv4 routes and 1,000,000 IPv6 routes on the 64 x 100/40G QSFP28, 2RU platform.
