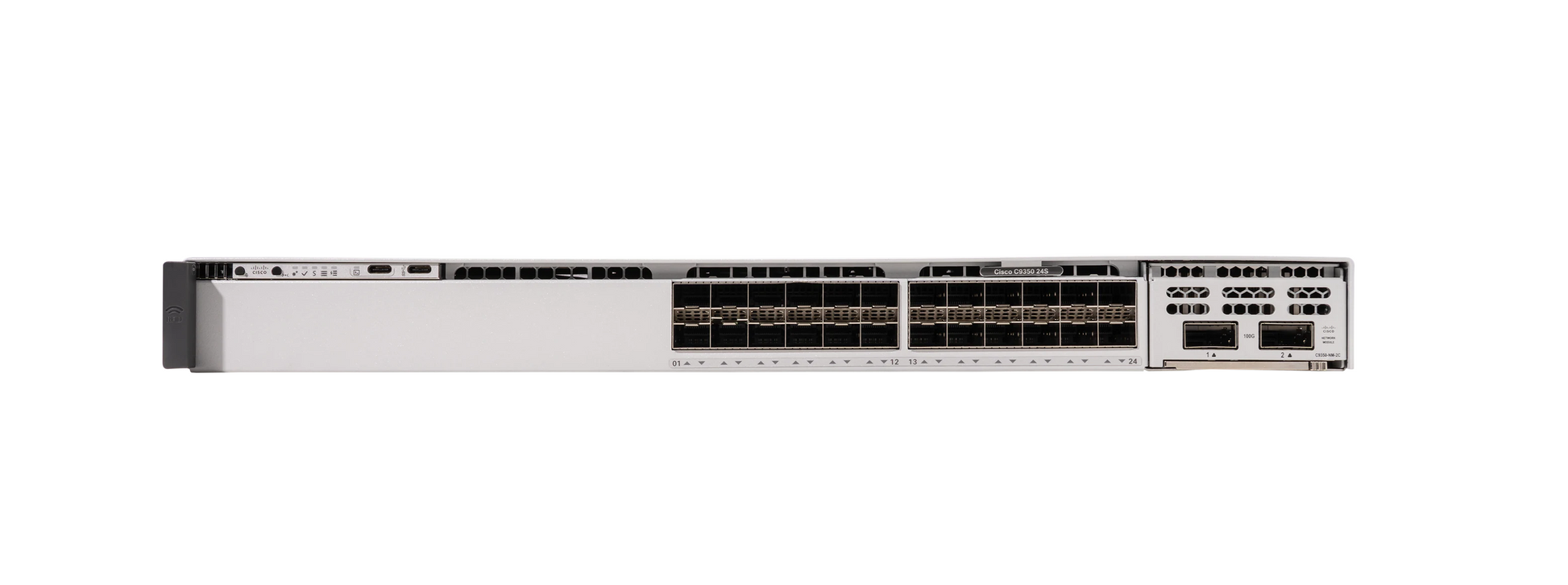

• Silver cisco c9350-24s catalyst 9500 series network switch with 24 1g fiber ethernet ports and modular uplinks
1 1

Cisco

Cisco C9350-24S | Catalyst 9350 24-Port 1G SFP Switch, 500W AC PSU

C9350-24S

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9350 is a fixed, stackable access switch built around 24 x 1G SFP downlink ports. It runs Cisco IOS XE on a Silicon One A100/L ASIC and suits fibre-based access in campus distribution closets, branch offices, industrial environments and sites that need long-distance fibre or immunity to electromagnetic interference in a compact form factor.

This SKU is the 24 x 1G SFP model with no PoE, supplied with a 500W AC power supply (PWR-C2-500WAC). It has a modular uplink network module slot supporting up to 200G, a 448 Gbps bandwidth specification and a 333.312 Mpps forwarding rate. StackWise-1.6T stacking joins up to 8 members at 1.6 Tbps, lifting switching capacity to 2048 Gbps, and StackPower+ shares power across the stack. There are 3 power supply bays and 3 hot-swappable fan-tray bays with N+1 redundancy.

Uplink modules supported on this SKU are C9350-NM-2C, C9350-NM-8Y and C9350-NM-8M. It stacks with other C9350 models at the same licence level using STACK-T1A-50CM, 1M or 3M cables, and requires Cisco IOS XE Release 26.1.2 or later. It can be managed through Cisco Catalyst Center or the Meraki dashboard.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with NETCONF, RESTCONF and YANG model-driven programmability, streaming telemetry and on-box Python scripting
- Container-based application hosting on x86 CPU with DDR5 memory and local SSD
- MACsec encryption, TrustSec and VXLAN segmentation, Secure Boot, image signing and Trust Anchor module
- Post-quantum cryptography support from IOS XE 26.2.1
- Hardware Flexible NetFlow, NBAR application recognition and SPAN/ERSPAN
- In-service hot patching and xFSU software upgrades
- Field-replaceable hot-swappable power supplies and fans
- Consistent management across cloud, on-premises and hybrid modes
- ENERGY STAR certified

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Downlink ports: 24 x 1G SFP
- Uplinks: modular network module slot, up to 200G (C9350-NM-2C, C9350-NM-8Y, C9350-NM-8M)
- PoE: none
- ASIC: 1 x Silicon One A100/L
- Bandwidth specification: 448 Gbps
- Switching capacity with stacking: 2048 Gbps
- Forwarding rate: 333.312 Mpps
- Forwarding rate with stacking: 1523.712 Mpps
- Stacking: StackWise-1.6T, up to 8 members, 1.6 Tbps stack bandwidth
- Power sharing: StackPower+ (55V)
- Default power supply: PWR-C2-500WAC (500W AC)
- Power supply bays: 3 (minimum 1 PSU)
- Fan-tray bays: 3, N+1 redundancy, front-to-back airflow
- DRAM: 16 GB
- Flash: 18 GB
- SSD: up to 240 GB via USB 3.0 SSD slot
- Packet buffer: up to 36 MB
- MAC addresses: up to 64,000
- IPv4 routes: up to 192,000, IPv6 routes: up to 96,000
- VLAN IDs: 4094 (up to 4000 active)
- Jumbo frames: 9216 bytes
- Management ports: RJ-45 10/100/1000 MGMT, RJ-45 console, USB Type-C console, USB Type-C host
- Dimensions with 500W PSU (H x W x D): 4.4 x 44.5 x 45.6 cm
- Weight with default power supply: 6.1 kg
- Operating temperature: -5 to 45 C up to 6000 ft, -5 to 40 C up to 10,000 ft
- 500W PSU input: 90-264V AC, 47-63 Hz, 92% efficiency
- MTBF: 339,480 hours

FAQs

Q: Does this switch provide PoE?
A: No. The C9350-24S has 24 x 1G SFP ports and no PoE. It is powered by its 500W AC power supply, PWR-C2-500WAC, and the power supply does not feed connected devices.

Q: What licensing does the Catalyst 9350 use?
A: The Catalyst 9350 uses Cisco unified licensing, either the Cisco Networking Subscription or an Enterprise Agreement, managed through Cisco Smart Accounts and Smart Software Manager.

Q: Which uplink modules work with the C9350-24S?
A: The C9350-NM-2C, C9350-NM-8Y and C9350-NM-8M network modules are supported, giving uplinks of up to 200G.

Q: How do I stack it?
A: It stacks with other C9350 models at the same licence level over StackWise-1.6T using STACK-T1A-50CM, 1M or 3M cables, with up to 8 members. StackPower uses CAB-SPWR-35CM or 100CM cables. Catalyst 9300 stacking and StackPower cables are not compatible.

Q: What software version does it need?
A: It requires Cisco IOS XE Release 26.1.2 or later.

Q: Can I add power supply redundancy?
A: Yes. The chassis has 3 power supply bays and supports up to three PSUs in 500W, 850W or 1600W options, in combined or N+1 modes.
