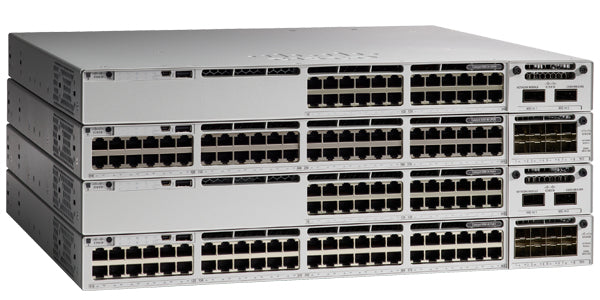

• Cisco Catalyst 9300X-48TX-M switch stack with 48 mGig ports
1 1

Meraki

Meraki C9300X-48TX-M | Catalyst 9300X 48-Port Multigigabit Switch, Modular

C9300X-48TX-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Description

The Cisco Meraki C9300X-48TX-M is a high-performance enterprise access switch with 48 multigigabit ports supporting 100M/1G/2.5G/5G/10G speeds. Managed through the Meraki cloud dashboard, it delivers 2000 Gbps switching capacity and supports modular 40G/100G uplinks for future scalability. Ideal for demanding enterprise environments deploying Wi-Fi 6/6E access points and requiring simplified cloud-based management with powerful Layer 3 switching capabilities.

Features

48 x 10G Multigigabit (mGig) ports with auto-negotiation at 100M/1G/2.5G/5G/10G speeds
- Modular uplink architecture supporting 10G/25G or 40G/100G QSFP modules (sold separately)
- Data-only design (no PoE) for maximum port density and performance
- 2000 Gbps switching capacity (standalone), scalable to 3000 Gbps when stacked
- Forwarding rate: 1488 Mpps (standalone), 2232 Mpps (stacked)
- Cisco UADP 2.0sec ASIC with hardware-based 100G IPsec encryption
- 1 Tbps StackWise stacking (up to 8 switches), backward compatible with 480 Gbps stacks
- StackPower support for resilient power distribution across stacked switches
- Meraki cloud dashboard management (license mandatory, sold separately)
- Layer 3 switching with advanced routing protocols (OSPF, EIGRP, BGP, PIM, VRRP)
- IPv4 and IPv6 routing with 39,000 / 19,500 routing entries respectively
- 16 GB DRAM, 16 GB Flash for enhanced application hosting
- Enhanced security: 802.1X, MACsec, IPsec, TrustSec, Dynamic ARP Inspection
- Hardware-based Flexible NetFlow (FNF) with up to 64,000 flow entries
- QoS and ACL hardware acceleration with 4,000 QoS entries and 8,000 ACL entries
- Virtual stacking for unified management of thousands of switch ports
- Category-6a cabling recommended for reliable multigigabit operations
- Redundant fan and power supply options for high availability
- USB 3.0 SSD pluggable storage slot (up to 240 GB) for application hosting
- Adaptive Policy support (Advanced license required) for scalable network segmentation
- ThousandEyes integration for end-to-end network visibility (requires Cisco DNA Advantage)
- MTBF: 206,480 hours

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48 x Multigigabit RJ45 ports (100M/1G/2.5G/5G/10GBASE-T)
- Data-only (no PoE)
- Switching capacity: 2000 Gbps (standalone), 3000 Gbps (stacked)
- Forwarding rate: 1488 Mpps (standalone), 2232 Mpps (stacked)
- Modular uplink slots: 2 or 4 slots supporting 10G/25G or 40G/100G QSFP modules (sold separately)
- Stacking: Up to 8 switches with 1 Tbps stacking bandwidth (backward compatible to 480 Gbps)
- Memory: 16 GB DRAM, 16 GB Flash
- Layer 3 switching with full routing capabilities
- Management: Meraki cloud dashboard (license required)
- IPv4 routing entries: 39,000 direct, 15,000 longest prefix match
- IPv6 routing entries: 19,500 direct, 7,500 longest prefix match
- VLAN support: 4094 VLANs, 1000 SVIs
- Packet buffer: 16 MB
- Power supply: 715W AC power supply included
- Dimensions: 1.73 x 17.5 x 22.03 in (44 x 445 x 559 mm)
- Rack-mountable 1U form factor

FAQs

Q: What speeds do the multigigabit ports support?
A: All 48 RJ45 ports are multigigabit-capable and auto-negotiate 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, or 10 Gbps over standard copper cabling. This makes them ideal for connecting Wi-Fi 6/6E access points and high-performance endpoints without requiring fiber infrastructure.

Q: Does this model include Power over Ethernet (PoE)?
A: No, the C9300X-48TX-M is a data-only switch with no PoE capability. For UPoE+ (90W per port) requirements, consider the C9300X-48HX-M or C9300X-48HXN-M models.

Q: What uplink modules are supported?
A: The switch includes modular uplink slots that accept optional network modules supporting 10G/25G SFP28 or 40G/100G QSFP uplinks. Modules are sold separately and enable flexible connectivity to data center aggregation switches or core infrastructure.

Q: How is the C9300X-48TX-M managed?
A: This switch is managed exclusively through the Cisco Meraki cloud dashboard. A Meraki license (Enterprise or Advanced tier) is mandatory for operation and must be purchased separately. The dashboard provides centralized, cloud-based configuration, monitoring, and troubleshooting from anywhere.

Q: Can I stack multiple C9300X-M switches?
A: Yes, up to 8 Catalyst 9300X-M switches can be physically stacked using StackWise cables (sold separately) to form a single logical unit with 1 Tbps of stacking bandwidth. The stack is backward compatible with 480 Gbps StackWise technology for mixed deployments.
