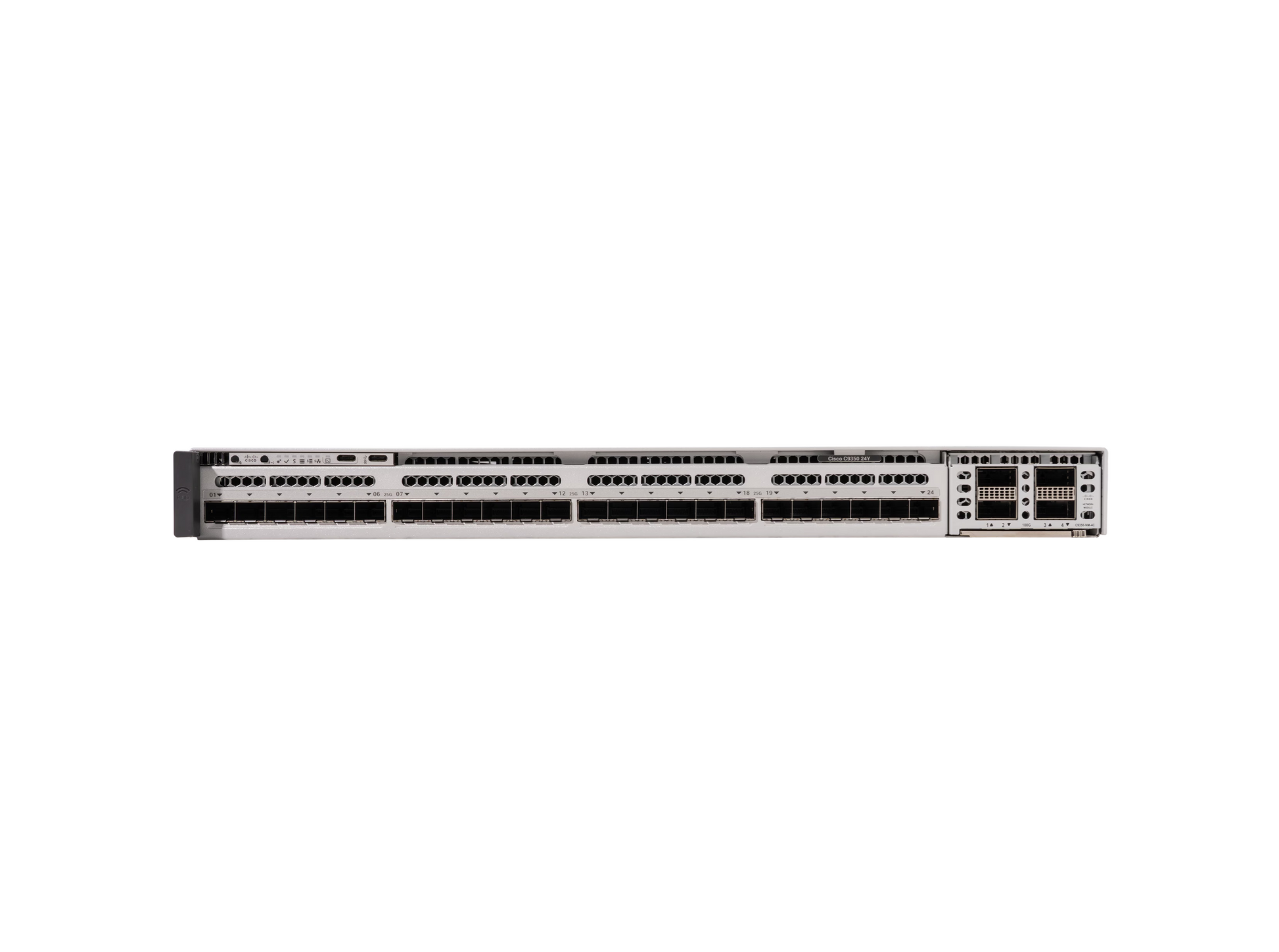

Cisco C9350-24Y | Catalyst 9350 24-Port 25G SFP28 Fibre Switch, 400G

SKU:C9350-24Y

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9350 is a fibre access and aggregation switch built for campus distribution and data-intensive access deployments, including mixed copper and fibre environments. It is based on the Cisco Silicon One A100/L ASIC and is suited to networks that are moving from 10G to 25G at the edge.

The C9350-24Y provides 24 multirate SFP28 ports that run at 1G, 10G or 25G, with modular uplinks of up to 400G. Switching throughput is 1.3 Tbps with a forwarding rate of 1.5 Bpps. Layer 2 and Layer 3 operation covers IPv4 and IPv6 routing, up to 256K IPv4 routes and 64K MAC addresses. StackWise-1.6T stacking allows multiple C9350 switches to be managed as one unit, and redundant power supplies are supported.

Security features include secure boot, image signing, MACsec encryption and post-quantum cryptography support. Management options are CLI, web GUI, NETCONF, RESTCONF, YANG, Cisco Catalyst Center and the Cisco Meraki Dashboard.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco Silicon One A100/L ASIC with 1.3 Tbps throughput and 1.5 Bpps forwarding
- Multirate 1G/10G/25G SFP28 fibre ports for gradual speed upgrades
- Modular uplinks of up to 400G
- StackWise-1.6T stacking for unified management of mixed copper and fibre environments
- MACsec encryption, secure boot and image signing
- Post-quantum cryptography support
- Cisco Hypershield compatibility
- Redundant power supply support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24 x 1G/10G/25G SFP28 (multirate)
- Uplink bandwidth: up to 400G (modular)
- ASIC: Cisco Silicon One A100/L
- Throughput: 1.3 Tbps
- Forwarding rate: 1.5 Bpps
- Stacking: StackWise-1.6T
- Routing: IPv4 and IPv6 Layer 2/3
- IPv4 routes: up to 256K
- MAC addresses: 64K
- Power: redundant power supply support
- Management: CLI, web GUI, NETCONF, RESTCONF, YANG, Cisco Catalyst Center, Cisco Meraki Dashboard
- Security: secure boot, image signing, MACsec, post-quantum cryptography support

FAQs

Q: Which port speeds do the 24 downlink ports support?
A: All 24 downlink ports are multirate SFP28 ports that operate at 1G, 10G or 25G, depending on the optic or cable fitted.

Q: Can the C9350-24Y be stacked?
A: Yes. It supports StackWise-1.6T stacking with other C9350 switches, which lets the stack be managed as a single unit.

Q: How can this switch be managed?
A: It can be managed by CLI, web GUI, NETCONF, RESTCONF and YANG models, or centrally through Cisco Catalyst Center or the Cisco Meraki Dashboard.

Q: Does it support redundant power?
A: Yes. The C9350 platform supports redundant power supplies, so a second supply can be fitted to maintain operation if one fails.

Q: What uplink speeds are available?
A: The switch has modular uplinks that provide up to 400G of bandwidth, for connection to a distribution or core layer.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
