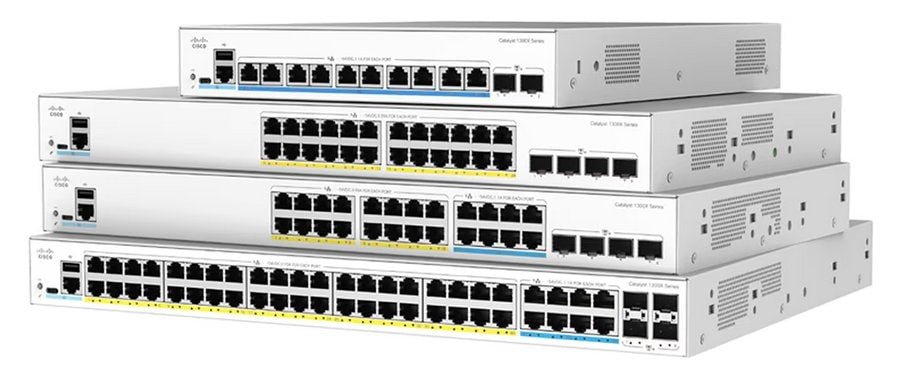

• Stack of four white cisco catalyst 9200 series network switches with black ethernet ports and yellow indicator lights
1 1

Cisco

Cisco C1300X-10NU-2X | Catalyst 1300X 10-Port 5G UPoE Switch, 385W, 2x 10G SFP28

C1300X-10NU-2X

Stock Status: Enquire

$1,608.09 AUD
$1,608.09 AUD
$1,608.09 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst 1300X-10NU-2X is a Layer 3 managed switch designed for small to medium-sized businesses and enterprise branch offices. Featuring 10 multi-gigabit PoE++ ports with 385W power budget, it supports high-bandwidth devices such as Wi-Fi 6 access points, advanced IP cameras, and VoIP phones. With 2x 10G SFP28 uplinks that support 25G stacking, 140 Gbps switching capacity, and up to 8-switch stacking capability, it delivers scalable performance with enterprise-grade security and simplified management through the Cisco Business Dashboard.

Features

Layer 3 static routing and dynamic routing (OSPFv2, OSPFv3)
- Multi-gigabit Ethernet (mGig) supporting 1G/2.5G/5G auto-negotiation
- Front panel stacking up to 8 switches with 25G/10G bandwidth
- Hardware failover and redundancy for high availability
- Advanced security: IEEE 802.1X authentication, port security, ACLs
- Dynamic ARP inspection, IP Source Guard, DHCP snooping
- IGMP v1/v2/v3 snooping for multicast traffic optimization (4000 groups)
- VLAN support (IEEE 802.1Q) for network segmentation
- Quality of Service (QoS) with IEEE 802.1p priority queuing
- Spanning Tree Protocol (STP, RSTP, MSTP) for loop prevention
- Link Aggregation (LACP) across stack units
- IPv4 and IPv6 dual-stack support
- Energy Efficient Ethernet (IEEE 802.3az)
- Dual firmware images for zero-downtime upgrades
- Loopback detection for additional network protection
- Fanless or low-noise operation suitable for office environments
- Managed via Cisco Business Dashboard and mobile app

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

10 x 1/2.5/5G Base-T multi-gigabit ports with PoE++ (802.3bt)
- PoE power budget: 385W total, up to 60W per port (4-pair)
- 2 x 10G SFP28 uplink/stacking ports (25G capable for stacking)
- Switching capacity: 140 Gbps
- Forwarding rate: 104.16 Mpps
- MAC address table: 32,000 entries
- Layer 3 features: Static routing, OSPFv2, OSPFv3
- Stacking: Up to 8 switches (25G/10G front panel stacking)
- Management: Cisco Business Dashboard, CLI, SNMP, Web UI
- Supported standards: IEEE 802.3, 802.3u, 802.3ab, 802.3bz (mGig), 802.3af/at/bt (PoE), 802.1X, 802.1Q, 802.1p, 802.1D/w/s
- Power consumption: 453.2W maximum
- Rack-mountable form factor
- Operating temperature: 0°C to 45°C
- Certifications: UL, CSA, CE, FCC Class A

FAQs

Q: What devices can the C1300X-10NU-2X power with its PoE budget?
A: With 385W total PoE++ budget and up to 60W per port via 4-pair 802.3bt, it can power high-demand devices such as Wi-Fi 6 or Wi-Fi 6E access points, advanced PTZ IP cameras, video conferencing systems, and VoIP phones simultaneously.

Q: What is the difference between the C1300 and C1300X series?
A: The C1300X series supports physical front panel stacking (up to 8 switches), Layer 3 dynamic routing including OSPF, 25G stacking speeds, and multi-gigabit Ethernet. The standard C1300 series does not offer these advanced features.

Q: Can the SFP28 ports be used for both uplinks and stacking?
A: Yes, the 2 x SFP28 ports support dual functionality: they can serve as 10G fiber uplinks with compatible transceivers or as 25G/10G stacking ports when using Cisco stacking modules.

Q: Does this switch require a license for full functionality?
A: The C1300X-10NU-2X includes all Layer 3 features, PoE++, and stacking capabilities without requiring additional licenses, offering full functionality out of the box.

Q: Is the C1300X-10NU-2X compatible with existing Cat5e/Cat6 cabling?
A: Yes, the multi-gigabit Ethernet ports support IEEE 802.3bz, allowing 2.5G and 5G speeds over existing Cat5e or Cat6 cabling, making it ideal for upgrading infrastructure without rewiring.
