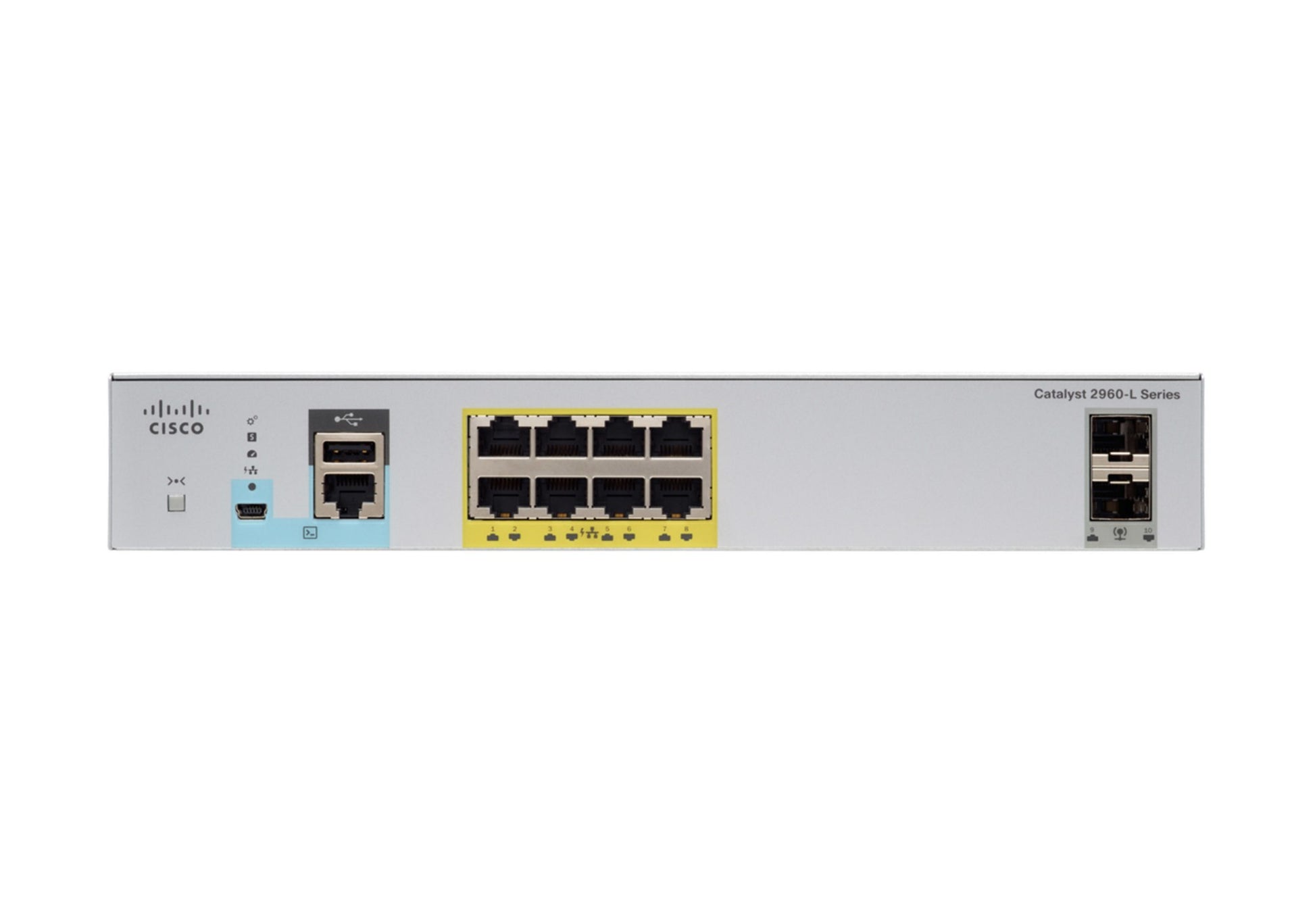

• Cisco WS-C2960CX-8PC-L switch with 8 yellow PoE+ ports and 2 blue Gigabit uplinks
  • White cisco ws-c2960cx-8pc-l network switch with 8x 1g poe+ ports and perforated top panel for efficient cooling
  • White cisco ws-c2960cx-8pc-l network switch with black heat sinks and power input on back behind a pink xs sign
  • Silver and black cisco ws-c2960cx-8pc-l anatel network switch with 8x 1g poe+ ports and 4x 1g uplinks on front panel
1 4

Cisco

Cisco WS-C2960CX-8PC-L | Catalyst 2960-CX 8-Port PoE+ Switch, 124W, LAN Base

WS-C2960CX-8PC-L

1 in stock

$1,595.00 inc. GST
$1,450.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-CX is a fanless, compact, managed Layer 2 Gigabit Ethernet switch built for space-constrained deployments outside the wiring closet, such as open workspaces, desks and conference rooms. It provides PoE+ for IP phones, wireless access points, surveillance cameras and video endpoints, and its silent operation suits areas where noise matters.

This model has 8 x 10/100/1000 PoE+ (IEEE 802.3at) downlink ports sharing a 124W PoE budget, with up to 30W per port. Four 1G uplinks are provided, 2 x copper and 2 x SFP, and all four can be used at the same time or as downlinks. It delivers 12 Gbps forwarding bandwidth, 24 Gbps switching bandwidth and a 17.9 Mpps forwarding rate, with 128 MB flash and 512 MB DRAM. It supports up to 255 VLANs, 4000 VLAN IDs and jumbo frames up to 9198 bytes. The switch runs the Cisco IOS LAN Base feature set.

The 1G SFP uplinks accept Cisco SFP modules, and the compact chassis can be mounted on a wall, under a desk, in a rack or on a DIN rail using the optional family accessories.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless, silent design suited to open workspaces and offices
- Flexible mounting: wall, under desk, rack or DIN rail
- Perpetual PoE keeps powered devices running during a switch reboot
- All four uplink ports can be used simultaneously and as downlinks
- Cisco Network Plug-and-Play, Smart Install and Auto Smartports for simplified deployment
- Security features including 802.1X, MAB, DHCP snooping, Dynamic ARP Inspection, IP Source Guard and SSH/SNMPv3
- QoS with up to eight egress queues per port and NetFlow Lite for application visibility
- IEEE 802.3az Energy-Efficient Ethernet to reduce power use

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 8 x 10/100/1000 PoE+ (IEEE 802.3at)
- PoE budget: 124W
- Maximum power per port: 30W (PoE+), 15.4W (PoE)
- Uplinks: 2 x 1G RJ-45 and 2 x 1G SFP
- Software feature set: Cisco IOS LAN Base
- Forwarding bandwidth: 12 Gbps
- Switching bandwidth: 24 Gbps
- Forwarding rate (64-byte packets): 17.9 Mpps
- Flash memory: 128 MB
- DRAM: 512 MB
- Maximum VLANs: 255
- VLAN IDs: 4000
- Jumbo frames: up to 9198 bytes
- Cooling: fanless
- Dimensions (H x W x D): 4.44 x 26.9 x 23.8 cm
- Weight: 2.27 kg
- AC input: 100-240 VAC, internal autoranging power supply
- Power consumption at 100% throughput, no PoE load: 24.5W
- Power consumption at 100% throughput, maximum PoE load: 161.4W
- Operating temperature: -5 to 45 C
- Storage temperature: -25 to 70 C
- Relative humidity: 5% to 95% non-condensing
- MTBF: 569,530 hours

FAQs

Q: How much total PoE power does this switch provide?
A: It provides a 124W PoE+ budget shared across its 8 ports, with up to 30W available on any single PoE+ port.

Q: Does it need a separate licence to use LAN Base?
A: No. It runs the Cisco IOS LAN Base feature set, which provides advanced Layer 2 features with intelligent Layer 2-4 services.

Q: Can all four uplinks be used at the same time?
A: Yes. The 2 x 1G copper and 2 x 1G SFP uplink ports can all be used simultaneously, and they can also be used as downlinks.

Q: How can this switch be mounted?
A: The compact chassis supports wall, under-desk, rack and DIN rail mounting using the optional mounting accessories for the 2960-CX family.

Q: How does this model differ from other 2960-CX variants?
A: WS-C2960CX-8PC-L has 8 PoE+ ports with a 124W budget and LAN Base software, plus 2 SFP and 2 RJ-45 uplinks.
