• Cisco C9300X-24HX-M switch with 24 mGig RJ45 ports and UPOE+
1 1

Meraki

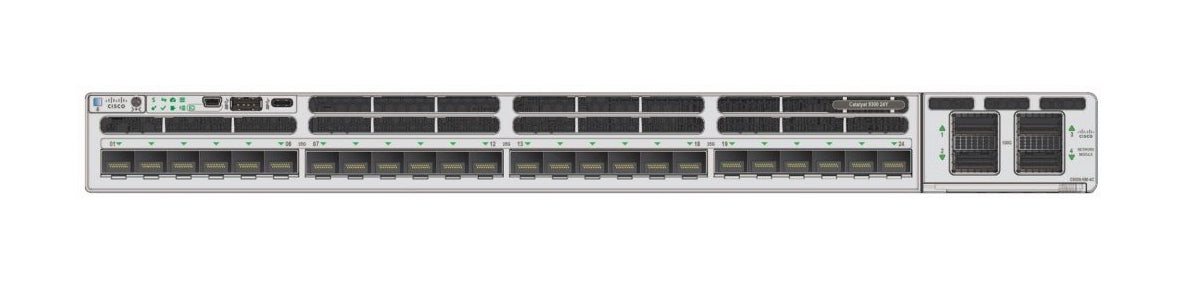

Meraki C9300X-24HX-M | Catalyst 9300X 24-Port mGig Switch, 735W UPoE+

C9300X-24HX-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki C9300X-24HX-M is a cloud-managed enterprise switch delivering 24 multigigabit ports with 90W UPoE+ per port, ideal for high-density Wi-Fi 6/6E deployments and IoT environments. With 2000 Gbps switching capacity, modular uplink expansion up to 100G, and 1 Tbps stacking bandwidth, it combines powerful hardware with the simplicity of Meraki dashboard management. Designed for demanding campus and branch networks requiring secure connectivity and zero-touch provisioning.

Features

Meraki cloud management with zero-touch provisioning and centralized policy control
- UPoE+ (802.3bt Type 4) 90W per port for high-power devices
- Multigigabit Ethernet (100M/1G/2.5G/5G/10G) auto-negotiation on all 24 ports
- StackWise-1T technology with 1 Tbps stacking bandwidth (up to 8 switches)
- StackPower for resilient power pooling and distribution across stack
- Modular uplink slot for 40G/100G QSFP28 or 1/10/25G SFP28 expansion
- Layer 3 routing capabilities with advanced security features
- Adaptive Policy with over-the-wire tagging for segmented security groups
- 100G line-rate IPsec encryption in hardware (UADP 2.0Sec ASIC)
- Secure tunnel connectivity for SD-WAN and cloud integration
- Enhanced application hosting with 2x capacity and 2x 10G AppGig ports
- 802.1x authentication, MACsec encryption, Dynamic ARP Inspection
- Advanced QoS for optimized traffic management
- Power redundancy support with dual power supply slots
- Mixed stacking support with Catalyst 9300 and 9300X models

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

24 x 100M/1G/2.5G/5G/10G multigigabit RJ45 ports
- UPoE+ support: 90W per port, 735W PoE budget (default 1100W AC PSU)
- Switching capacity: 2000 Gbps
- Forwarding rate: 327.38 Mpps
- 1 x modular uplink expansion slot (supports 2x 40G/100G QSFP28 or 8x 1/10/25G SFP28 modules)
- Stacking: StackWise-1T (1 Tbps bandwidth, up to 8 switches)
- StackPower support for resilient power distribution
- MAC address table: 32,000 entries
- Management: Meraki cloud dashboard
- Dimensions: 1.73" x 17.5" x 20.63" (4.4 x 44.5 x 52.4 cm), 13.8 lb (6.25 kg)
- 1U rack-mountable form factor
- Operating temperature: -5°C to 45°C
- Relative humidity: 5% to 90% (non-condensing)

FAQs

Q: What multigigabit speeds do the ports support?
A: All 24 ports support 100M, 1G, 2.5G, 5G, and 10G auto-negotiation, providing flexibility for diverse endpoints including Wi-Fi 6/6E access points, IP cameras, and IoT devices.

Q: What uplink modules are compatible with this switch?
A: The C9300X-24HX-M supports the C9300X-NM-2C-M module (2x 40G/100G QSFP28) and C9300X-NM-8Y-M module (8x 1/10/25G SFP28) for flexible high-speed uplink connectivity.

Q: Does this switch require a Meraki license?
A: Yes, the C9300X-24HX-M requires a Catalyst 9300-M Enterprise or Advanced license (sold separately) to operate. Licenses are available in 1, 3, 5, 7, and 10 year terms.

Q: Can I stack this switch with non-Meraki Catalyst 9300 models?
A: Yes, the C9300X-24HX-M supports mixed stacking with Catalyst 9300 and 9300X models at StackWise-480 speeds, though 1 Tbps bandwidth is available when stacking with other C9300X switches.

Q: How many devices can receive full 90W UPoE+ simultaneously?
A: With the default 1100W AC power supply, the switch provides a 735W PoE budget. An optional secondary power supply can increase the total PoE budget to 1835W, supporting more high-power devices.
