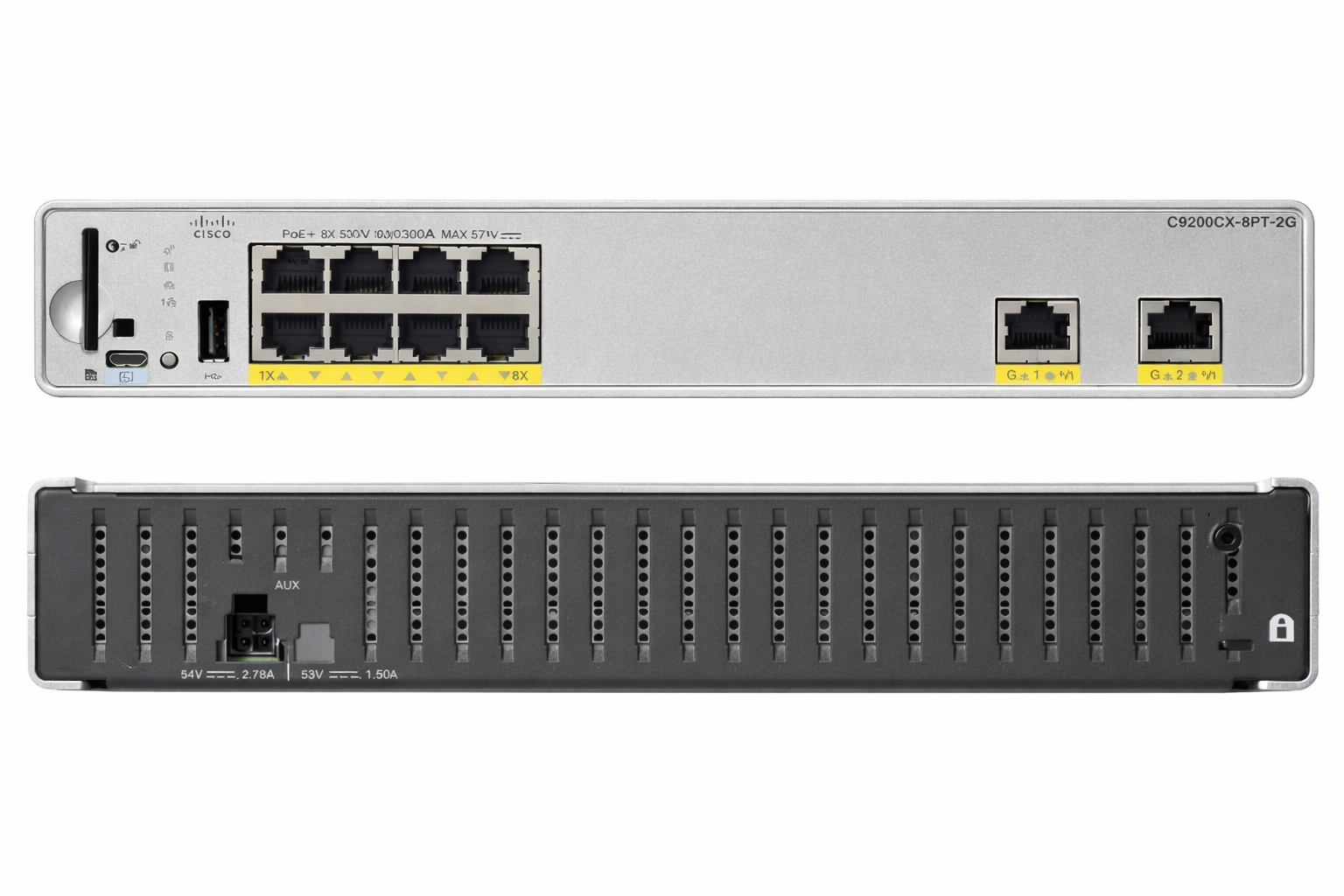

• Cisco C9200CX-8PT-2G-E compact switch with 8x 1G PoE+ ports, silver front
1 1

Cisco

Cisco C9200CX-8PT-2G-E | Catalyst 9200CX 8-Port PoE+ Switch, Network Essentials

C9200CX-8PT-2G-E

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200CX is a fanless, compact access-layer switch from the Catalyst 9200 range. It suits branch offices, open workspaces, desks, classrooms and hospitality sites where a silent switch is mounted on the floor, a wall or under a desk and powered from an upstream UPOE+ switch. It can power PoE+ endpoints such as IP phones, wireless access points and cameras.

This model provides 8 x 10/100/1000 PoE+ downlink ports and 2 x 1G copper uplinks that accept UPOE+ (IEEE 802.3bt) power input. Switching capacity is 20 Gbps with a forwarding rate of 14.88 Mpps. Available PoE budget is 180 W with the 80 W adapter or 240 W with the 150 W adapter. It carries 4 GB DRAM, 8 GB flash and a 6 MB packet buffer, and runs Cisco IOS XE.

The C9200CX-8PT-2G-E ships with the perpetual Network Essentials licence tier, which can be upgraded to Network Advantage. It works with the C9K compact mounting range, including magnet tray, DIN rail, 19-inch rack, wall and under-desk kits, and the C9K-80W-ADPT and C9K-150W-ADPT power adapters. It does not support stacking.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless design for quiet operation in open-office, desk and other noise-sensitive spaces
- IEEE 802.3bt/UPOE+ power passthrough from the upstream switch or an external 80 W/150 W power adapter
- AES-256 MACsec encryption on 9200CX models
- Layer 3 features including OSPF, EIGRP, IS-IS, RIP, routed access and basic BGP (IOS XE 17.13.1 and later)
- Cisco SD-Access support with 16 virtual networks
- Cisco IOS XE with model-driven programmability and streaming telemetry
- Plug and Play, Catalyst Center and Meraki cloud management options
- Perpetual PoE and Fast PoE, plus Precision Time Protocol (IEEE 1588v2)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Downlink ports: 8 x 10/100/1000 PoE+
- Uplinks: 2 x 1G copper with UPOE+ (IEEE 802.3bt) power input
- Cooling: Fanless
- Switching capacity: 20 Gbps
- Forwarding rate: 14.88 Mpps (64-byte packets)
- PoE budget: 180 W with 80 W adapter, 240 W with 150 W adapter
- Stacking: Not supported
- Licence tier: Network Essentials (perpetual)
- Virtual networks: 16
- MAC addresses: 32,000
- IPv4 routing entries: 4,000
- IPv6 routing entries: 2,000
- ACL scale entries: 1,600
- QoS scale entries: 1,000
- Packet buffer: 6 MB
- DRAM / Flash: 4 GB / 8 GB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Power consumption (115VAC, no link): 18.0 W
- Power consumption (115VAC, 100% PoE test): 158.0 W
- Dimensions (H x W x D): 4.4 x 26.9 x 16.5 cm
- Weight: 1.95 kg
- Operating temperature: -5 to +45 C up to 1500 m
- Console port: Micro USB (RJ45 with CAB-CON-USBRJ45)
- Storage: Micro-SD card support up to 4 GB

FAQs

Q: Which licence does the C9200CX-8PT-2G-E include?
A: It ships with the perpetual Network Essentials licence, indicated by the -E suffix. It can be upgraded to Network Advantage, and Cisco DNA term subscriptions are available for 8-port models.

Q: How is this switch powered?
A: It is powered by IEEE 802.3bt/UPOE+ from an upstream switch, from the external C9K-80W-ADPT (80 W) or C9K-150W-ADPT (150 W) adapter, or from both together. The adapters also support LVDC input.

Q: What PoE budget is available for connected devices?
A: The available PoE budget is 180 W with the 80 W adapter and 240 W with the 150 W adapter, alongside UPOE+ input from the upstream switch.

Q: Can the C9200CX be stacked with other Catalyst switches?
A: No. The C9200CX does not support stacking.

Q: What mounting options are available?
A: Compact switch accessories include the C9K-MGNT-TRAY magnet tray, C9K-CMPCT-DIN-MNT DIN rail kit, RACKMNT-19-CMPACT 19-inch rack kit, C9K-WALL-TRAY wall mount and C9K-CMPCT-DESK-MNT under-desk mount.
