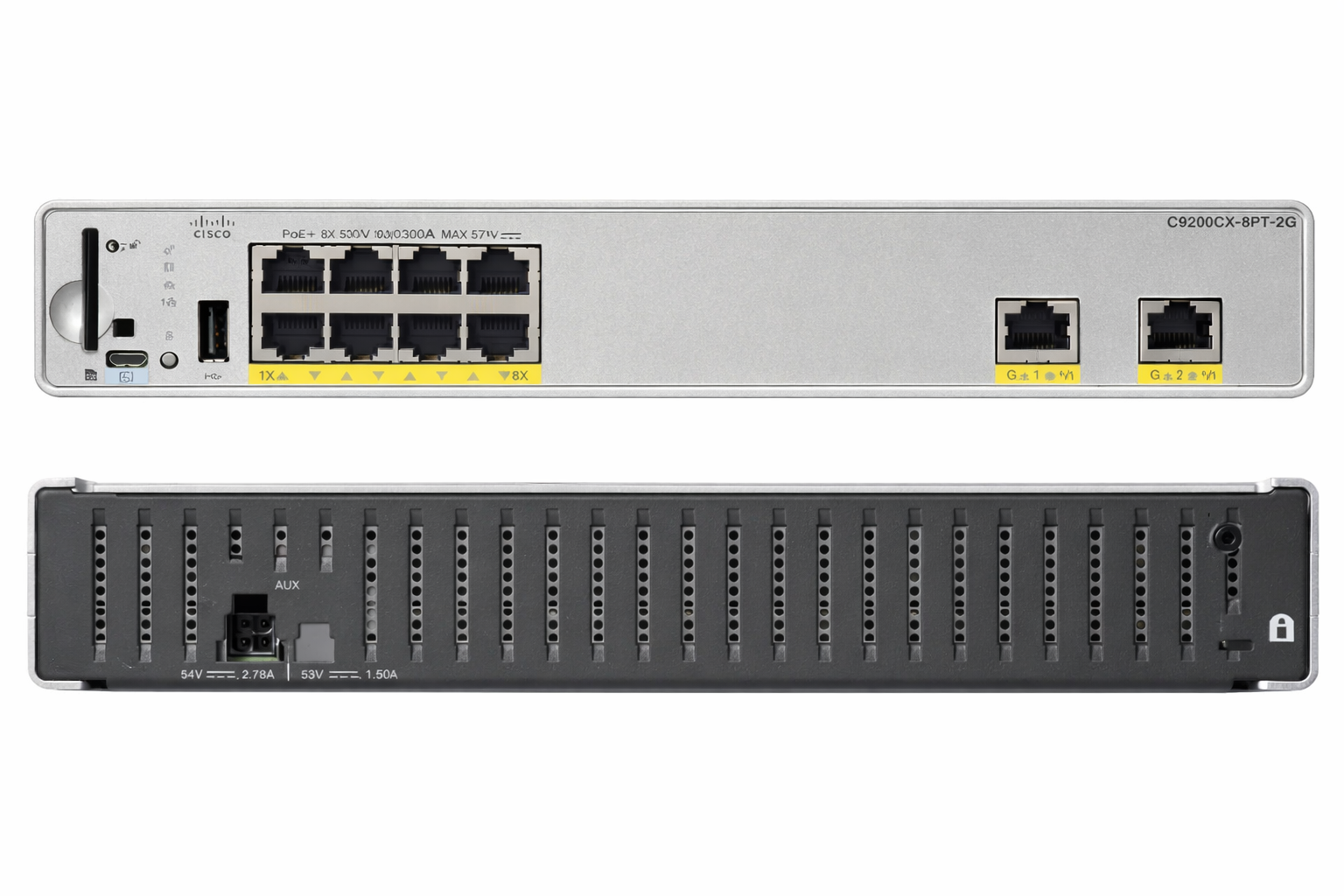

• Cisco C9200CX-8PT-2G-A 8-port PoE+ compact switch front view
1 1

Cisco

Cisco C9200CX-8PT-2G-A | Catalyst 9200CX 8-Port PoE+ Pass-Through Switch, Network Advantage

C9200CX-8PT-2G-A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200CX is a compact, fanless Layer 2/3 access switch for branch offices, classrooms, retail and other space-constrained or noise-sensitive locations. This PoE pass-through model can take power from an upstream UPOE+ switch and pass PoE+ on to IP phones, cameras and access points, so it can be deployed where no local mains outlet is available.

It provides 8 x 10/100/1000 PoE+ downlink ports and 2 x 1G copper uplinks, with 20 Gbps switching capacity and a 14.88 Mpps forwarding rate. Power comes from the UPOE+ (802.3bt) uplinks and/or an external 80W or 150W adapter, giving an available PoE budget of 180W or 240W depending on the adapter used. The -A suffix denotes the perpetual Network Advantage software tier on Cisco IOS XE, which adds the routing and SD-Access capability this tier is used for.

It works with the C9K-80W-ADPT and C9K-150W-ADPT power adapters, and the C9K-ADPT-DC adapter for low-voltage DC input. Mounting options include the C9K-MGNT-TRAY magnet tray, C9K-CMPCT-DIN-MNT DIN rail kit, RACKMNT-19-CMPACT 19-inch rack mount and C9K-WALL-TRAY wall tray. Stacking is not supported on the C9200CX.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Compact fanless design with front blue beacon LED, suited to quiet, space-constrained deployments
- PoE pass-through: powered by upstream 802.3bt UPOE+ over redundant uplinks and passes PoE+ to endpoints
- Perpetual PoE and Fast PoE keep endpoints powered across switch reloads
- AES-256 MACsec encryption, policy-based segmentation and secure boot with signed images
- Cisco IOS XE with NETCONF, RESTCONF, YANG programmability and streaming telemetry
- Cisco SD-Access support with Catalyst Center automation and Cisco ISE policy
- Layer 3 routing including OSPF, EIGRP, IS-IS, RIP and routed access
- Plug and Play zero-touch provisioning, embedded WebUI and Meraki dashboard monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Downlink ports: 8 x 10/100/1000 PoE+
- Uplinks: 2 x 1G copper, UPOE+ / 802.3bt Class 8 powered-device capable, redundant
- Software tier: Network Advantage (-A)
- Switching capacity: 20 Gbps
- Forwarding rate: 14.88 Mpps (64-byte packets)
- Available PoE power: 180W with 80W adapter and UPOE+ uplinks
- Available PoE power: 240W with 150W adapter and UPOE+ uplinks
- PoE standard: IEEE 802.3at PoE+, up to 30W per port
- Cooling: Fanless
- Stacking: Not supported
- Virtual networks (SD-Access): 16
- MAC addresses: 32,000
- IPv4 routing entries: 4,000
- IPv6 routing entries: 2,000
- ACL scale entries: 1,600
- Packet buffer: 6 MB
- DRAM: 4 GB
- Flash: 8 GB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 4.4 x 26.9 x 16.5 cm (1.73 x 10.6 x 6.5 in)
- Weight: 1.95 kg (4.3 lb)
- Operating temperature: -5 to +45 C up to 1500 m
- Console: Micro USB, optional RJ45 conversion with CAB-CON-USBRJ45

FAQs

Q: Does this switch need a software subscription?
A: The -A SKU includes the perpetual Network Advantage software tier. It also operates with a Cisco Catalyst DNA subscription managed through Cisco Smart Licensing, and the DNA tier must match the network tier.

Q: How is the C9200CX-8PT-2G-A powered?
A: It is powered by upstream IEEE 802.3bt Class 8 / UPOE+ through the 2 x 1G copper uplinks and/or an external C9K-80W-ADPT or C9K-150W-ADPT adapter. Low-voltage DC input is supported with the C9K-ADPT-DC adapter.

Q: What PoE budget does it provide?
A: The available PoE budget is 180W with the 80W adapter plus UPOE+ uplinks, or 240W with the 150W adapter plus UPOE+ uplinks. Each of the 8 downlink ports supplies PoE+ at up to 30W.

Q: Can this switch be stacked?
A: No. Stacking is not available on the Catalyst 9200CX family.

Q: What mounting options are available?
A: Compatible mounting accessories include C9K-MGNT-TRAY, C9K-CMPCT-DIN-MNT, RACKMNT-19-CMPACT, C9K-WALL-TRAY, C9K-CMPCT-CBLE-GRD and C9K-CMPCT-DESK-MNT.
