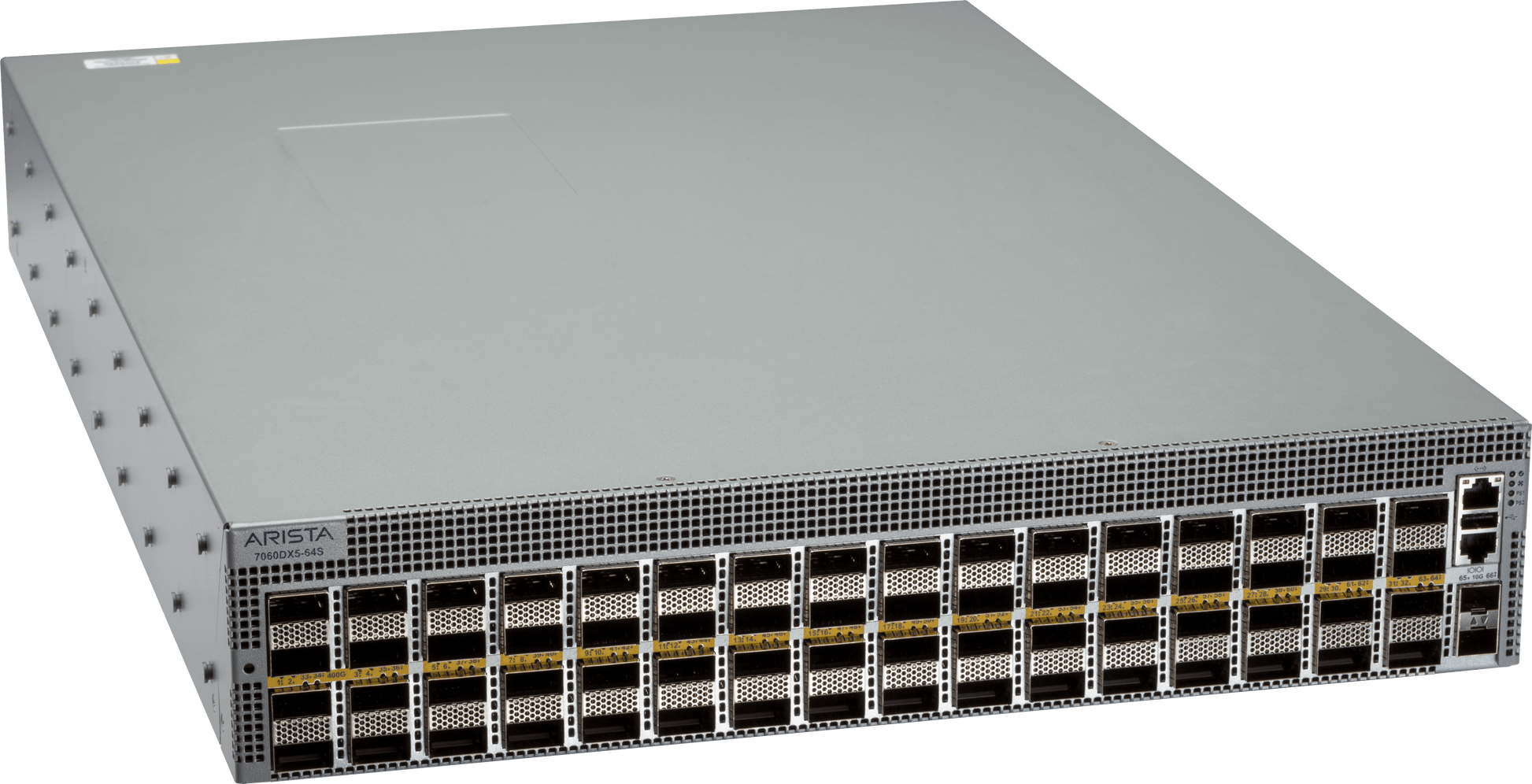

Arista DCS-7060DX5-64S-R | 7060X5 64-Port 400G Switch, Rear-to-Front, 2xAC
SKU:DCS-7060DX5-64S-R
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Arista 7060X5 is a fixed-configuration 2RU data centre switch built for leaf and fixed-configuration spine roles in large-scale multi-tier networks, including AI/ML and accelerated computing clusters. It runs Arista EOS and offers a migration path to 400G.
The switch provides 64 x 400GbE QSFP-DD ports plus 2 x SFP+ ports, with 25.6 Tbps of throughput (51.2 Tbps full duplex), a 10.6 Bpps forwarding rate, 825 ns latency and a 114 MB packet buffer. Every QSFP-DD port can run at 400GbE, 200GbE or 100GbE, giving up to 256 x 100GbE ports with breakout. This -R SKU has rear-to-front airflow and two hot-swap 2400 W AC power supplies in a 1+1 redundant arrangement, with four N+1 redundant fans. Typical power draw is 489 W and maximum is 1716 W, excluding transceivers.
The base EOS feature set is bundled with the switch. Optional Group 4 feature licences, including LIC-FIX-4-E, LIC-FIX-4-Z and LIC-FIX-4-FLX-L, extend routing, monitoring and EVPN/VXLAN capabilities. Rear-to-front airflow is supported with 400G DACs and AOCs. Minimum EOS is 4.29.1.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Runs Arista EOS, a modular Linux-based network OS with in-service software updates and self-healing resiliency
- Hitless speed changes from 400G down to 100G on all ports
- 128-way ECMP and 64-way MLAG for scalable multi-tier designs
- EVPN/VXLAN routing and bridging with VXLAN gateway capability
- AI Analyzer provides ECMP member utilisation data at intervals as fine as 100 microseconds
- Cluster Load Balancing for RDMA-aware flow placement in AI clusters
- PFC, ECN, DCBX and ETS for lossless, RDMA-oriented QoS
- LANZ microburst detection, ZTP, sFlow, IEEE 1588 PTP, eAPI and DirectFlow
- CloudVision and Arista Validated Designs support for automation
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 64 x 400GbE QSFP-DD, 2 x SFP+
- Maximum 200GbE ports: 128 (2 x 200G)
- Maximum 100GbE ports: 256 (4 x 100G)
- Maximum 50GbE, 25GbE and 10GbE ports: 256 each (plus 2 x SFP+ for 10GbE)
- Throughput: 25.6 Tbps (51.2 Tbps full duplex)
- Packet forwarding rate: 10.6 Bpps
- Latency: 825 ns
- Packet buffer: 114 MB
- CPU: Multi-core x86
- System memory: 64 GB
- Flash storage: 120 GB
- Management ports: 1 x 10/100/1000, 1 x RS-232 serial (RJ-45), 1 x USB
- Form factor: 2RU
- Power supplies: 2 x hot-swap AC, 1+1 redundant
- PSU output: 2400 W, 200-240V AC, IEC 60320 C20 inlet
- Fans: 4 hot-swap, N+1 redundant
- Airflow: Rear-to-front
- Typical / maximum power draw: 489 W / 1716 W (excluding transceivers)
- Dimensions (W x H x D): 43.99 x 8.79 x 63.96 cm
- Weight: 21.95 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 90%
- ECMP: 128-way, 4K groups, 16K members
- MAC addresses: 128K
- IPv4 LPM routes: 800K
- IPv6 LPM routes: 500K
- Minimum EOS: 4.29.1
FAQs
Q: Does this switch need a licence to run?
A: No. The base Arista EOS feature set is bundled with the switch. Optional Group 4 feature licences are available, including LIC-FIX-4-E for enhanced Layer 3, LIC-FIX-4-Z for monitoring and automation, and LIC-FIX-4-FLX-L for FLX-Lite routing with EVPN and VXLAN.
Q: What power does it need?
A: It uses two hot-swap 2400 W AC power supplies in a 1+1 redundant arrangement, fed from 200-240V AC through IEC 60320 C20 inlets. Typical draw is 489 W and maximum is 1716 W, excluding transceivers.
Q: What airflow does this SKU have?
A: The -R SKU has rear-to-front airflow, using the PWR-2411-AC-BLUE power supplies and the FAN-7012H-BLUE fan module. Rear-to-front airflow is only supported with 400G DACs and AOCs.
Q: What optics and cables does it support?
A: The QSFP-DD ports take 400G, 200G and 100G optics and cables, and the SFP+ ports take 10G modules. Refer to Arista's transceiver and cable compatibility matrix for supported part numbers.
Q: Which EOS version does it require?
A: The minimum supported release is EOS 4.29.1.
