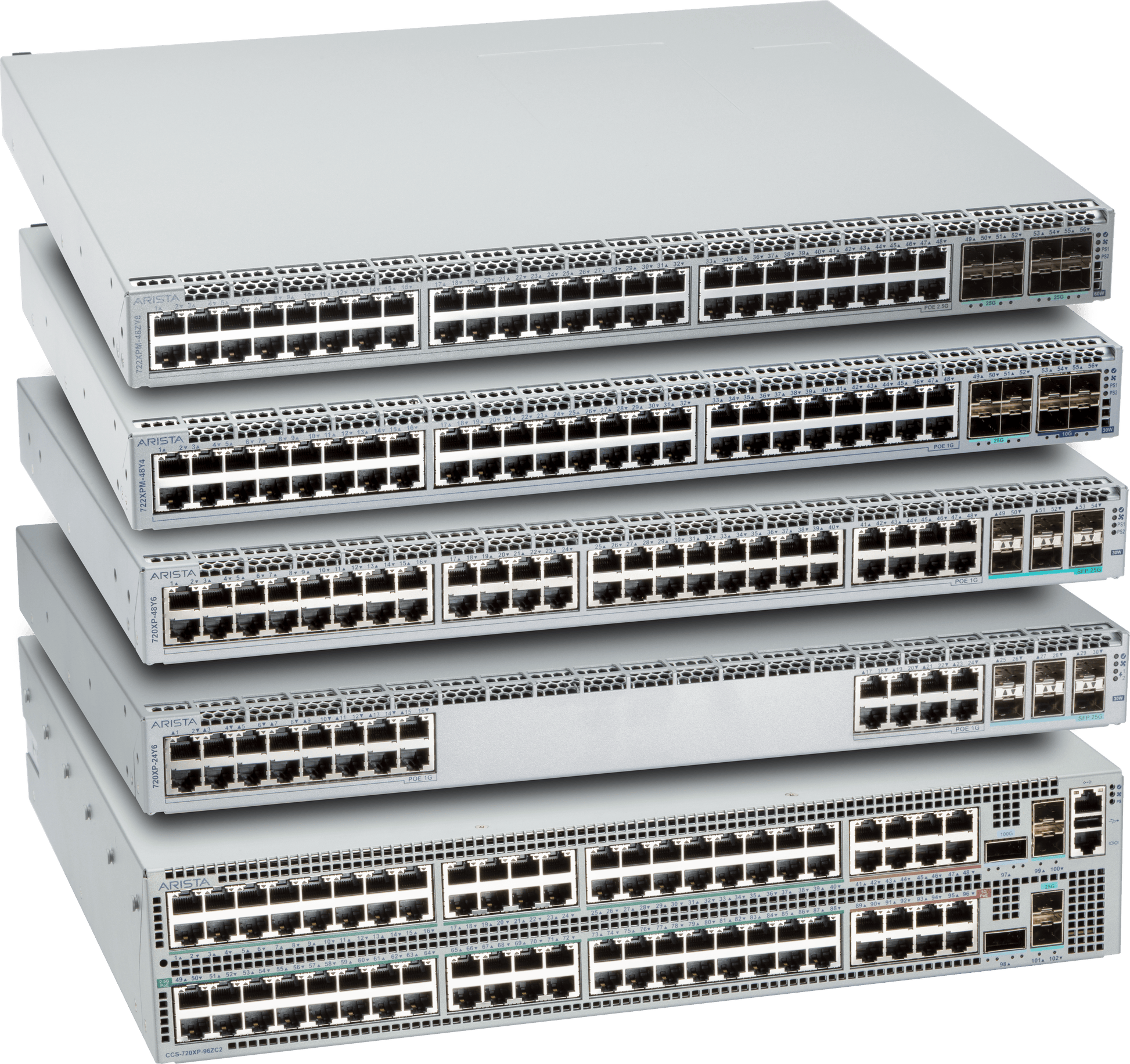

• Stack of five silver arista ccs-722xpm 48-port gigabit poe+ switches with black ethernet ports and metallic chassis
1 1

Arista

Arista CCS-722XPM-48Y4-2F | CCS-722XPM 48-Port Gigabit PoE+ Switch, 948W, 4x 25G, 4x 10G SFP+

CCS-722XPM-48Y4-2F

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista CCS-722XPM-48Y4-2F is a high-performance campus access switch designed for IoT-enabled enterprise environments. Featuring 48 Gigabit PoE+ ports delivering 30W per port with a total PoE budget of 948W with dual power supplies, plus 4x 25G and 4x 10G SFP+ uplinks, this 1U switch delivers wire-speed connectivity with hardware MACsec on all ports. Powered by Arista EOS and CloudVision, it provides advanced telemetry, FlowTracker analytics, and device fingerprinting for modern cognitive campus networks.

Features

Arista EOS operating system with single-image architecture and extensive Layer 2/3 feature set
- Hardware MACsec encryption on all ports for end-to-end security
- FlowTracker telemetry for real-time flow monitoring, supporting up to 32,000 concurrent flows
- Device fingerprinting and classification for IoT security audits
- CloudVision integration for centralized management, monitoring, and automation
- Layer 3 routing with OSPF, BGP, RIP-2, and static routing support
- VXLAN and EVPN for software-defined campus architectures (with optional licenses)
- MLAG (Multi-Chassis Link Aggregation) and ECMP load balancing
- Advanced QoS with multiple queuing methods and traffic shaping
- IEEE 802.1X authentication and dynamic VLAN assignment
- Jumbo frame support up to 9216 bytes
- LLDP, LLDP-MED, and comprehensive network discovery protocols
- Hot-swappable redundant power supplies and fans for high availability
- ZTP (Zero-Touch Provisioning) for automated deployment
- Comprehensive SNMP, syslog, and streaming telemetry for monitoring
- Energy-efficient design with front-to-rear airflow for data center cooling optimization

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 10/100/1000BASE-T RJ45 PoE+ ports (30W per port)
- 4x 25G SFP28 uplink ports
- 4x 10G SFP+ uplink ports
- PoE budget: 948W with dual power supplies (1893W total), 83W without PoE
- Switching capacity: 376 Gbps (bi-directional)
- Forwarding rate: 559 Mpps
- Latency: 1.2 microseconds
- System memory: 4GB RAM
- Flash storage: 16GB
- Packet buffer: 4MB
- Dual-core x86 CPU
- Hardware MACsec on all ports (50 Gbps downlinks, 50 Gbps uplinks)
- 1x 100M/1G management port, 1x USB port, 1x console port
- Front-to-rear airflow, redundant power supplies (2x PWR-1021-AC-RED included)
- 3x hot-swappable fans (N+1 redundancy, FAN-7000-F/R)
- Dimensions: 17.5 x 1.75 x 14.5 inches (44.5 x 4.4 x 36.37 cm), 1U
- Weight: 15 lbs (6.8 kg)
- Operating temperature: 0°C to 40°C

FAQs

Q: What is the total PoE budget on the Arista CCS-722XPM-48Y4-2F?
A: With dual redundant power supplies (PWR-1021-AC-RED), the switch provides up to 948W PoE budget, supporting 30W per port across all 48 Gigabit Ethernet ports. With a single PSU, the budget is approximately 948W as well, depending on system power draw.

Q: Does this switch support Layer 3 routing and advanced features?
A: Yes, the CCS-722XPM runs Arista EOS and supports advanced Layer 2 and Layer 3 features including OSPF, BGP, VXLAN, and EVPN with optional FlexRoute licenses. Base features include full switching, MACsec, and CloudVision telemetry integration.

Q: What uplink options are available on this model?
A: The CCS-722XPM-48Y4-2F offers 4x 25G SFP28 ports and 4x 10G SFP+ ports for high-speed uplinks, supporting a wide range of 1G, 10G, and 25G optical transceivers and DAC cables for flexible campus distribution and aggregation connectivity.

Q: Is the switch compatible with Arista CloudVision?
A: Yes, the switch is fully compatible with Arista CloudVision for centralized network automation, telemetry, and analytics. CloudVision provides real-time device and application monitoring, FlowTracker analytics, and device fingerprinting for enhanced security and troubleshooting.

Q: What is the difference between the -F and -2F model suffixes?
A: The -F model includes a single AC power supply, while the -2F model ships with dual redundant AC power supplies for enhanced power redundancy and increased PoE budget. Both support the same switching features and front-to-rear airflow configuration.
