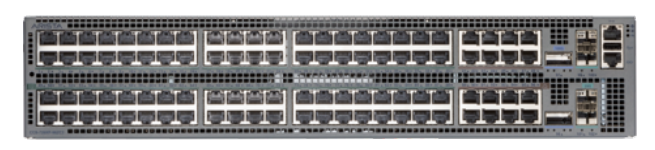

Arista CCS-720XP-96ZC2-2F | 720XP 96-Port Multi-Gigabit PoE+ Switch, 4x 25G, 2x 100G

CCS-720XP-96ZC2-2F

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista CCS-720XP-96ZC2-2F is a high-density cognitive campus switch designed for enterprise IoT-enabled environments. Featuring 96 multi-gigabit PoE+ ports supporting speeds from 100Mbps to 5Gbps, plus 4x 25G SFP and 2x 100G QSFP uplinks, this 2RU switch delivers 2.56 Tbps switching capacity with wire-speed Layer 3 routing. Dual 1050W AC power supplies provide up to 1722W PoE budget for wireless access points, IP cameras, and IoT devices across campus deployments.

Features

Arista EOS operating system with unified software image
- Wire-speed Layer 2 and Layer 3 switching with full routing protocols
- EVPN VXLAN virtualization with hardware VXLAN de-encapsulation
- 802.1X authentication and RADIUS integration for network access control
- Automatic user and device segmentation into 802.1Q or VXLAN networks
- VRF-lite support for traffic isolation and segmentation
- Up to 4K VLANs and 16.7 million VXLAN overlay networks
- QoS with priority queuing and traffic shaping
- LLDP device identification and auto-provisioning
- IEEE 802.3af/at/bt PoE with power prioritization and constant PoE
- N+1 redundant power supply architecture
- Three field-replaceable cooling fans
- Real-time streaming telemetry integration
- OSPF, ISIS, BGP/MP-BGP routing protocol support
- CloudVision cognitive campus services integration
- Zero-touch provisioning and automated deployment
- Platinum-rated power supplies for energy efficiency

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

96 RJ45 ports: 80x 100M/1G/2.5G PoE+, 16x 100M/1G/2.5G/5G PoE+
- 4x 25 Gigabit SFP uplink ports
- 2x 100 Gigabit QSFP uplink ports
- PoE budget: up to 1722W (with dual 1050W AC power supplies)
- PoE standards: IEEE 802.3af, 802.3at, 802.3bt (up to 60W per port)
- Switching capacity: 2.56 Tbps
- Forwarding rate: 1.44 Bpps
- Layer 3 capabilities with full routing support
- Form factor: 2RU rackmount, 19-inch rack compatible
- Airflow: Front-to-back cooling
- Power supplies: Dual redundant 1050W AC (N+1 redundancy)
- Management: CLI, SNMP, web interface, CloudVision
- Operating temperature: 0°C to 40°C
- Certifications: CE, FCC, RoHS compliant

FAQs

Q: What PoE power budget does the CCS-720XP-96ZC2-2F provide?
A: With dual 1050W AC power supplies, the switch delivers up to 1722W total PoE budget across all 96 ports, supporting 802.3af, 802.3at, and 802.3bt standards with up to 60W per port for high-power devices like PTZ cameras and WiFi 6 access points.

Q: What is the difference between the 80 standard ports and 16 high-speed ports?
A: The switch features 80 ports supporting 100M/1G/2.5G speeds and 16 ports supporting 100M/1G/2.5G/5G speeds. All 96 ports support PoE+, providing flexibility to deploy higher-speed connections where needed for bandwidth-intensive devices while maintaining uniform power delivery.

Q: Does this switch support CloudVision management?
A: Yes, the CCS-720XP-96ZC2-2F is fully compatible with Arista CloudVision, providing centralized management, real-time telemetry, automated provisioning, change control, and predictive analytics for cognitive campus deployments.

Q: What are the primary use cases for this switch?
A: Ideal for enterprise campus access layer deployments, particularly in high-density environments requiring multi-gigabit PoE such as modern office buildings, educational facilities, healthcare campuses, and smart buildings with numerous WiFi 6 access points, IP cameras, and IoT devices.

Q: What routing and virtualization features are supported?
A: The switch supports wire-speed Layer 3 routing with OSPF, BGP, and VRF segmentation. It provides 4K 802.1Q VLANs and up to 16.7 million VXLAN overlay networks with EVPN control plane support, plus hardware-based VXLAN de-encapsulation for WiFi traffic.
