Arista

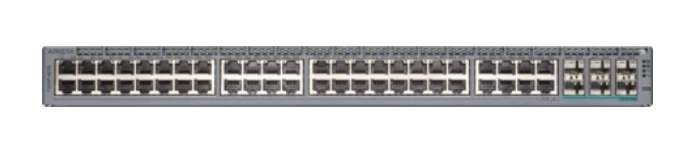

Arista CCS-720XP-48Y6-2F | 720XP 48-Port Gigabit PoE+ Switch, 1850W, 6x 25G SFP28

CCS-720XP-48Y6-2F

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista CCS-720XP-48Y6-2F is a high-performance cognitive campus switch designed for enterprise and IoT-enabled campus networks. Featuring 48 Gigabit Ethernet PoE+ ports and 6x 25G SFP28 uplinks, it delivers wirespeed connectivity with dual redundant 1050W power supplies for maximum uptime. Built on Arista EOS, this 1RU switch provides advanced Layer 2/3 features, VXLAN support, and comprehensive security for modern campus deployments.

Features

Arista Extensible Operating System (EOS) with cognitive campus services
- CloudVision management platform support for automated provisioning and real-time telemetry
- 802.3af/at PoE+ with power prioritization and constant PoE delivery
- Layer 2 and Layer 3 switching with wire-speed VRF segmentation
- 4K 802.1Q VLANs and 16.7 million VXLAN overlay networks with EVPN control plane
- Hardware-based VXLAN de-encapsulation for WiFi traffic segmentation
- 802.1X and RADIUS authentication with automatic network segmentation
- Advanced security with MAC authentication and port security
- Quality of Service (QoS) for traffic prioritization
- IPv4 and IPv6 routing protocols (OSPF, BGP, ISIS)
- Platinum-rated power supplies for energy efficiency
- N+1 redundant power supply and cooling architecture
- Front-to-rear airflow for hot aisle/cold aisle data center compatibility
- Multi-rate SFP28 optics support (1G/10G/25G) for migration flexibility
- Low latency and ultra-low jitter for real-time applications

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 10/100/1000Base-T RJ45 ports with PoE+ (802.3af/at, up to 30W per port)
- 6x 25G SFP28 uplink ports
- Switching capacity: 396 Gbps (full duplex)
- Forwarding rate: 294 Mpps
- MAC address table: 112,000 entries
- PoE power budget: 982W (single PSU) / 1850W (dual PSU)
- Dual redundant 1050W AC power supplies (PWR-1021-AC)
- Power consumption: 68W typical / 93W maximum (excluding PoE)
- 3x field-replaceable fans with N+1 redundancy
- Front-to-rear airflow
- 1x 1000Base-T RJ45 management port, 1x console port, 1x USB port
- Operating system: Arista Extensible Operating System (EOS)
- 1RU rackmount form factor
- Operating temperature: 0°C to 40°C
- Dimensions: 1.75 x 19 x 12.5 inches (H x W x D)

FAQs

Q: What is the total PoE power budget available on this switch?
A: The CCS-720XP-48Y6-2F provides 982W PoE budget with a single power supply installed, or 1850W with dual redundant 1050W power supplies, supporting 802.3af/at standards with up to 30W per port across all 48 ports.

Q: Does this switch support stacking or redundancy features?
A: The 720XP series supports N+1 redundant power supplies for maximum uptime. The switch ships with dual 1050W PSUs by default. It also features three field-replaceable fans for cooling redundancy. Stacking is not supported, but the switch offers VXLAN and EVPN for scalable campus architectures.

Q: What uplink speeds are supported on the SFP28 ports?
A: The 6x SFP28 ports support 1G, 10G, and 25G speeds using compatible optical modules. Multi-rate 10G/25G SFP28 optics allow you to run in 10G mode while connected to legacy infrastructure and upgrade to 25G when ready, simplifying campus migrations.

Q: Is this switch suitable for IoT and high-density device deployments?
A: Yes, the CCS-720XP-48Y6-2F is specifically designed for IoT-enabled campus environments. It supports up to 4K 802.1Q VLANs and 16.7 million VXLAN overlay networks with EVPN control plane, providing extensive segmentation for thousands of users and devices with hardware-based VXLAN support.

Q: What management and security features does this switch offer?
A: The switch runs Arista EOS and supports CloudVision for centralized management, automated provisioning, and real-time telemetry. Security features include 802.1X and RADIUS authentication, wire-speed Layer 3 VRF segmentation, and automatic network segmentation using 802.1Q VLANs or EVPN VXLAN for enhanced infrastructure and data security.
