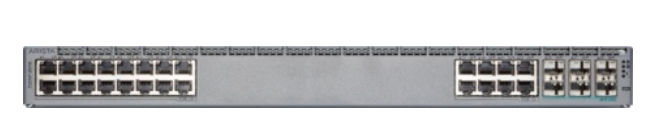

• Gray metal arista ccs-720xp-24y6-2f 24-port gigabit poe+ network switch with ethernet ports and indicator lights back view
1 1

Arista

Arista CCS-720XP-24Y6-F | 720XP 24-Port Gigabit PoE+ Switch, 583W, 6x 25G SFP28

CCS-720XP-24Y6-F

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista CCS-720XP-24Y6-F is a high-performance campus access switch designed for modern enterprise networks. Featuring 24 Gigabit PoE ports with 583W budget and 6x 25G SFP28 uplinks, this 1RU switch delivers 348 Gbps switching capacity and ultra-low 1.2-microsecond latency. Advanced features include VXLAN overlay support, wire-speed Layer 3 routing, 802.1X authentication, and CloudVision management integration for automated campus deployments.

Features

Layer 2 and Layer 3 switching with wire-speed VRF segmentation
- VXLAN hardware VTEP with CVX and EVPN control plane support
- Hardware-based VXLAN de-encapsulation for WiFi traffic
- 802.1X and RADIUS authentication with automatic VLAN/VXLAN assignment
- Advanced PoE management with power prioritization and constant PoE
- 802.3af (15W), 802.3at (30W), and 802.3bt (up to 90W) PoE support
- N+1 redundant power supply support for high availability
- Three field-replaceable hot-swappable fans
- Front-to-rear airflow design for data center-grade cooling
- Platinum-rated power supplies for energy efficiency
- CloudVision integration for zero-touch provisioning and telemetry
- Scalable MAC address, ARP, and routing tables with multiple user modes
- Advanced QoS, multicast, and traffic shaping capabilities
- Comprehensive security features including ACLs and port security

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

24x 10/100/1000BASE-T RJ45 PoE+ ports, supporting 802.3af/at/bt
- 6x 25G SFP28 uplink ports for fiber connectivity
- PoE Budget: 583W with single 650W AC power supply
- Switching Capacity: 348 Gbps
- Forwarding Rate: 259 Mpps
- Latency: 1.2 microseconds (ultra-low)
- 1x 650W AC power supply included, front-to-rear airflow
- N+1 redundant power supply support (second PSU optional)
- Dimensions: 48.3 x 4.4 x 31.7 cm (19 x 1.75 x 12.5 inches), 1RU
- Weight: 6.0 kg (13.3 lbs)
- Management: CLI, SNMP, CloudVision integration
- Operating Temperature: 0°C to 40°C

FAQs

Q: What is the maximum PoE budget available on the CCS-720XP-24Y6-F?
A: The switch provides 583W PoE budget with the default single 650W AC power supply. With dual 650W AC power supplies, the PoE budget increases to 1113W, and with dual 1050W AC PSUs, it reaches 1853W for maximum power delivery.

Q: What uplink speeds are supported on the SFP28 ports?
A: The 6x SFP28 ports support 25G connectivity. They are compatible with Arista's multi-rate 10G/25G optical modules, allowing the switch to operate at 10G when connected to legacy infrastructure while maintaining investment in 25G capability for future upgrades.

Q: Does this switch support network virtualization and segmentation?
A: Yes, the CCS-720XP-24Y6-F supports extensive network segmentation including 4K 802.1Q VLANs, 16.7 million VXLAN overlay networks with CVX and EVPN control plane, and wire-speed Layer 3 VRF segmentation for sophisticated campus use cases.

Q: Is the power supply redundant on this model?
A: This model ships with a single 650W AC power supply installed in bay #1. The switch supports N+1 redundant power supply configurations, and a second 650W or 1050W AC PSU can be purchased separately and added for redundancy.

Q: What management platforms are supported?
A: The switch supports traditional CLI and SNMP management, and integrates with Arista CloudVision for modern state-streaming management, automated provisioning, change control, continuous compliance, real-time telemetry, and predictive analytics.
