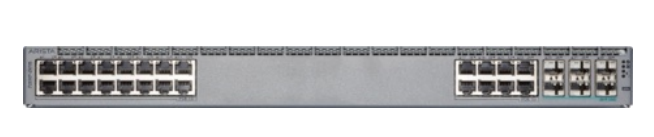

• Gray metal arista ccs-720xp-24y6-2f 24-port gigabit poe+ network switch with ethernet ports and indicator lights back view
1 1

Arista

Arista CCS-720XP-24Y6-2F | 720XP 24-Port Gigabit PoE+ Switch, 1300W, 6x 25G SFP28

CCS-720XP-24Y6-2F

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista CCS-720XP-24Y6-2F is a high-performance cognitive campus switch designed for IoT-enabled enterprise environments. With 24 Gigabit PoE+ ports supporting up to 60W per port and 6x 25G SFP28 uplinks, it delivers 348 Gbps switching capacity and 1.2 microsecond latency for demanding campus workloads. Dual 650W AC power supplies provide 1300W total PoE budget with N+1 redundancy, while Arista EOS enables advanced automation, EVPN VXLAN segmentation, and CloudVision cognitive management.

Features

Arista EOS operating system with advanced Layer 2 and Layer 3 routing
- 802.1X and RADIUS authentication with automated segmentation
- EVPN VXLAN overlay networks with CVX and EVPN control plane (16.7M VNIs)
- 4K 802.1Q VLANs and wire-speed Layer 3 VRF segmentation
- Hardware-based VXLAN de-encapsulation for WiFi tunnel traffic
- CloudVision cognitive management with real-time telemetry and analytics
- Priority-based PoE power management and constant PoE for critical devices
- QoS with advanced traffic classification and queuing
- Standards-based LLDP device identification and auto-provisioning
- Multi-rate SFP28 support (1G/10G/25G) for flexible migrations
- Hot-swappable redundant power supplies and fans
- Front-to-rear airflow for consistent data center thermal management
- Zero Touch Provisioning (ZTP) for automated deployment
- NetDB and network-wide telemetry streaming
- Advanced security with ACLs, port security, and dynamic segmentation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

24x 10/100/1000BASE-T RJ45 PoE+ ports (802.3af/at/bt)
- 6x 25G SFP28 uplink ports
- PoE Budget: 583W (single PSU), 1113W (dual 650W PSU), up to 1853W (dual 1050W PSU)
- Switching Capacity: 348 Gbps
- Forwarding Rate: 259 Mpps
- Latency: 1.2 microseconds
- Power Supply: 2x 650W AC (redundant, front-to-rear airflow)
- MAC Address Table: 32K entries
- Layer 2 and Layer 3 routing with EVPN VXLAN support
- Management: CLI, Web UI, SNMP, CloudVision
- Operating Temperature: 0°C to 40°C
- Form Factor: 1RU rack-mountable
- Dimensions: Standard 1U 19-inch rack width
- System Power Consumption: 67W idle, 90W typical (excluding PoE)

FAQs

Q: What is the maximum PoE budget available on the CCS-720XP-24Y6-2F?
A: With dual 650W AC power supplies installed, the switch provides up to 1113W PoE budget. The system can support up to 1853W PoE budget if upgraded to dual 1050W PSUs. With a single 650W PSU, it delivers 583W for PoE devices.

Q: Does this switch support stacking or redundancy features?
A: The CCS-720XP-24Y6-2F supports N+1 redundant power supplies with dual hot-swappable PSUs and three field-replaceable fans. It integrates with Arista's cognitive campus architecture for centralized management via CloudVision but does not use traditional stacking cables.

Q: What PoE power levels are supported per port?
A: The switch supports 802.3af, 802.3at, and 802.3bt standards, delivering from 15W to 60W per RJ45 port. This enables support for high-power devices including Wi-Fi 6 access points, PTZ cameras, digital signage, and VoIP phones.

Q: Is this switch suitable for IoT and campus edge deployments?
A: Yes, the 720XP series is specifically designed for cognitive campus IoT environments. It supports 802.1X authentication, RADIUS integration, automatic VLAN segmentation, EVPN VXLAN overlays, and real-time telemetry through CloudVision for complete visibility and control.

Q: What uplink speed and media options are available?
A: The switch includes 6x 25G SFP28 uplink ports that support multi-rate SFP+ and SFP28 modules at 1G, 10G, and 25G speeds. This provides flexibility for connecting to legacy 10G infrastructure while supporting future 25G upgrades using the same optics.
