Arista

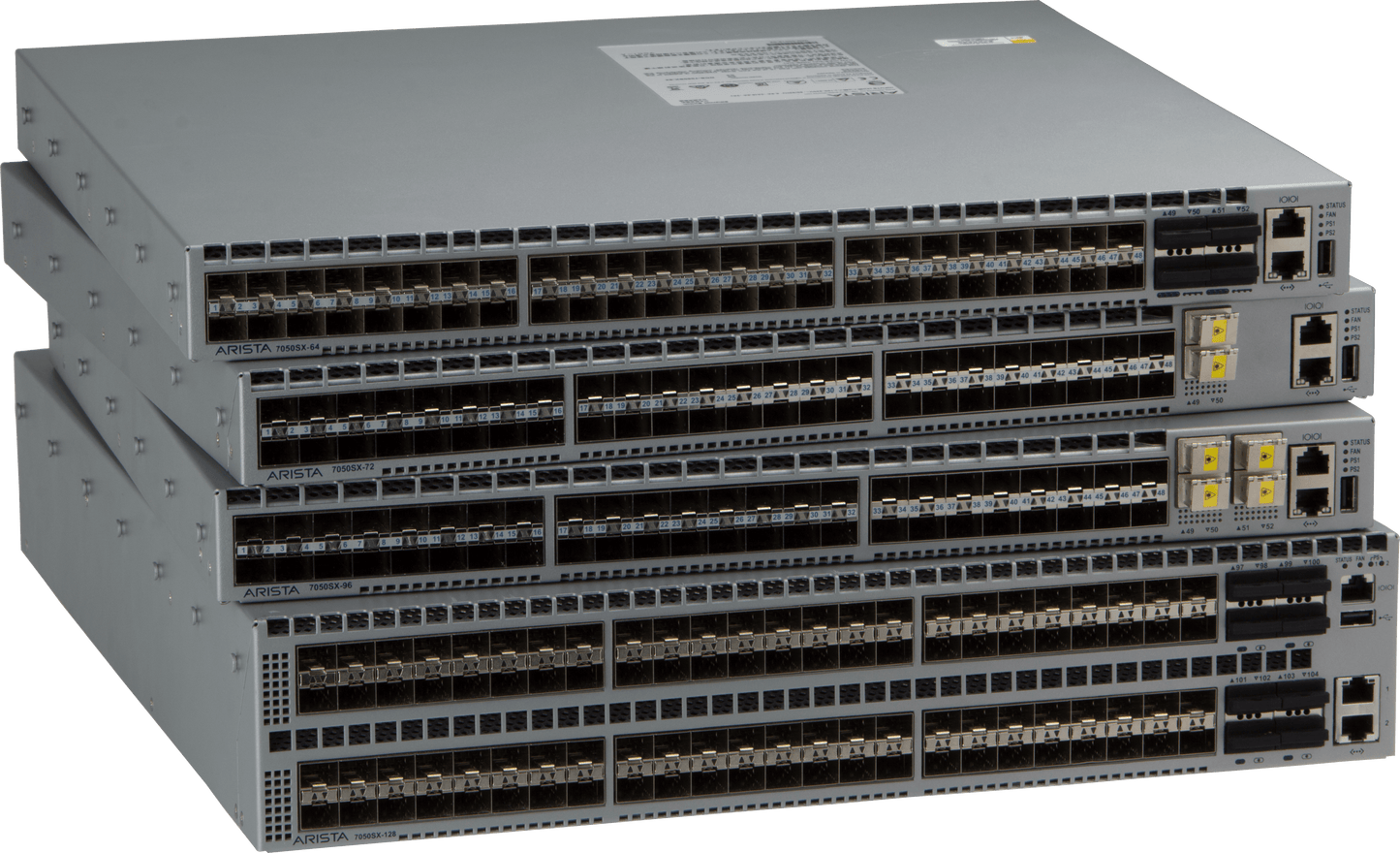

Arista DCS-7050SX-128-F | 7050SX-128 96-Port 10G SFP+ Switch, Front-to-Rear Airflow

SKU:DCS-7050SX-128-F

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7050SX-128 is a 2RU fixed data centre leaf switch from the 7050X family, built for 10/40GbE leaf and spine switching, east-west traffic, high-performance compute and low-latency leaf-spine fabrics. It also suits migrations from 1/10G to 10/40G networks.

It provides 96 x 1/10GbE SFP+ ports and 8 x 40GbE QSFP+ ports, with 2.56 Tbps throughput, 1440 Mpps forwarding and 550 ns latency. A 12MB dynamic shared packet buffer handles bursty traffic. The -F variant has front-to-rear airflow, dual hot-swap AC power supplies in a 1+1 configuration and four N+1 fans. There is no PoE, and typical and maximum power draw is 235W and 415W. It ships with the base EOS Layer 2 and Layer 3 feature set, and optional EOS Group 2 licences add features such as enhanced L3 routing, VXLAN, and monitoring and automation tools.

The SFP+ ports accept 10GBASE-CR, AOC, SR, LR, ER, ZR and DWDM optics as well as 1GbE and 100/1000BASE-T modules. The QSFP+ ports accept 40GBASE-CR4, AOC, SR4, LR4 and ER4 optics. The switch requires EOS 4.13.0 or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding with 550 ns cut-through latency
- Arista EOS with a single binary image, Linux shell access and stateful fault repair
- MLAG, 64-way LAG, 64-way ECMP, VRF, BGP, OSPF, IS-IS and PIM routing
- VXLAN routing, bridging and gateway support with VM Tracer
- LANZ microburst detection, DANZ mirroring, sFlow and Zero Touch Provisioning
- CloudVision, eAPI, OpenFlow and DirectFlow for automation and programmability
- Smart System Upgrade and Accelerated Software Upgrade
- Unified Forwarding Table with configurable L2/L3 resource partitioning
- Redundant hot-swap power supplies and fans with tool-less rails

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 96 x 1/10GbE SFP+, 8 x 40GbE QSFP+
- Throughput: 2.56 Tbps
- Forwarding rate: 1440 Mpps
- Latency: 550 ns
- Packet buffer: 12MB dynamic shared
- CPU: Quad-core x86
- System memory: 8 GB
- Flash storage: 4 GB
- Management ports: 2 x 10/100/1000
- Serial console: 1 x RJ-45 RS-232
- USB ports: 1
- Power supplies: 2 x hot-swap AC (1+1 redundant)
- Fans: 4 hot-swap (N+1 redundant)
- Airflow: Front-to-rear
- Power consumption: 235W typical, 415W maximum
- PoE: None
- Form factor: 2RU
- Dimensions (W x H x D): 48.3 x 8.8 x 45.9 cm
- Weight: 15.1 kg
- Operating temperature: 0 to 40 C
- MAC addresses: 32K (base mode), 288K (UFT modes)
- IPv4 hosts: 16K (base mode), 208K (UFT modes)
- ECMP: 64-way, 1K groups
- Minimum EOS version: 4.13.0

FAQs

Q: Does this switch need a licence?
A: It ships with the base EOS Layer 2 and Layer 3 feature set. Optional EOS Group 2 licences such as LIC-FIX-2-E for enhanced L3, LIC-FIX-2-V for VXLAN and LIC-FIX-2-Z for monitoring and automation add further features.

Q: What power supplies does it use?
A: It uses dual hot-swap AC power supplies in a 1+1 redundant configuration. Compatible front-to-rear supplies include PWR-500AC-F and PWR-750AC-F. Typical draw is 235W and maximum is 415W.

Q: Which optics and cables work in the ports?
A: The SFP+ ports support 10GBASE-CR, AOC, SR, LR, ER, ZR and DWDM optics plus 1GbE modules. The QSFP+ ports support 40GBASE-CR4, AOC, SR4, LR4 and ER4. QSFP+ to 4x SFP+ breakout is not supported on this model.

Q: What does the -F suffix mean?
A: The -F variant has front-to-rear airflow with dual AC power supplies, which differs from reverse-airflow variants of the 7050SX-128.

Q: Does it provide PoE?
A: No. The 7050SX-128 is a data centre switch with no Power over Ethernet.
