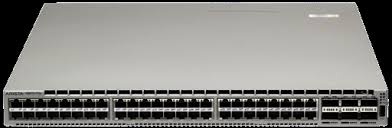

Arista DCS-7050TX-48-F | 7050TX 32-Port 10G-T Switch, 4x 40G QSFP+, Front-to-Rear
SKU:DCS-7050TX-48-F
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Arista 7050TX is a 1RU data centre switch built for high-density 10GBASE-T server access and top-of-rack leaf deployments. Copper 10G cabling lets teams move from 1G to 10G without recabling, which suits virtualised, cloud and big-data environments running Arista EOS.
This DCS-7050TX-48-F provides 32 auto-negotiating 100M/1G/10GBASE-T RJ45 ports and 4 QSFP+ 40GbE uplinks. It delivers 960 Gbps of throughput and 720 Mpps of forwarding with 3 microsecond latency from the RJ45 ports to the uplinks, backed by a 12 MB dynamic packet buffer. The -F suffix denotes front-to-rear airflow, with two hot-swap AC power supplies in a 1+1 redundant arrangement and four N+1 hot-swap fans. It is a non-PoE switch drawing 305 W typical and 367 W maximum.
The QSFP+ ports work with Arista 40GBASE-CR4, AOC, SR4, LR4 and ER4 options, along with QSFP+ to 4x SFP+ breakout cables. Spare fan modules for this airflow direction are FAN-7000-F.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Wire-speed Layer 2 and Layer 3 forwarding
- VXLAN and VM Tracer support
- OpenFlow, DirectFlow and eAPI programmability
- 288K MAC entries, 144K IPv4 routes and 208K IPv4 host routes
- Zero Touch Provisioning (ZTP) for simple deployment
- LANZ microburst detection and DANZ advanced mirroring with tap aggregation
- IEEE 1588 PTP and sFlow telemetry
- Single-binary Arista EOS with full Linux shell access, bash, Python and C++ extensibility
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 32 x 100M/1G/10GBASE-T (RJ45)
- Uplinks: 4 x 40GbE QSFP+
- Throughput: 960 Gbps
- Packet forwarding: 720 Mpps
- Latency (RJ45 to uplinks): 3 usec
- Packet buffer: 12 MB dynamic allocation
- CPU: Quad-core x86
- System memory: 4 GB
- Flash storage: 4 GB
- Management: 1 x 10/100/1000 port, 1 x RS-232 serial (RJ-45), 1 x USB
- Power supplies: 2 x hot-swap AC, 1+1 redundant
- Power supply input: 100-240 VAC, 50/60 Hz, IEC C13
- Fans: 4 x hot-swap, N+1 redundant
- Airflow: Front-to-rear (-F)
- Power draw: 305 W typical, 367 W maximum
- PoE: Not supported
- Dimensions (W x H x D): 48.3 x 4.4 x 40.2 cm (1RU)
- Weight: 7.7 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -25 to 70 C
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 3,000 m
FAQs
Q: Does this switch need a separate licence to run?
A: It runs Arista EOS with the base feature set. Optional feature licences are available separately, such as LIC-FIX-2-E for Enhanced L3 with BGP, OSPF, ISIS and PIM, LIC-FIX-2-V for VMTracer and VXLAN, and LIC-FIX-2-Z for ZTP, LANZ and TapAgg.
Q: What power supplies does the DCS-7050TX-48-F use?
A: It uses two hot-swap AC power supplies in a 1+1 redundant configuration. The compatible supply is the PWR-500AC, rated for 100-240 VAC at 50/60 Hz with an IEC C13 inlet.
Q: Does it support PoE?
A: No. This is a non-PoE data centre switch. It draws 305 W typical and 367 W maximum from its AC power supplies.
Q: What can I connect to the QSFP+ uplink ports?
A: The QSFP+ ports support 40GBASE-CR4 copper cables, 40GBASE-AOC, and optics including SR4, LR4 and ER4. QSFP+ to 4x SFP+ 10GBASE-CR breakout cables are also supported.
Q: What does the -F in the SKU mean?
A: The -F denotes front-to-rear airflow. Matching spare fan modules for this airflow direction are the FAN-7000-F.
