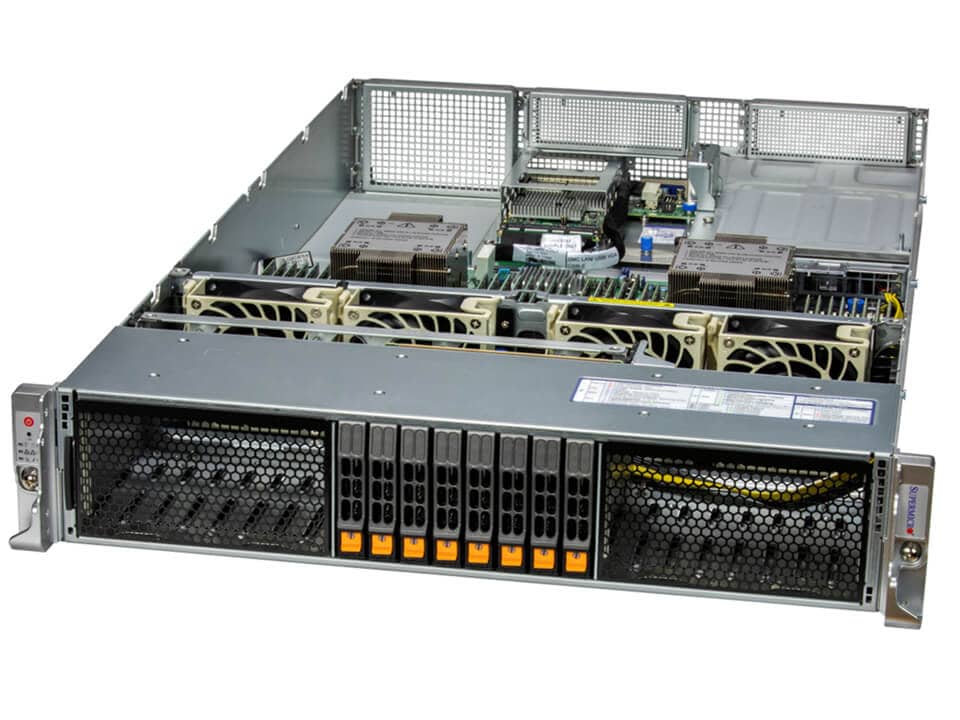

• Silver supermicro sys-221h-tnr 2u dual xeon scalable server with multiple drive bays and cooling fans visible inside
1 1

Supermicro

Supermicro SYS-221H-TNR | X13 Hyper 2U Dual Xeon Server, 8x 2.5" Bays, 2x 1200W

SYS-221H-TNR

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Supermicro SYS-221H-TNR is a 2U dual-socket rackmount server in the X13 Hyper SuperServer range, built on the Super X13DEM board for 5th and 4th Gen Intel Xeon Scalable processors. It is aimed at virtualisation, software-defined storage, cloud computing and AI inference or machine learning workloads that need dense memory and GPU expansion in a compact chassis.

Memory and storage are the headline numbers. There are 32 DIMM slots supporting up to 8TB of DDR5 ECC RDIMM, with 4TB at 5600MT/s in a one DIMM per channel layout and 8TB at 4400MT/s at two DIMMs per channel. This SKU has 8 front hot-swap 2.5" NVMe/SAS/SATA bays, with an optional 16-bay layout, plus 2 M.2 NVMe/SATA slots. Expansion is 4 PCIe 5.0 x16 double-width slots and 2 PCIe 5.0 x16 AIOM (OCP NIC 3.0) slots, or an alternative 8 PCIe 5.0 x8 slot layout. It accepts up to 4 double-width or 8 single-width GPUs and up to 4 CXL 1.1 devices. Power comes from 2 x 1200W redundant Titanium Level (96%) hot-plug supplies.

No licence is needed to operate the server. Supported GPUs include NVIDIA H100, H100 NVL, A100, A16, A40, L4, L40, L40S, RTX A4000 and RTX A6000, and certified operating systems include VMware ESXi 7.0 U3 and 8.0, RHEL, SLES and Windows Server 2022 and 2025.

Enquire with XS Network Tech for Configured to order Used servers.

Features

- Dual 5th and 4th Gen Intel Xeon Scalable processor support
- 32 DDR5 DIMM slots for up to 8TB of memory
- PCIe 5.0 layouts for up to 4 double-width or 8 single-width GPUs
- Up to 2 AIOM (OCP NIC 3.0) networking slots
- Hot-swap NVMe/SAS/SATA bays with an optional 16-bay configuration
- Hot-swap heavy duty fans with optimal fan speed control
- Optional direct-to-chip liquid cooling
- Hardware root of trust, TPM 2.0 and Secure Boot

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Motherboard: Super X13DEM
- Chassis: CSE-HS219-R1K24P
- Form factor: 2U rackmount
- Processor: Dual Socket E (LGA-4677), 5th Gen and 4th Gen Intel Xeon Scalable, up to 64C/128T per CPU
- Cache: up to 320MB per CPU
- CPU TDP support: up to 350W, air or liquid cooled
- Memory: 32 DIMM slots, up to 8TB DDR5 ECC RDIMM
- Memory speed: 4TB at 5600MT/s (1DPC), 8TB at 4400MT/s (2DPC)
- Drive bays: 8 x 2.5" hot-swap NVMe/SAS/SATA (optional 16)
- M.2: 2 slots, NVMe/SATA (M-key 2280/22110)
- Expansion: 4 PCIe 5.0 x16 double-width + 2 PCIe 5.0 x16 AIOM (OCP 3.0), or 8 PCIe 5.0 x8 + 2 AIOM
- GPU support: up to 4 double-width or 8 single-width
- CXL support: up to 4 CXL 1.1 devices
- Onboard storage: SATA 6Gbps RAID 0/1/5/10, NVMe RAID 0/1/5/10 (Intel VROC key required)
- Network: via AIOM, plus 1 x dedicated 1GbE BMC LAN port
- I/O: 2 USB 2.0 (rear), 2 USB 3.0 (header), 1 VGA
- Cooling: up to 4 x 8cm heavy duty fans, optional Direct to Chip liquid cooling
- Power supply: 2 x 1200W redundant Titanium Level (96%) hot-plug
- PSU input: 800W at 100-127Vac, 1200W at 200-240Vac
- Security: TPM 2.0, Silicon Root of Trust, Secure Boot
- Dimensions (W x H x D): 437 x 88.9 x 760 mm
- Weight: 18.2 kg net
- Operating temperature: 10 to 35 C

FAQs

Q: Does this server need a licence?
A: No licence is needed to operate it. Supermicro's SFT-DCMS-Single DataCenter Management Package is optional and sold separately, and NVMe RAID through Intel VROC needs a separate key.

Q: Which GPUs does it support?
A: It supports NVIDIA PCIe GPUs including H100, H100 NVL, A100, A16, A40, L4, L40, L40S, RTX A4000 and RTX A6000, up to 4 double-width or 8 single-width cards.

Q: What power supplies does it use?
A: It uses 2 x 1200W redundant hot-plug Titanium Level (96%) supplies, part number PWS-1K24A-1R. Optional 1600W, 2000W and 2600W supplies are available as PWS-1K63A-1R, PWS-2K07A-1R and PWS-2K63A-1R.

Q: Which rail kits and accessories fit it?
A: Compatible rail kits are MCP-290-11901-0N (41"), MCP-290-11902-0N (35.25") and MCP-290-11903-0N (30.5"). The cable management arm is MCP-290-00168-0N.

Q: How is networking provided?
A: Network connectivity is added through the two PCIe 5.0 x16 AIOM slots, which take OCP NIC 3.0 compatible cards. A dedicated 1GbE port is provided for BMC management.
