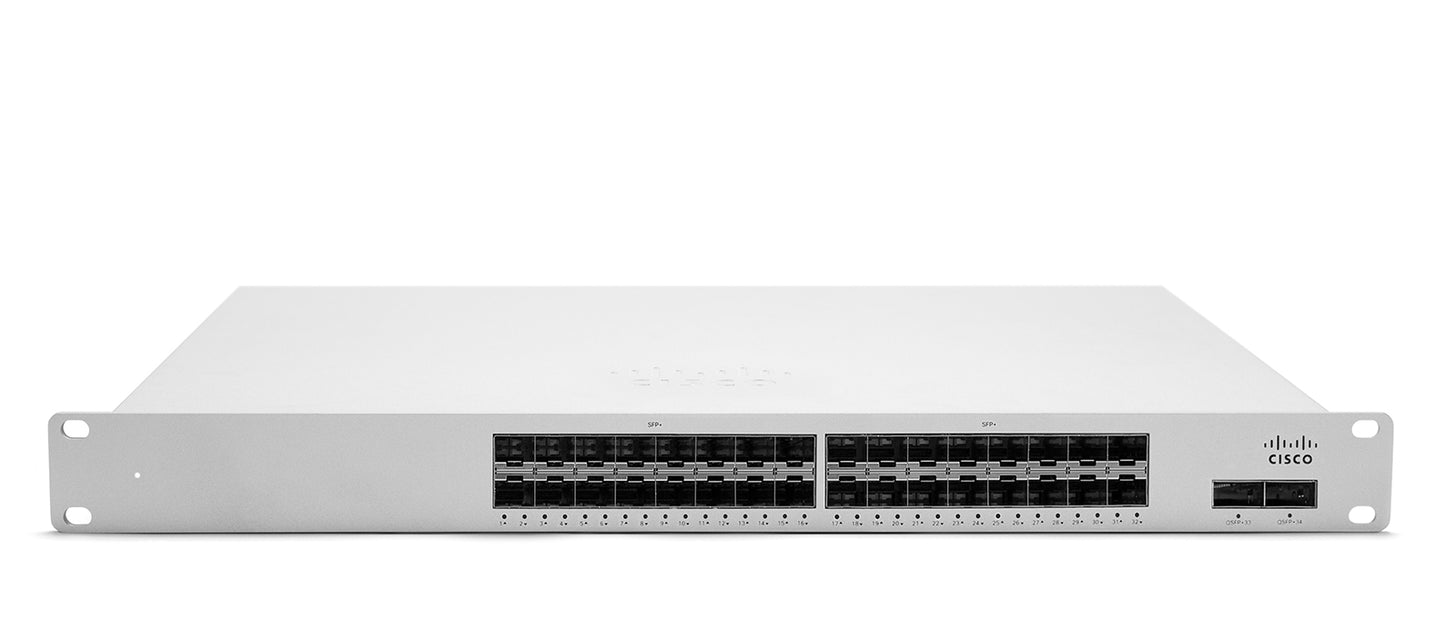

• Cisco Meraki MS425-32-HW silver rackmount switch with 10G SFP+ ports
1 1

Meraki

Meraki MS425-32-HW | MS425 32-Port 10G SFP+ Switch, 2x 40G QSFP+, 800Gbps

MS425-32-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS425-32 is a cloud-managed Layer 3 aggregation switch from the Meraki MS425 Series. It suits the aggregation or distribution layer of medium-size campus networks that need 10G and 40G fibre connectivity, Layer 3 routing and centralised management through the Meraki Dashboard.

The switch provides 32 x 10GbE SFP+ ports and 2 x 40GbE QSFP+ uplink and stacking ports, with 800 Gbps of switching capacity and 160 Gbps of stacking bandwidth. A dedicated RJ45 interface handles management. It has no PoE. Power comes from dual hot-swappable 250W AC power supplies, with a load of 98 W at idle and 136 W at maximum, and hot-swappable fans keep it cooled in a 1U rack-mount chassis.

This MS425-32-HW is the hardware SKU and requires a Meraki per-device Enterprise switch licence, such as LIC-MS425-32-xYR, for Dashboard cloud management. The 40G QSFP+ ports stack with other MS425 switches using Meraki 40GbE cables (MA-CBL-40G-50CM, MA-CBL-40G-1M, MA-CBL-40G-3M), and the field-replaceable fan is MA-FAN-18K.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud management through the Meraki Dashboard with zero-touch provisioning
- Virtual Stacking to configure ports from the Dashboard without physical stacking
- Layer 3 switching including OSPF
- 802.1Q VLAN tagging and 802.1X authentication
- Dynamic ARP Inspection, DHCP Snooping and IPv4/IPv6 ACL support
- Remote packet capture and cable test tools via the Dashboard
- Automatic firmware upgrades with SNMP and Syslog integration
- Hot-swappable power supplies and fans, warm spare capable

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 10GbE SFP+ ports: 32
- 40GbE QSFP+ ports: 2
- Dedicated management interface: 1 x RJ45
- PoE: None
- Switching capacity: 800 Gbps
- Stacking bandwidth: 160 Gbps
- Layer 3 routing: Yes, including OSPF
- Power supply: Dual hot-swappable 250W AC (MA-PWR-250WAC)
- Power load (idle/max): 98 / 136 W
- Hot-swap fans: Yes, x3 (MA-FAN-18K)
- Mounting: 1U rack mount
- Dimensions (H x W x D): 4.42 x 48.44 x 48.69 cm (1.72 x 19 x 20.67 in)
- Weight: 6.35 kg (14.00 lbs)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Humidity: 5% to 95%
- Maximum MTU: 9416 bytes (9394 when configured from Dashboard)

FAQs

Q: Does the MS425-32-HW need a licence?
A: Yes. It requires a Meraki per-device Enterprise switch licence, such as LIC-MS425-32-xYR, for Dashboard cloud management. The hardware does not operate without an active licence, and the licence is a separate item from this hardware SKU.

Q: Does this switch support PoE?
A: No. The MS425-32 has no PoE. It is an SFP+ and QSFP+ aggregation switch with no power-over-Ethernet output.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: What power supply does it use?
A: It uses 250W AC field-replaceable power supplies (MA-PWR-250WAC) in dual hot-swap bays for redundancy. Power load is 98 W at idle and 136 W at maximum.

Q: How do I stack MS425 switches?
A: MS425 switches stack through the 40G QSFP+ ports using Meraki 40GbE stacking cables: MA-CBL-40G-50CM, MA-CBL-40G-1M or MA-CBL-40G-3M. Stacking bandwidth is 160 Gbps.
