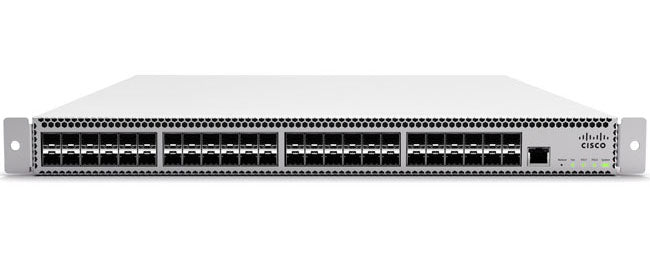

• Meraki MS420-48-HW silver switch with black ports and Ethernet port
1 1

Meraki

Meraki MS420-48-HW | MS420 48-Port 10G SFP+ Switch, 960 Gbps, Layer 3

MS420-48-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS420-48 is a cloud-managed Layer 3 aggregation switch from the MS420 range, built for campus and enterprise aggregation or distribution layers. It aggregates access switches over 10GbE and is managed from the Meraki cloud dashboard alongside Meraki wireless and security appliances.

The MS420-48 provides 48 x 10GbE SFP+/SFP ports and one 10/100/1000 RJ45 management port. Its non-blocking fabric delivers 960 Gbps of switching capacity with 1.2 microsecond latency, double the 480 Gbps of the 24-port MS420-24 model. Layer 3 features include static routing, OSPFv2, DHCP server and DHCP helper, with warm spare for gateway redundancy. Link aggregation supports up to 8 ports per bundle.

This hardware SKU requires a Meraki per-device cloud licence to operate and remain managed in the dashboard. It takes Meraki SFP and SFP+ modules such as SFP-1GB-SX, SFP-1GB-LX10, SFP-10GB-SR and SFP-10GB-LR, plus CBL-TA-1M twinax cable. The 1U chassis uses two hot-swappable 400W AC power supplies (PWR-MS420-400AC-R) with front-to-back airflow.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud management through the Meraki dashboard with no-touch remote deployment
- Hot-swappable power supplies and fans for field replacement
- Virtual stacking to manage large numbers of ports from one dashboard
- Layer 3 routing with OSPFv2, DHCP server and DHCP helper
- QoS, 802.1X, DHCP snooping, STP/RSTP, LLDP/CDP, IGMP snooping and storm control
- Layer 7 OS, client and hostname fingerprinting
- Email and SMS alerts with role-based administration
- Automatic scheduled firmware upgrades

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Interfaces: 48 x 10GbE SFP+/SFP
- Management port: 1 x 10/100/1000 RJ45
- Switching capacity: 960 Gbps (non-blocking fabric)
- Latency: 1.2 microseconds
- Layer 3: static routing, DHCP helper, DHCP server, OSPFv2
- Link aggregation: 802.3ad, up to 8 ports per aggregate
- Power supplies: 2 x 400W hot-swappable AC (PWR-MS420-400AC-R)
- Power input: 100-240 VAC, 47-63 Hz
- Power consumption at idle: 45 W
- Power consumption at full load: 175 W
- Operating temperature: 0 to 40 C
- Dimensions (W x D x H): 44 x 47.3 x 4.5 cm
- Weight: 8.18 kg
- Mounting: 1U rack-mount
- Airflow: Front-to-back
- MTBF: 203,102

FAQs

Q: Does the MS420-48-HW need a licence?
A: Yes. It requires a Meraki per-device cloud licence (MS420-48) to operate and stay managed in the dashboard. The licence covers software upgrades and centralised management.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: Which optics and cables does it work with?
A: It accepts Meraki SFP and SFP+ modules including SFP-1GB-SX, SFP-1GB-LX10, SFP-10GB-SR and SFP-10GB-LR, plus CBL-TA-1M twinax cable.

Q: Does the MS420-48 have dedicated stacking ports?
A: No. Units are linked over SFP+ ports or virtually stacked in the Meraki dashboard.

Q: How does it differ from the MS420-24-HW?
A: The MS420-48-HW has 48 x 10GbE SFP+ ports and 960 Gbps of switching capacity, while the MS420-24-HW has 24 ports and 480 Gbps.

Q: What power supplies does it use?
A: It uses two hot-swappable 400W AC power supplies, part number PWR-MS420-400AC-R, with a 100-240 VAC input.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
