Meraki

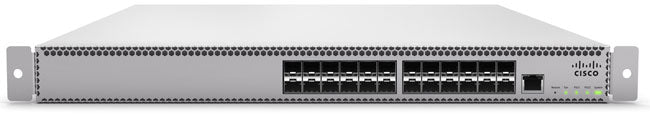

Meraki MS420-24-HW | MS420 24-Port 10G SFP+ Aggregation Switch, 480 Gbps

MS420-24-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS420-24 is a cloud-managed Layer 3 aggregation switch from the Meraki MS400 range. It is built for campus and data-centre aggregation or core layers, where 10GbE uplinks from multiple access switches need to be consolidated in a single 1RU chassis and managed centrally from the Meraki dashboard.

The switch provides 24 x 10GbE SFP+/SFP ports and a dedicated 10/100/1000 RJ45 management port, with 480 Gbps of switching capacity on a non-blocking fabric and 1.2 microsecond latency. The MAC table holds 128K entries and 802.1Q tagging supports up to 4095 VLANs. Layer 3 features include static routing, OSPFv2, DHCP server and helper, and warm spare gateway redundancy. Idle power draw is 45 W and full load is 175 W. This is the hardware-only SKU, so cloud management requires a separate Meraki MS420-24 Enterprise licence (LIC-MS420-24-xYR).

It works with SFP/SFP+ optics and 10GbE twinax cables, and stacks virtually through the Meraki dashboard rather than dedicated stacking ports. It pairs naturally with Meraki wireless and security appliances for a fully cloud-managed network.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud management through the Meraki dashboard with zero-touch provisioning
- Virtual stacking to manage large numbers of ports from a single dashboard
- Hot-swappable, field-replaceable power supplies and fans
- 802.1X port-based access control, MAC-based RADIUS authentication and MAC whitelisting
- Voice VLAN, port mirroring, DHCP snooping, IGMP snooping and LACP
- Layer 7 OS, client and hostname fingerprinting
- Email and SMS alerts, role-based administration and scheduled firmware upgrades

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: MS420-24 cloud-managed aggregation switch
- Interfaces: 24 x 10GbE SFP+/SFP
- Management port: 1 x 10/100/1000 RJ45
- Switching capacity: 480 Gbps
- Fabric: Non-blocking
- Latency: 1.2 microseconds
- MAC forwarding table: 128K entries
- VLANs: 802.1Q tagging for up to 4095 VLANs
- Link aggregation: 802.3ad, up to 8 ports per aggregate
- Layer 2 protocols: 802.1p QoS, STP/RSTP, LLDP, CDP, IGMP snooping, broadcast storm control
- Layer 3: static routing, DHCP helper, DHCP server, OSPFv2, warm spare
- Power input: 100-240 VAC, 47-63 Hz
- Power supply: field-replaceable 400 W AC, PWR-MS420-400AC-R, hot-swappable
- Power consumption: 45 W idle, 175 W full load
- Cooling: front-to-back airflow, hot-swappable fans
- Operating temperature: 0 to 40 C
- Dimensions (W x D x H): 44 x 47.3 x 4.5 cm
- Form factor: 1RU rack-mount
- MTBF: 225,540 hours

FAQs

Q: Does the MS420-24-HW include a Meraki licence?
A: No. The -HW SKU is hardware only. Dashboard management requires a Meraki MS420-24 Enterprise licence (LIC-MS420-24-xYR), and the switch cannot be managed from the cloud without a valid licence.

Q: What power supply does the MS420-24 use?
A: It uses a field-replaceable, hot-swappable 400 W AC supply, part number PWR-MS420-400AC-R, on 100-240 VAC input. The switch does not provide PoE.

Q: Does it have dedicated stacking ports?
A: No. The MS420 uses virtual stacking through the Meraki dashboard, which lets you manage multiple switches as one from the cloud.

Q: What optics and cables can I use in the SFP+ ports?
A: The 24 ports accept SFP and SFP+ optics and 10GbE twinax cables, including the Meraki-branded modules listed in the Meraki SFP datasheet.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
