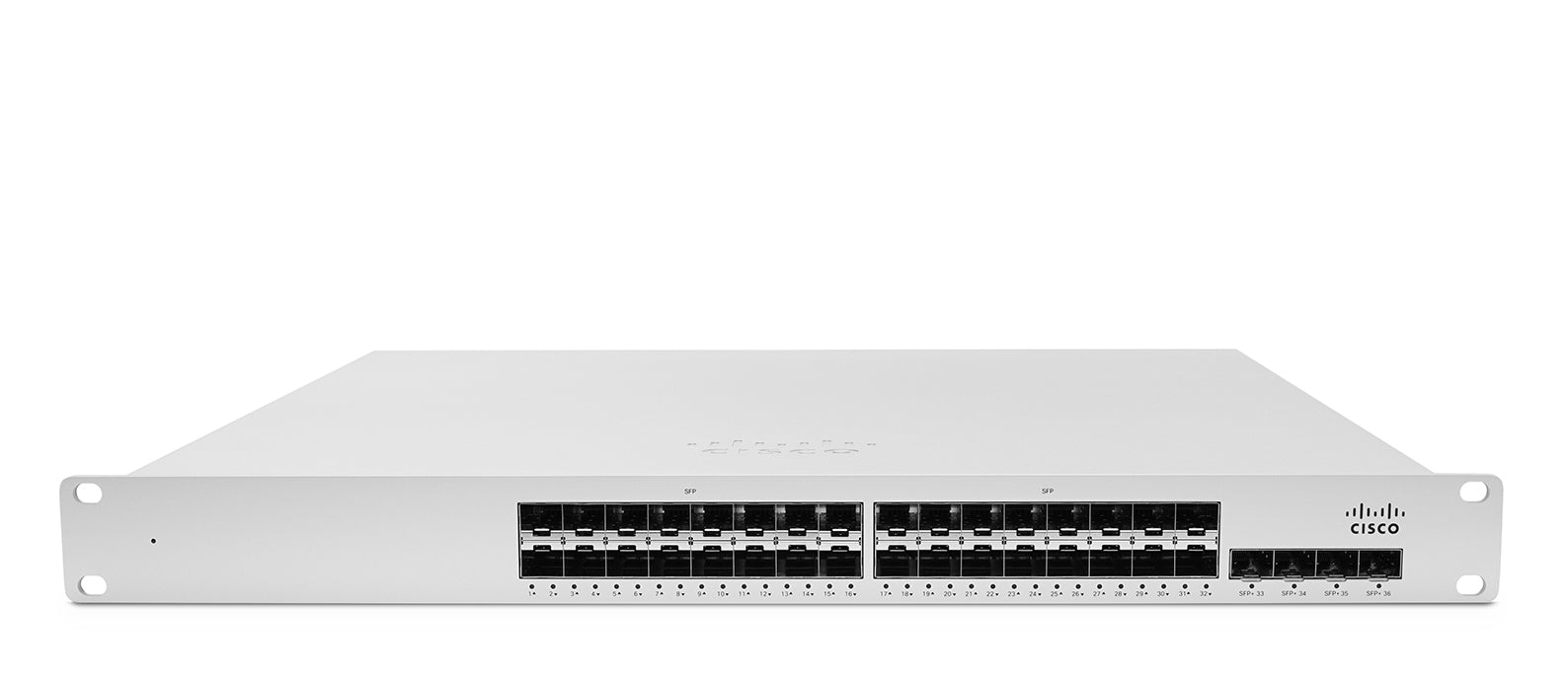

• Meraki MS410-32-HW silver cisco switch with black ports
1 1

Meraki

Meraki MS410-32-HW | MS410 32-Port Gigabit SFP Switch, 4x 10G SFP+

MS410-32-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS410 is a 1RU cloud-managed aggregation switch for medium-size enterprise and campus networks. It sits at the aggregation layer, bringing multiple access-layer switches together over fibre and is managed entirely through the Meraki dashboard with zero-touch provisioning.

This model provides 32 x 1G SFP ports and 4 x 10G SFP+ uplinks, with 144 Gbps of switching capacity on a non-blocking fabric with 1.2 microsecond latency. Two dedicated stacking ports deliver 160 Gbps of stacking bandwidth, and up to 8 switches can be physically stacked. It runs on a hot-swappable 250W AC power supply, with room for a second supply for redundancy. There is no PoE on this model.

The MS410-32-HW needs a Meraki MS410 licence to operate in the Meraki dashboard. Stacking and uplink cabling is available as MA-CBL-40G-50CM, MA-CBL-40G-1M and MA-CBL-40G-3M, and spare parts include the MA-PWR-250WAC power supply and the MA-FAN-16K fan.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud management via the Meraki dashboard with zero-touch provisioning
- Virtual Stacking for unified configuration of thousands of ports
- Physical stacking of up to 8 switches with multichassis link aggregation
- Field-replaceable, hot-swappable power supplies and fans
- Remote diagnostics including packet capture, ping, traceroute and cable testing
- 802.1X, MAB and hybrid authentication, IPv4/IPv6 ACLs, DHCP snooping and Dynamic ARP Inspection
- LLDP and CDP, port mirroring, IGMP snooping and LACP
- Automatic firmware upgrades with scheduling

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: MS410-32-HW
- Interfaces: 32 x 1G SFP
- Uplinks: 4 x 10G SFP+
- Stacking ports: 2
- Management port: 1 x RJ45
- Switching capacity: 144 Gbps
- Stacking bandwidth: 160 Gbps
- Physical stacking: up to 8 switches
- Latency: 1.2 microseconds
- Jumbo frame support: 9578 byte Ethernet frame
- MAC forwarding entries: 96K
- VLAN support: 802.1Q, up to 4,094 VLANs
- QoS: 802.1p, 8 queues (6 configurable for DSCP-to-CoS mapping)
- Link aggregation: 802.3ad, up to 8 ports per aggregate
- Layer 3: Static routing, OSPFv2, multicast routing, Warm Spare (VRRP), DHCP relay, DHCP server
- Form factor: 1RU rack-mount, front-to-back cooling
- Dimensions (H x W x D): 4.37 x 48.46 x 51.66 cm, depth includes PSU
- Weight: 5.7 kg
- Power input: 100-240 VAC, 47-63 Hz
- Power consumption idle / full load: 50 / 85 W
- Power supply: Hot-swappable, supports 2 x 250W PSU
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95% non-condensing
- MTBF: 291,729 hours
- Regulatory: CSA, IC, FCC, CE, C-Tick (Australia/NZ), RoHS

FAQs

Q: Does the MS410-32-HW need a licence?
A: Yes. A Meraki MS410 licence is required for the switch to operate in the Meraki dashboard. The licence is purchased separately from the -HW hardware SKU.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: Does this switch support PoE?
A: No. The MS410-32 has no PoE. It runs from a 250W AC power supply with 100-240 VAC input, drawing about 50 W idle and 85 W at full load.

Q: Can I add a second power supply for redundancy?
A: Yes. The switch has hot-swappable power supply bays and supports two 250W PSUs. The spare unit is the MA-PWR-250WAC.

Q: Which cables are used for stacking the MS410?
A: Stacking and uplink cabling uses the Meraki MA-CBL-40G-50CM, MA-CBL-40G-1M and MA-CBL-40G-3M cables. Up to 8 switches can be physically stacked.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
