Meraki

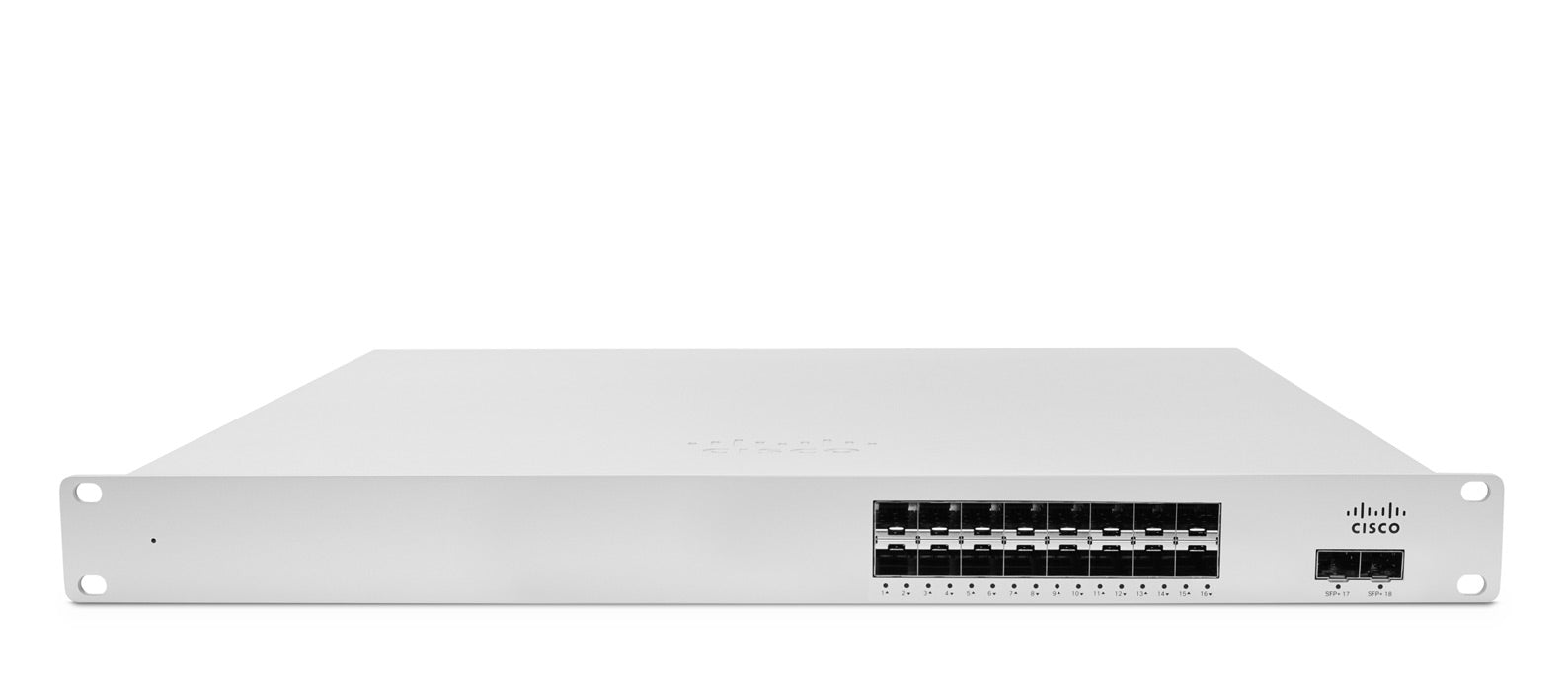

Meraki MS410-16-HW | Meraki MS410 16-Port Gigabit SFP Switch, 2x 10G SFP+

MS410-16-HW

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Meraki MS410-16-HW is a cloud-managed Layer 3 aggregation switch designed for medium-sized enterprise networks requiring fiber connectivity. With 16 Gigabit SFP ports and dual 10 Gigabit SFP+ uplinks, it delivers 72 Gbps switching capacity and supports both physical stacking up to 8 units with 160 Gbps bandwidth and virtual stacking for simplified centralized management. Managed entirely through the Meraki Dashboard, the switch features hot-swappable components, redundant power supply support, and advanced routing capabilities including OSPF for versatile campus deployments.

Features

100% cloud-managed through Meraki Dashboard with zero-touch provisioning
- Layer 3 switching with OSPF, static routing, and inter-VLAN routing
- Layer 7 application visibility and client fingerprinting
- 802.1X authentication and DHCP snooping for network security
- IPv4 and IPv6 ACL support
- VRRP warm spare redundancy for high availability
- 802.3ad LACP link aggregation with up to 8 ports per aggregate
- Multi-chassis link aggregation on stacked switches
- Voice and video QoS prioritization
- STP enhancements (802.1D, 802.1w rapid spanning tree)
- VLAN support (802.1Q) with up to 4,094 VLANs
- Non-blocking switch fabric for full wire-speed performance
- Per-port and per-client usage statistics with historical data
- Remote troubleshooting: live packet capture, cable test, connectivity test
- SNMP and Syslog integration for third-party monitoring
- Automatic firmware updates with scheduling control
- Email and SMS alerts for switch events and thresholds
- Centralized configuration templates for mass deployment
- Local status page for static IP configuration
- Hot-swappable redundant power supplies and fans

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

16x 1 Gigabit Ethernet SFP fiber ports
- 2x 10 Gigabit Ethernet SFP+ uplink ports
- 2x dedicated 40G hardware stacking ports
- Switching capacity: 72 Gbps
- Forwarding rate: 53.57 Mpps
- Physical stacking: up to 8 switches with 160 Gbps bandwidth
- Virtual stacking: thousands of switch ports in single logical stack
- Layer 3 switching with OSPF routing
- MAC forwarding entries: up to 96,000
- Power consumption: 56W idle / 66W full load
- Dual hot-swappable power supply slots (1x MA-PWR-250WAC included)
- Hot-swappable fans (2x MA-FAN-16K included)
- Dimensions: 1.7" H x 20.3" W x 19.1" D
- Weight: 12.6 lbs
- 1RU rack-mountable
- RJ45 management port for local configuration

FAQs

Q: What type of SFP modules are compatible with the MS410-16-HW?
A: The MS410-16-HW supports both Cisco and third-party SFP modules without vendor lock-out. The 16 front ports accept 1 Gigabit SFP modules for fiber connectivity, while the 2 uplink ports accept 10 Gigabit SFP+ modules. Detailed compatible optics are listed in the Meraki SFP datasheet.

Q: Can the MS410-16-HW be stacked with other Meraki switches?
A: Yes, the MS410-16-HW supports both physical and virtual stacking. Physical stacking connects up to 8 switches using dedicated 40G stacking cables with 160 Gbps of stacking bandwidth. Virtual stacking allows thousands of ports across multiple switches to be managed as a single logical unit through the Meraki Dashboard without physical connections.

Q: Does the MS410-16-HW require a Meraki license to operate?
A: Yes, the MS410-16-HW requires an active Meraki Enterprise license subscription on a per-device, per-year basis to function. The license includes cloud management, firmware updates, advanced security features, and Layer 3 routing capabilities through the Meraki Dashboard. The hardware itself ships without an active license.

Q: What Layer 3 routing protocols does the MS410-16-HW support?
A: The MS410-16-HW supports full Layer 3 routing including static routing, OSPF dynamic routing, VRRP for warm spare redundancy, DHCP server and relay, IPv4 and IPv6 ACLs, and inter-VLAN routing. It can function as a distribution layer switch with advanced routing between network segments.

Q: Is the power supply redundant on the MS410-16-HW?
A: The MS410-16-HW has dual hot-swappable power supply slots and includes one 250W AC power supply (MA-PWR-250WAC). A second MA-PWR-250WAC can be purchased separately to enable full redundancy for mission-critical deployments. Both power supplies and fans are field-replaceable without downtime.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
