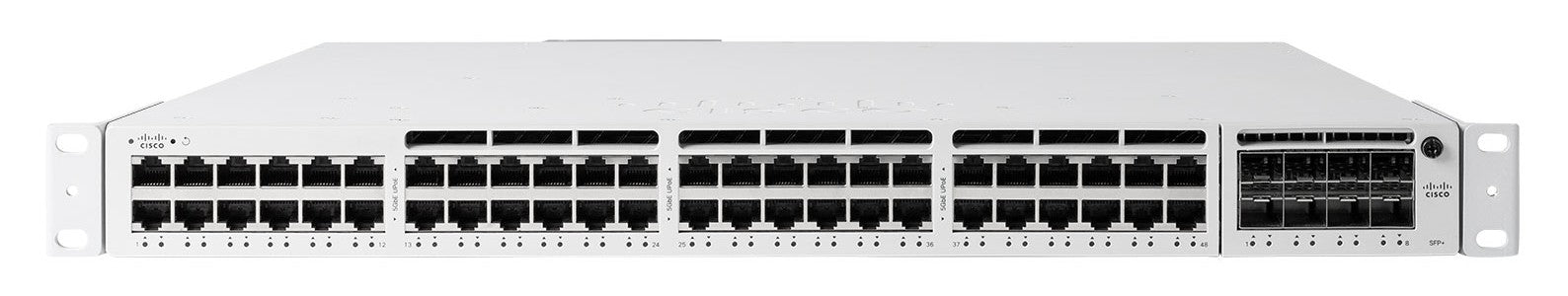

• Meraki MS390-48UX-HW L3 PoE Gigabit Ethernet switch in white
1 1

Meraki

Meraki MS390-48UX-HW | MS390 48-Port 2.5GbE/mGbE UPoE Switch, 1100W PSU

MS390-48UX-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS390 is a cloud-managed Layer 3 access switch built for enterprise wired access and campus deployments that need multigigabit and UPoE/802.3bt ports, such as high-speed Wi-Fi 6 access points. It is managed through the Meraki dashboard with zero-touch provisioning, and offers modular 10/40G uplinks, stacking and StackPower.

This MS390-48UX-HW model provides 36 x 2.5GbE RJ45 ports and 12 x multigigabit RJ45 ports that run up to 10G, all with UPoE at 60W per port. Switching capacity is 580 Gbps with a 431.54 Mpps forwarding rate. Two 120G stack ports give 480 Gbps of stacking bandwidth, and a dedicated management interface is fitted. It uses the 1100W AC power supply (MA-PWR-1100WAC) with a 490W PoE budget, and a second hot-swap supply lifts the budget as high as 1590W.

It needs a Meraki cloud licence to operate, in Enterprise or Advanced tiers using the 48-port licence. It works with the MA-MOD-2X40G and MA-MOD-8X10G uplink modules, MA-PWR-715WAC and MA-PWR-1100WAC power supplies, and MA-CBL-120G stacking cables. Cat-6a cabling is recommended for reliable multigigabit operation.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 switching with static routing, OSPFv2, PIM-ASM multicast routing, VRRP warm spare, DHCP server and relay
- Managed through the Meraki dashboard with zero-touch provisioning
- Adaptive Policy micro-segmentation using Security Group Tags (Advanced licence)
- Netflow v10 (IPFIX) and Encrypted Traffic Analytics (Advanced licence)
- Physical stacking of up to 8 switches, with StackPower in a ring topology across up to 4 switches
- 802.1X RADIUS and MAB, DHCP snooping, Dynamic ARP Inspection, IPv4 and IPv6 ACLs
- 802.1Q VLANs, MSTP, 802.3ad link aggregation with up to 8 ports per aggregate, IGMP snooping
- Remote diagnostics including packet capture, cable test, ping and traceroute, with alerts by email, SMS, mobile push, SNMP and syslog

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: MS390-48UX-HW
- Ports: 36 x 100M/1G/2.5G RJ45
- Multigigabit ports: 12 x 100M/1G/2.5G/5G/10G RJ45
- PoE: UPoE (60W per port) / IEEE 802.3bt
- Uplinks: Modular 10/40GbE (SFP+/QSFP+), module sold separately
- Stack ports: 2 x 120G hardware stack ports
- Stacking bandwidth: 480 Gbps
- Management interface: 1 x dedicated
- Switching capacity: 580 Gbps
- Forwarding rate: 431.54 Mpps
- Default power supply: MA-PWR-1100WAC (1100W AC)
- Hot swap power supply: Yes, dual
- PoE budget with primary PSU: 490 W
- Max PoE budget with secondary PSU: 1590 W
- Power load (idle/max): 218.5 / 785.5 W
- Hot swap fans: Yes, 3x
- Dimensions (h x w x d): 4.4 x 44.5 x 56.4 cm (1.73 x 17.5 x 22.2 in)
- Weight: 9.34 kg (20.50 lb)
- Mount type: 1U rack mount
- Operating temperature: -5 to 45 C
- Humidity: 5 to 90%
- MTBF at 25 C: 202,160 hours

FAQs

Q: Does the MS390-48UX-HW need a licence?
A: Yes. It requires a Meraki cloud licence to operate, in 1, 3, 5, 7 or 10 year terms. Choose Enterprise (LIC-MS390-48E) or Advanced (LIC-MS390-48A). Advanced adds Adaptive Policy and Netflow v10 with Encrypted Traffic Analytics.

Q: How much PoE power does it provide?
A: With the primary 1100W power supply the PoE budget is 490W. Adding a second hot-swap supply raises it to 840W with a 350W unit, 1205W with a 715W unit or 1590W with an 1100W unit. Each port supports UPoE at up to 60W.

Q: Which uplink modules and power supplies work with it?
A: The uplink modules are MA-MOD-2X40G and MA-MOD-8X10G. Compatible power supplies are MA-PWR-715WAC and MA-PWR-1100WAC. Stacking uses MA-CBL-120G cables, and StackPower uses MA-CBL-SPWR cables.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: What cabling is recommended for the multigigabit ports?
A: Cat-6a cabling is recommended for reliable multigigabit operation on the 2.5G, 5G and 10G ports.
