• Meraki MS390-48P-HW Cisco Catalyst 9300 switch with 48x1G PoE+ ports
1 1

Meraki

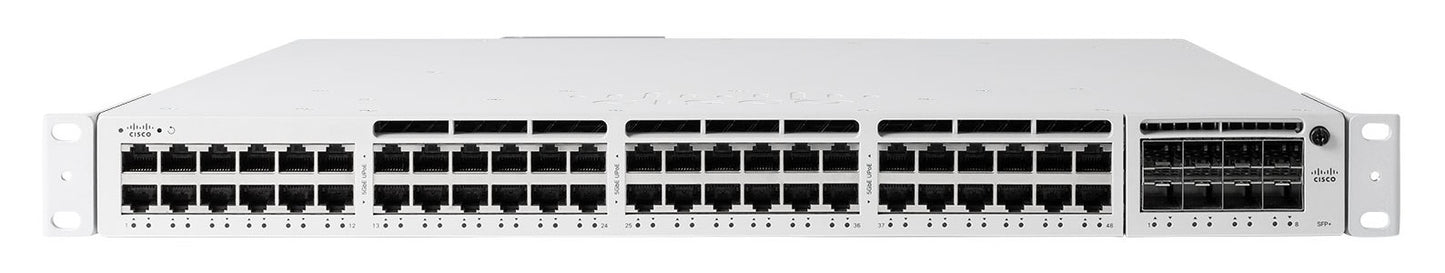

Meraki MS390-48P-HW | MS390 48-Port PoE+ Switch, 715W PSU, Modular 10G/40G

MS390-48P-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS390 is a cloud-managed, Layer 3 stackable access switch built for enterprise campus and branch wired access. It suits deployments that need PoE+ for phones, cameras and Wi-Fi 6 access points, with resilient power and micro-segmentation managed entirely from the Meraki dashboard.

This MS390-48P model provides 48 x 1GbE RJ45 PoE+ ports and modular 10G/40G uplinks. Two 120G hardware stacking ports deliver 480 Gbps of stacking bandwidth, with 256 Gbps switching capacity and a 190.48 Mpps forwarding rate. It ships with the 715W AC power supply for a 437W PoE budget, rising to 1152W with a second 715W supply fitted. Layer 3 features include static routing and OSPFv2. This is a hardware-only SKU, so a Meraki MS390 cloud licence (Enterprise or Advanced tier) is required separately.

Uplinks use the MA-MOD-2X40G and MA-MOD-8X10G modules. Power supplies, stacking cables, StackPower cables, fans and rack mounts are available as Meraki parts: MA-PWR-715WAC, MA-PWR-1100WAC, MA-CBL-120G series, MA-CBL-SPWR series, MA-FAN-16K2 and MA-RCKMNT.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 switching with static routing, OSPFv2, PIM-ASM multicast routing, VRRP warm spare, DHCP server and relay
- Physical stacking of up to 8 switches with 480 Gbps stacking bandwidth, plus virtual stacking
- StackPower in a ring topology supporting up to 4 switches
- Adaptive Policy micro-segmentation using Security Group Tags (Advanced licence)
- NetFlow v10 (IPFIX) and Encrypted Traffic Analytics (Advanced licence)
- Zero-touch cloud provisioning and management via the Meraki dashboard
- 802.1X RADIUS and MAB, DHCP snooping, Dynamic ARP Inspection, IPv4/IPv6 ACLs
- Up to 4,094 VLANs, 802.3ad LAG with up to 8 ports and 32K MAC entries
- Remote diagnostics including packet capture, cable test, ping and traceroute

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: 48-port GbE PoE+ switch
- Interfaces: 48 x 1GbE RJ45
- Uplinks: modular 10/40GbE (SFP+, QSFP+)
- Stacking ports: 2 x 120G hardware stack ports
- Dedicated management interface: 1
- PoE capability: PoE+
- Switching capacity: 256 Gbps
- Stacking bandwidth: 480 Gbps
- Forwarding rate: 190.48 Mpps
- Default power supply: MA-PWR-715WAC
- Hot-swap power supplies: dual
- PoE budget with primary PSU: 437W
- Max PoE budget with second 715W PSU: 1152W
- Power load (idle/max): 92.6W / 555W
- Dimensions (H x W x D): 4.4 x 44.5 x 44.9 cm
- Weight: 7.59 kg
- Mounting: 1U rack mount
- Hot-swap fans: 3
- Operating temperature: -5 to 45 C
- Humidity: 5 to 90%
- MTBF at 25 C: 277,770 hours

FAQs

Q: Does the MS390-48P-HW include a Meraki licence?
A: No. This is the hardware-only SKU, so a Meraki MS390 cloud licence is required separately. Choose Enterprise (LIC-MS390-48E) or Advanced (LIC-MS390-48A), with terms of 1, 3, 5, 7 or 10 years.

Q: What is the PoE budget?
A: The default MA-PWR-715WAC supply provides a 437W PoE budget. Adding a second 715W supply raises this to 1152W, and a second 1100W supply raises it to 1440W.

Q: Which uplink modules work with this switch?
A: The MA-MOD-2X40G and MA-MOD-8X10G modules provide the 10G and 40G uplinks.

Q: What does the Advanced licence add over Enterprise?
A: Advanced adds Adaptive Policy micro-segmentation and NetFlow v10 with Encrypted Traffic Analytics.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
