• Meraki MS390-48-HW Cisco Catalyst 9300 switch with 48x 1G ports
1 1

Meraki

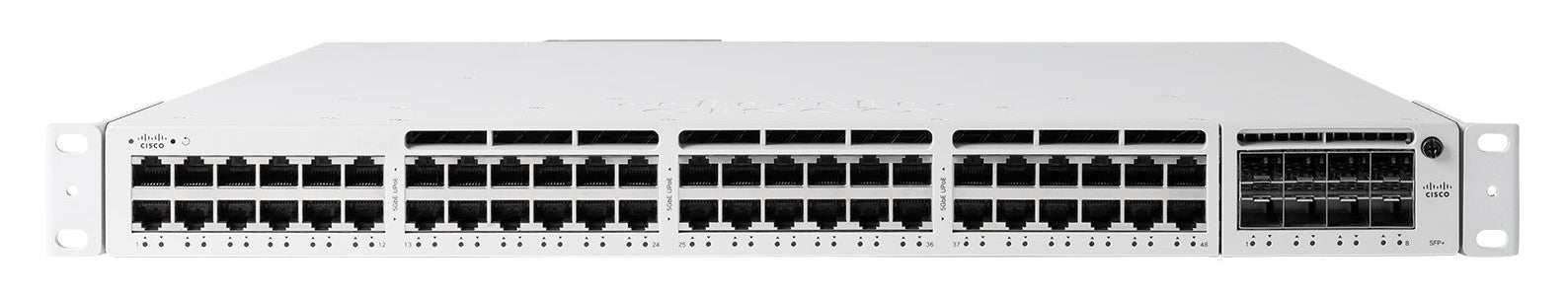

Meraki MS390-48-HW | MS390 48-Port Gigabit L3 Switch, 350W AC PSU

MS390-48-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS390 48-port switch is a Layer 3, cloud-managed access and aggregation switch for enterprise campus networks. It is managed from the Meraki dashboard and suits sites that need routing, stacking and modular hardware on non-PoE gigabit ports.

This model provides 48 x 1GbE RJ45 ports with no PoE, and a modular uplink bay that takes 4 or 8 x 10G SFP+ or 2 x 40G QSFP+ modules. Two dedicated stacking ports give 480 Gbps of physical stacking bandwidth for up to 8 units. Switching capacity is 256 Gbps with a forwarding rate of 190 Mpps. Layer 3 support includes static routing, OSPFv2, PIM-ASM multicast and VRRP warm spare. This SKU is configured with the MA-PWR-350WAC power supply, and the 1U chassis uses 3 modular hot-swappable fans.

A second hot-swappable power supply can be added for redundancy, with 715W and 1100W options available. The switch stacks with other MS390 units over the dedicated stacking ports. Cloud management requires a Meraki MS390 switch licence, which is ordered separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud-managed through the Meraki dashboard
- Layer 3 routing with static routes, OSPFv2 with up to 16 ECMP routes, PIM-ASM multicast and VRRP warm spare
- DHCP relay and DHCP server support
- 802.1Q VLANs and trunking, MSTP, BPDU/Root/Loop guard, UDLD and storm control
- 802.1X RADIUS and MAB authentication, port security, DHCP snooping, Dynamic ARP Inspection and IPv4/IPv6 ACLs
- Modular power supplies, fans and uplinks
- StackPower and 480 Gbps physical stacking for up to 8 units

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: MS390-48-HW
- Downlink ports: 48 x 1GbE RJ45 (non-PoE)
- Uplink modules: modular, 4/8 x 10G SFP+ or 2 x 40G QSFP+
- Stacking ports: 2 dedicated
- Physical stacking bandwidth: 480 Gbps, up to 8 units
- Management interface: 1 dedicated
- Switching capacity: 256 Gbps
- Forwarding rate: 190 Mpps
- Jumbo frame support: 9600 byte
- PoE budget: not applicable, non-PoE model
- Default power supply: MA-PWR-350WAC, dual PSU supported
- Power load idle/max: 83.9 / 109.9 W
- Power input: 100-240 VAC, 50-60 Hz
- Fans: 3 x modular, hot-swappable
- Mounting: 1U rack mount
- Dimensions (H x W x D): 4.4 x 44.5 x 44.9 cm (1.73 x 17.5 x 17.7 in)
- Weight: 7.45 kg (16.43 lb)
- Operating temperature: -5 to 45 C
- Humidity: 5 to 90%

FAQs

Q: Does the MS390-48-HW need a licence?
A: Yes. It needs a Meraki MS390 series switch licence (Enterprise or Advanced) for cloud management. Without a valid licence the switch stops operating on the dashboard. The licence term is ordered separately from the hardware.

Q: Does this model support PoE?
A: No. The MS390-48-HW is the non-PoE model with 48 x 1GbE ports and no PoE budget. It is configured with the MA-PWR-350WAC power supply.

Q: Which uplink modules does it work with?
A: The modular uplink bay supports 4 or 8 x 10G SFP+ modules, or 2 x 40G QSFP+ modules.

Q: Can I add a second power supply?
A: Yes. The switch supports dual hot-swappable power supplies for redundancy. MA-PWR-350WAC is the default, with 715W and 1100W options also available.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
