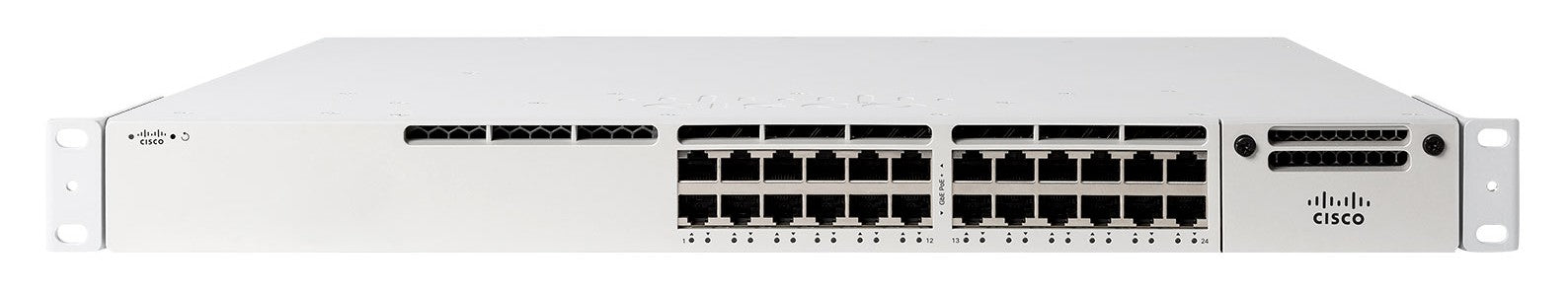

• Meraki MS390-24UX-HW silver switch with black ports and white label
1 1

Meraki

Meraki MS390-24UX-HW | MS390 24-Port mGig UPoE Switch, 560W PoE

MS390-24UX-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS390 is a cloud-managed Layer 3 access and aggregation switch for enterprise networks that need high-bandwidth multigigabit ports. It suits powering and connecting Wi-Fi 6 (802.11ax) access points, UPoE and 802.3bt devices, resilient stacked deployments and segmented networks using Adaptive Policy, all managed from the Meraki dashboard.

This 24-port model provides 24 RJ45 ports running at 100M, 1G, 2.5G, 5G or 10G, with UPoE delivering up to 60W per port under IEEE 802.3bt. It has a 560W PoE budget with the 1100W AC power supply, rising to 1440W with a second 1100W supply. Switching capacity is 640 Gbps with a 476.19 Mpps forwarding rate. Two 120G stacking ports give 480 Gbps of stacking bandwidth, and the modular uplink bay supports 10/40GbE SFP+ and QSFP+ modules.

The hardware SKU does not include a licence. An MS390 24-port licence, LIC-MS390-24E for Enterprise or LIC-MS390-24A for Advanced, is needed for the switch to be managed in the dashboard. Advanced adds Adaptive Policy and NetFlow v10 with Encrypted Traffic Analytics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Managed via the Meraki dashboard with zero-touch remote provisioning
- Layer 3 routing with static routing, OSPFv2, PIM-ASM multicast, VRRP warm spare and DHCP server/relay
- Multigigabit ports for 802.11ax/Wi-Fi 6 access points
- 480G stacking with fast stack convergence
- StackPower ring topology for resilient power sharing across up to 4 switches
- Adaptive Policy micro-segmentation using Security Group Tags (Advanced licence)
- 802.1X RADIUS and MAB, DHCP snooping, Dynamic ARP Inspection and IPv4/IPv6 ACLs
- Remote packet capture, cable testing and email, SMS and push alerts
- Link aggregation with up to 8 ports per aggregate and multichassis aggregation on stacks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Interfaces: 24 x 100M/1G/2.5G/5G/10G RJ45
- PoE/UPoE capability: UPoE (60W per port), IEEE 802.3bt
- Uplink 10/40GbE (SFP+, QSFP+): Modular
- 120G hardware stack ports: 2
- Stacking bandwidth: 480 Gbps
- Switching capacity: 640 Gbps
- Forwarding rate: 476.19 Mpps
- Dedicated management interface: 1
- Default power supply: MA-PWR-1100WAC (hot-swap, dual supported)
- Available PoE with primary PSU: 560 W
- Max available PoE with secondary PSU: 1440 W
- Power load (idle/max): 162.7 / 809.9 W
- MAC forwarding entries: 32K
- VLANs: up to 4,094 (1000 active with STP enabled)
- Hot swap fans: Yes, 3x
- Operating temperature: -5 to 45 C
- Humidity: 5 to 90%
- Dimensions (H x W x D) with default PSU: 4.4 x 44.5 x 51.3 cm
- Weight: 8.25 kg
- Mount type: 1U rack mount

FAQs

Q: Does the MS390-24UX-HW include a licence?
A: No. This is the hardware SKU. An MS390 24-port licence is required for the switch to be managed in the Meraki dashboard, either LIC-MS390-24E (Enterprise) or LIC-MS390-24A (Advanced), in 1, 3, 5, 7 or 10 year terms.

Q: What is the difference between the Enterprise and Advanced licence?
A: Advanced adds Adaptive Policy and NetFlow v10 with Encrypted Traffic Analytics. Enterprise and Advanced cannot be mixed in a co-term organisation, and MS130, MS150, MS390 and Catalyst 9300-M devices must use the same tier across an organisation.

Q: How much PoE can this switch deliver?
A: The 1100W MA-PWR-1100WAC supply provides a 560W PoE budget. Adding a second hot-swap supply raises it to 910W with a 350W unit, 1275W with a 715W unit and 1440W with a 1100W unit. UPoE delivers up to 60W per port.

Q: Which uplink modules and power supplies work with it?
A: Uplink modules are MA-MOD-2X40G, MA-MOD-8X10G and MA-MOD-4X10G. Power supplies are MA-PWR-715WAC and MA-PWR-1100WAC. Stacking uses MA-CBL-120G cables and StackPower uses MA-CBL-SPWR cables.

Q: What cabling is recommended for the multigigabit ports?
A: Cat-6a cabling is recommended for reliable multigigabit operation at 2.5G, 5G and 10G speeds.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
