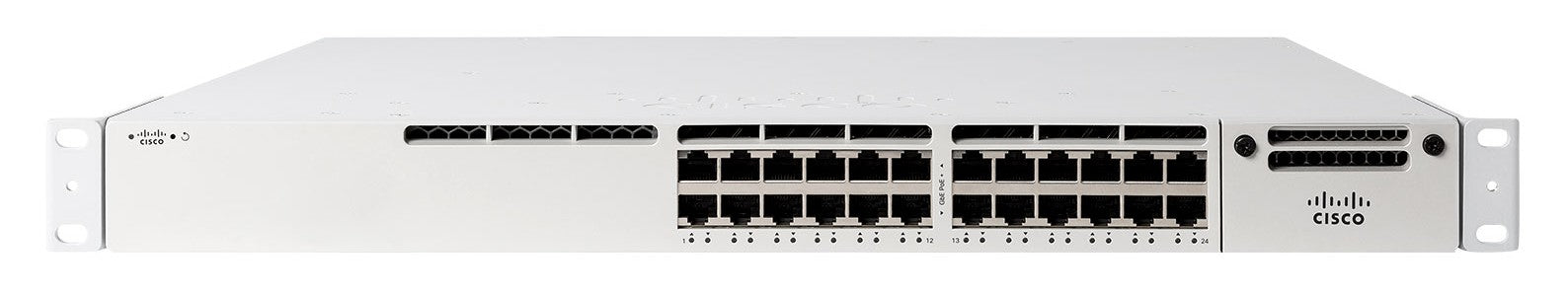

• Meraki MS390-24P-HW silver Cisco switch with black ports and white label
1 1

Meraki

Meraki MS390-24P-HW | MS390 24-Port PoE+ Switch, 445W, Enterprise

MS390-24P-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS390 is a cloud-managed Layer 3 stackable access switch for enterprise wired access and campus deployments. It suits sites that need PoE+ for Wi-Fi 6 access points, phones and cameras, high-bandwidth 10G or 40G uplinks, and resilient stacking, all managed from the Meraki dashboard.

This MS390-24P-HW provides 24 x 1GbE RJ45 PoE+ (802.3at) ports and a 445W PoE budget from the default 715W power supply, rising to a maximum of 720W with a secondary or upgraded supply. It delivers 208 Gbps switching capacity and a 154.76 Mpps forwarding rate. Two 120G hardware stack ports give 480 Gbps of stacking bandwidth for up to 8 switches, and StackPower in a ring topology supports up to 4 switches. Uplinks are modular 10/40GbE, with the uplink module sold separately.

It requires a Meraki per-switch licence, and this SKU corresponds to the Enterprise tier (LIC-MS390-24E), sold separately from the hardware. Compatible uplink modules include MA-MOD-2X40G and MA-MOD-8X10G, and power supplies include MA-PWR-715WAC and MA-PWR-1100WAC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Managed through the Meraki dashboard with zero-touch remote provisioning
- Layer 3 switching with static routing, OSPFv2, PIM-ASM multicast, VRRP warm spare and DHCP server/relay
- Stacks up to 8 switches with virtual stacking for unified management
- StackPower in a ring topology supporting up to 4 switches
- Security with 802.1X RADIUS/MAB, DHCP snooping, Dynamic ARP Inspection, IPv4/IPv6 ACLs and sticky MAC port security
- Remote diagnostics including packet capture, cable testing, ping and traceroute, and per-port and per-client usage statistics
- Automatic scheduled firmware upgrades with SNMP and Syslog integration
- Hot-swappable fans and dual hot-swap power supplies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: MS390-24P-HW
- Interfaces: 24 x 1GbE RJ45 PoE+ (802.3at)
- Uplinks: modular 10/40GbE (SFP+/QSFP+), module sold separately
- Hardware stack ports: 2 x 120G
- Stacking bandwidth: 480 Gbps, up to 8 switches
- Switching capacity: 208 Gbps
- Forwarding rate: 154.76 Mpps
- Dedicated management interface: 1
- Default power supply: MA-PWR-715WAC, dual hot-swap capable
- PoE budget with primary PSU: 445 W
- Maximum PoE budget with secondary PSU: 720 W
- Power load (idle/max): 84.1 / 554.4 W
- Dimensions (h x w x d): 4.4 x 44.5 x 44.9 cm
- Weight: 7.4 kg
- Mounting: 1U rack mount
- Cooling: 3 x hot-swap fans
- Operating temperature: -5 to 45 C
- Humidity: 5 to 90%
- MTBF at 25 C: 299,000 hours
- MAC forwarding entries: 32K
- VLANs: up to 4,094 (1000 active with STP enabled)
- Link aggregation: 802.3ad, up to 8 ports per aggregate

FAQs

Q: Does the MS390-24P-HW need a licence?
A: Yes. It requires a Meraki per-switch licence, and this SKU corresponds to the Enterprise tier (LIC-MS390-24E). Licences are sold separately from the hardware in 1, 3, 5, 7 and 10 year terms.

Q: How much PoE power does it provide?
A: With the default MA-PWR-715WAC power supply it provides a 445W PoE budget across 24 PoE+ (802.3at) ports. Upgrading to MA-PWR-1100WAC or adding a secondary supply raises this to a maximum of 720W.

Q: Which uplink modules does it work with?
A: It supports the MA-MOD-2X40G (2 x 40G) and MA-MOD-8X10G (8 x 10G) uplink modules, and the MA-MOD-4X10G (4 x 10G, end-of-sale). The uplink module is sold separately.

Q: Can I mix Enterprise and Advanced licences in one organisation?
A: Not under co-term licensing. The switches in a co-term organisation must use the same licence tier, including MS130, MS150 and Catalyst C9300-M switches.

Q: Which cables are used for stacking?
A: Hardware stacking uses the MA-CBL-120G-50CM, MA-CBL-120G-1M or MA-CBL-120G-3M cables. StackPower uses the MA-CBL-SPWR-30CM or MA-CBL-SPWR-150CM cables.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.
