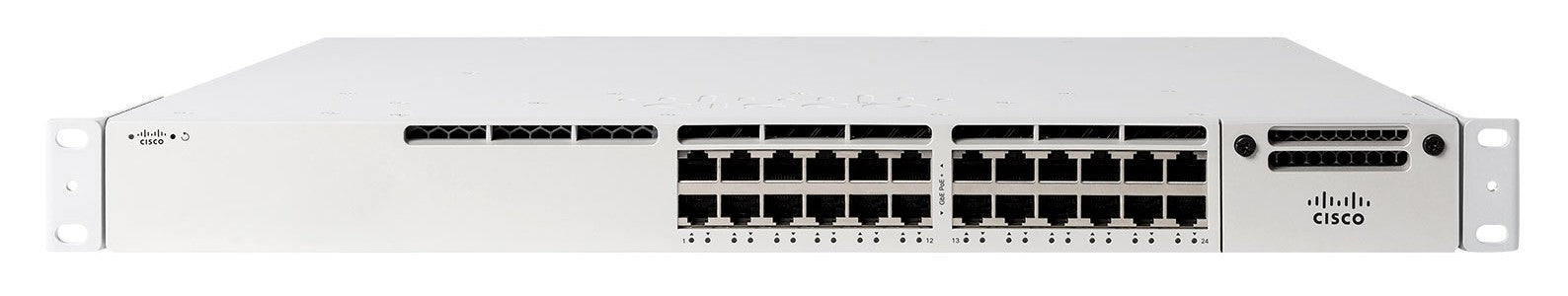

• Meraki MS390-24-HW silver Cisco switch with black ports
1 1

Meraki

Meraki MS390-24-HW | MS390 24-Port Gigabit L3 Switch, 350W PSU

MS390-24-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS390 is a cloud-managed Layer 3 stackable switch built for enterprise wired access and campus access-layer deployments. This model provides 24 x 1GbE RJ45 ports and is managed through the Meraki dashboard with zero-touch provisioning, so it suits sites that need routing, resilient stacking and micro-segmentation without a separate management platform.

The 24 gigabit ports are non-PoE, and there is no PoE budget on this model. Uplinks are modular 10/40GbE (SFP+/QSFP+) through an uplink module, and two 120G hardware stack ports give 480 Gbps of stacking bandwidth for up to 8 switches. Switching capacity is 208 Gbps with a forwarding rate of 154.76 Mpps. It uses a hot-swap MA-PWR-350WAC power supply with support for a second supply for redundancy, and StackPower can be run in a ring across up to 4 switches. The chassis is 1U with three hot-swap fans.

This is the hardware SKU only and needs a Meraki per-switch licence to operate, either Enterprise (LIC-MS390-24E) or Advanced (LIC-MS390-24A). Adaptive Policy and Netflow v10/ETA require the Advanced tier. It works with the MA-MOD-2X40G and MA-MOD-8X10G uplink modules, MA-CBL-120G stacking cables and MA-CBL-SPWR StackPower cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 switching with static routing, OSPFv2, PIM-ASM multicast routing, VRRP warm spare, DHCP server and relay
- Cloud management from the Meraki dashboard with zero-touch provisioning
- Physical stacking of up to 8 switches plus virtual stacking
- StackPower in a ring topology across up to 4 switches
- Adaptive Policy micro-segmentation using Security Group Tags (Advanced licence)
- 802.1X RADIUS and MAB, DHCP snooping, Dynamic ARP Inspection and IPv4/IPv6 ACLs
- Up to 4,094 VLANs, 32K MAC entries and 802.3ad LAG with up to 8 ports per aggregate
- Remote diagnostics including packet capture, cable test, ping and traceroute

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: MS390-24-HW
- Interfaces: 24 x 1GbE RJ45 (non-PoE)
- Uplinks: Modular 10/40GbE (SFP+/QSFP+)
- Stack ports: 2 x 120G hardware stack ports
- Stacking bandwidth: 480 Gbps
- Switching capacity: 208 Gbps
- Forwarding rate: 154.76 Mpps
- Dedicated management interface: 1
- PoE: Not supported
- Default power supply: MA-PWR-350WAC, hot-swap, dual supported
- Power load (idle/max): 79.2 / 99 W
- Mounting: 1U rack mount
- Fans: 3 x hot-swap
- Dimensions (H x W x D): 4.4 x 44.5 x 44.9 cm (1.73 x 17.5 x 17.7 in)
- Weight: 7.27 kg (16.03 lb)
- Operating temperature: -5 to 45 C
- Humidity: 5 to 90%
- MTBF at 25 C: 314,790 hours

FAQs

Q: Does the MS390-24-HW need a licence?
A: Yes. It needs a Meraki per-switch licence to operate, either Enterprise (LIC-MS390-24E) or Advanced (LIC-MS390-24A), available in 1, 3, 5, 7 and 10 year terms. Adaptive Policy and Netflow v10/ETA require the Advanced tier.

Q: Does this switch provide PoE?
A: No. This is the non-PoE 24-port model, so it has no PoE budget. It runs from the MA-PWR-350WAC hot-swap power supply, with a second supply supported for redundancy.

Q: Which uplink modules does it work with?
A: It takes the modular 10/40GbE uplinks MA-MOD-2X40G and MA-MOD-8X10G. The MA-MOD-4X10G is also listed as compatible but has been end-of-sale since 1 November 2021.

Q: How can multiple MS390 switches be stacked?
A: Two 120G hardware stack ports give 480 Gbps of stacking bandwidth using MA-CBL-120G cables in 50 cm, 1 m or 3 m lengths. Stacking supports up to 8 switches, and StackPower cables can share power across up to 4 switches.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
