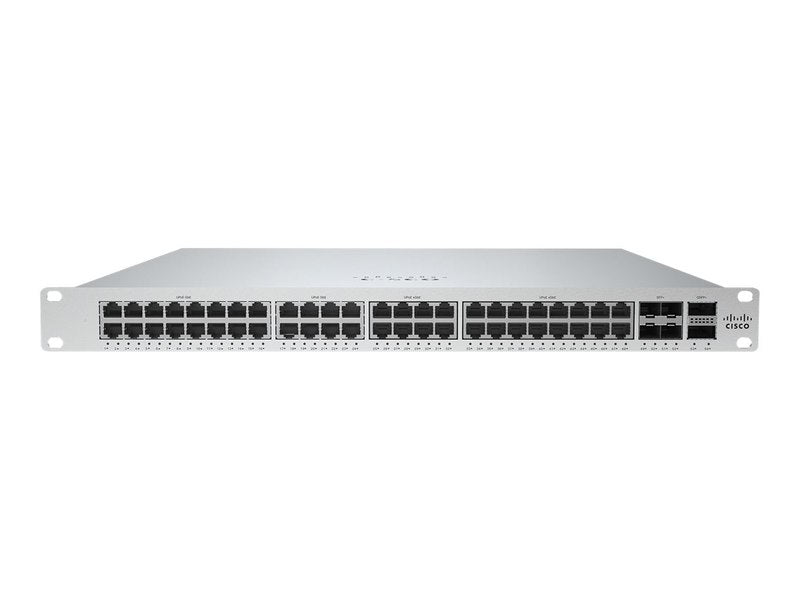

Meraki MS355-48X2-HW | Meraki MS355 48-Port Multi-Gig Switch, 740W UPoE, L3

MS355-48X2-HW

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Meraki MS355-48X2 is a cloud-managed Layer 3 stackable switch designed for high-density enterprise and campus deployments. It features 24 multi-gigabit ports supporting 100M/1G/2.5G/5G/10G auto-negotiation and 24 additional 1G ports, all with UPoE capability up to 60W per port and a 740W total PoE budget. With 4x 10G SFP+ or 2x 40G QSFP+ uplinks, 688 Gbps switching capacity, and 400 Gbps hardware stacking bandwidth, it is optimized for 802.11ax wireless access points, high-bandwidth workstations, and converged voice, video, and data applications.

Features

Layer 3 routing with OSPF and static routes
- Cloud-managed with zero-touch provisioning via Meraki dashboard
- Hardware stacking up to 8 units with 400 Gbps bandwidth
- UPoE (802.3bt) support with dynamic power allocation
- Multi-gigabit (mGig) ports with auto-negotiation up to 10G
- Integrated Layer 7 application and device fingerprinting
- 8 class-of-service (CoS) queues per port for QoS
- VRRP warm spare redundancy
- 802.1X authentication and DHCP snooping
- IPv4 and IPv6 ACL support
- DHCP server and relay
- Spanning Tree Protocol enhancements
- CDP and LLDP for intelligent PoE budgeting
- Remote troubleshooting tools including port-level packet capture
- Dual redundant hot-swappable power supplies and fans
- Split-plane architecture for wire-speed performance
- Automatic firmware updates with user scheduling

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

48 total Ethernet ports: 24x multi-gigabit RJ45 (100M/1G/2.5G/5G/10G auto-negotiation) + 24x 1G RJ45
- Uplinks: 4x 10G SFP+ or 2x 40G QSFP+ (configurable)
- PoE budget: 740W UPoE (802.3bt) supporting up to 60W per port
- Switching capacity: 688 Gbps
- Forwarding rate: 512 Mpps
- Layer 3 routing with OSPF support
- Hardware stacking: 2x 100G QSFP28 stacking ports with 400 Gbps stacking bandwidth
- MAC address table: 32,000 entries
- Dual hot-swappable power supplies (1x MA-PWR-1025WAC included)
- Hot-swappable fans (3x included)
- Management: Cloud-managed via Meraki dashboard, no CLI required
- QoS: 8 class-of-service queues per port
- Standards: IEEE 802.1D, 802.1Q, 802.1ab, 802.1ad, 802.1p, 802.1w, 802.1x, 802.3af/at/bt
- Dimensions: 1.72" x 19.08" x 20.34" (4.37 x 48.46 x 51.66 cm), 1U rackmount
- Weight: 13.14 lb (5.96 kg)
- Power consumption: 168W idle, 1723W full load

FAQs

Q: What is multi-gigabit (mGig) support on this switch?
A: The MS355-48X2 features 24 multi-gigabit ports that auto-negotiate at 100M, 1G, 2.5G, 5G, or 10G speeds over standard copper cabling, making it ideal for supporting 802.11ax (Wi-Fi 6) access points and high-bandwidth workstations without requiring fiber.

Q: How much PoE power can each port deliver?
A: All 48 ports support PoE+/UPoE (802.3af/at/bt). The switch offers a 740W total PoE budget and can deliver up to 60W per port for UPoE-compatible devices such as high-performance wireless access points, PTZ cameras, and video conferencing endpoints.

Q: Can I stack multiple MS355-48X2 switches?
A: Yes, the MS355-48X2 includes two dedicated 100G QSFP28 hardware stacking ports providing 400 Gbps of stacking bandwidth. You can stack up to 8 units for simplified management and increased redundancy.

Q: Does this switch require a Meraki license to operate?
A: Yes, the MS355-48X2 requires a Meraki Enterprise license for full operation and cloud management. The license is sold separately and is required for the switch to pass traffic and be managed via the Meraki dashboard.

Q: What Layer 3 routing capabilities does the MS355-48X2 support?
A: The MS355-48X2 is a full Layer 3 switch supporting static routing, OSPF, VRRP for warm spare redundancy, inter-VLAN routing, DHCP server and relay, and IPv4/IPv6 ACLs for traffic filtering and segmentation.
