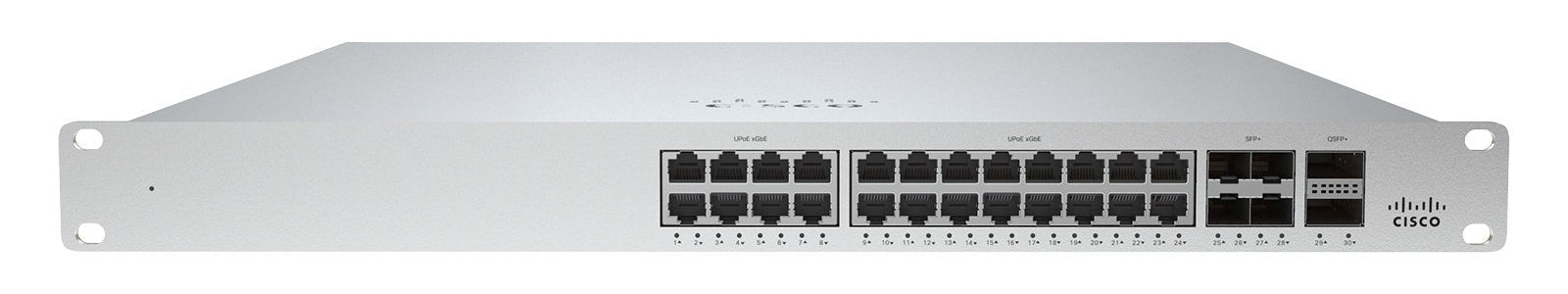

• Meraki MS355-24X-HW silver switch with black ports and PoE++
1 1

Meraki

Meraki MS355-24X-HW | Meraki MS355 24-Port Multi-Gig PoE++ Switch, 740W, 4x 10G SFP+

MS355-24X-HW

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Meraki MS355-24X is a cloud-managed Layer 3 access switch designed for high-performance enterprise and campus networks with demanding Wi-Fi 6 deployments. It features 16 gigabit ports plus 8 multi-gigabit ports supporting 100Mbps to 10Gbps auto-negotiation, ideal for connecting high-bandwidth wireless access points, servers, and workstations. With 740W of PoE++ budget including UPoE support, flexible 10G/40G uplinks, 100G hardware stacking capability, and centralized cloud management through the Meraki Dashboard, the MS355-24X delivers enterprise-grade performance and simplicity for modern network infrastructures.

Features

Cloud-Managed: Centralized management through Meraki Dashboard with zero-touch provisioning, no CLI required
- Layer 3 Routing: Static routing, OSPFv2 dynamic routing with ECMP support, multicast routing (PIM-ASM), DHCP server/relay, warm spare (VRRP)
- Multi-Gigabit Ports: 8x mGig ports auto-negotiate 100M/1G/2.5G/5G/10G for Wi-Fi 6/6E AP connectivity
- PoE++/UPoE: 740W PoE budget with up to 60W per port, dynamic power allocation via CDP/LLDP
- Hardware Stacking: 100G QSFP28 dedicated stacking ports, 400 Gbps bandwidth, stack up to 8 units
- Flexible Uplinks: 4x 10G SFP+ or 2x 40G QSFP+ configurable uplinks for aggregation
- Layer 7 Application Visibility: Integrated application fingerprinting identifies hundreds of applications without additional modules
- Advanced Security: 802.1X authentication, Dynamic ARP Inspection (DAI), DHCP snooping, IP source guard, private VLANs, port security, ACLs
- High Availability: Dual hot-swappable power supplies (redundant or combined mode), hot-swappable fans, per-port redundancy
- VLAN Support: 802.1Q VLAN tagging, 4,094 VLANs, voice VLAN, private VLANs
- Link Aggregation: IEEE 802.3ad (LACP) with configurable link aggregation groups
- Spanning Tree: STP, RSTP, MSTP with Root Guard, Loop Guard, BPDU Guard
- QoS: 802.1p CoS, DSCP-based QoS with 8 egress queues, traffic shaping and policing
- Multicast: IGMP snooping v1/v2/v3, multicast routing (PIM-ASM)
- Monitoring: Packet capture, port mirroring, NetFlow, sFlow, SNMP v2c/v3, Syslog, email/SMS alerts
- Automation: REST API for automation and third-party integrations, webhooks, change logs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Total Ports: 24 access ports (16x 1GbE RJ45 + 8x multi-gig RJ45 supporting 100M/1G/2.5G/5G/10G with auto-negotiation)
- Uplinks: 4x 10G SFP+ or 2x 40G QSFP+ (configurable)
- Stacking: 2x 100G QSFP28 dedicated stacking ports, 400 Gbps stacking bandwidth
- PoE Budget: 740W total with PoE+/PoE++ (UPoE) support, up to 60W per port
- Switching Capacity: 352 Gbps
- Forwarding Rate: 262 Mpps
- Routing: Layer 3 with static routing, OSPFv2 (up to 16 ECMP routes), multicast routing (PIM-ASM), DHCP server/relay, warm spare (VRRP)
- MAC Address Table: 32,000 entries
- Management: Cloud-managed via Meraki Dashboard (web-based), no CLI required
- Jumbo Frames: Supports up to 9,600-byte Ethernet frames
- Power Supply: Dual hot-swappable PSU slots, 1x MA-PWR-1025WAC included (1025W)
- Fans: 3x hot-swappable fans (MA-FAN-18K) pre-installed
- Dimensions: 1.72" H x 19.08" W x 20.34" D (4.37 x 48.46 x 51.66 cm), 1U rack-mountable
- Weight: 12.30 lb (5.58 kg)
- Power Consumption: 110W idle / up to 1,744W full load (with combined power mode)
- Operating Temperature: 0°C to 45°C
- Humidity: 5% to 95% non-condensing
- Certifications: FCC, CE, CSA, IC, RCM, RoHS compliant

FAQs

Q: What is multi-gigabit (mGig) and which ports support it on the MS355-24X?
A: The MS355-24X features 8 multi-gigabit ports that auto-negotiate at 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, or 10Gbps speeds over standard RJ45 copper cabling. These mGig ports are designed to support the high bandwidth requirements of Wi-Fi 6/6E access points without requiring fiber cabling. The remaining 16 ports are standard gigabit Ethernet. For best mGig performance, use Cat6 or Cat6A cabling.

Q: Can I use the uplink ports as 10G SFP+ or 40G QSFP+?
A: Yes, the MS355-24X provides flexible uplink options: you can configure the uplinks as either 4x 10G SFP+ ports or 2x 40G QSFP+ ports depending on your aggregation needs. The configuration is flexible and can be adapted based on your network topology.

Q: Does this switch require a Meraki license to operate?
A: Yes, the MS355-24X requires a Meraki Enterprise license (LIC-MS355-24X-xYR) for operation. The license enables cloud management, Layer 3 routing features, advanced security policies, Layer 7 traffic analytics, and centralized monitoring through the Meraki Dashboard. Licenses are sold separately and available in 1, 3, 5, 7, and 10-year terms.

Q: How does hardware stacking work on the MS355 series?
A: The MS355-24X includes 2 dedicated 100G QSFP28 stacking ports that provide 400 Gbps of stacking bandwidth. You can physically stack up to 8 MS355 switches using optional MA-CBL-100G stacking cables (available in 0.5m, 1m, and 3m lengths). Stacked switches operate as a single logical switch with unified management, shared configuration, and seamless failover.

Q: What is the maximum PoE power available per port?
A: The MS355-24X supports PoE++ (UPoE) with up to 60W per port, providing sufficient power for the most demanding devices including high-power Wi-Fi 6E access points, PTZ cameras, and video conferencing endpoints. The total PoE budget is 740W with a single power supply, or up to 1,440W when operating in combined power mode with dual power supplies installed. PoE power is intelligently allocated using CDP and LLDP protocols.
