• Meraki MS350-48LP-HW 48-port PoE+ silver switch with 10G uplinks
1 1

Meraki

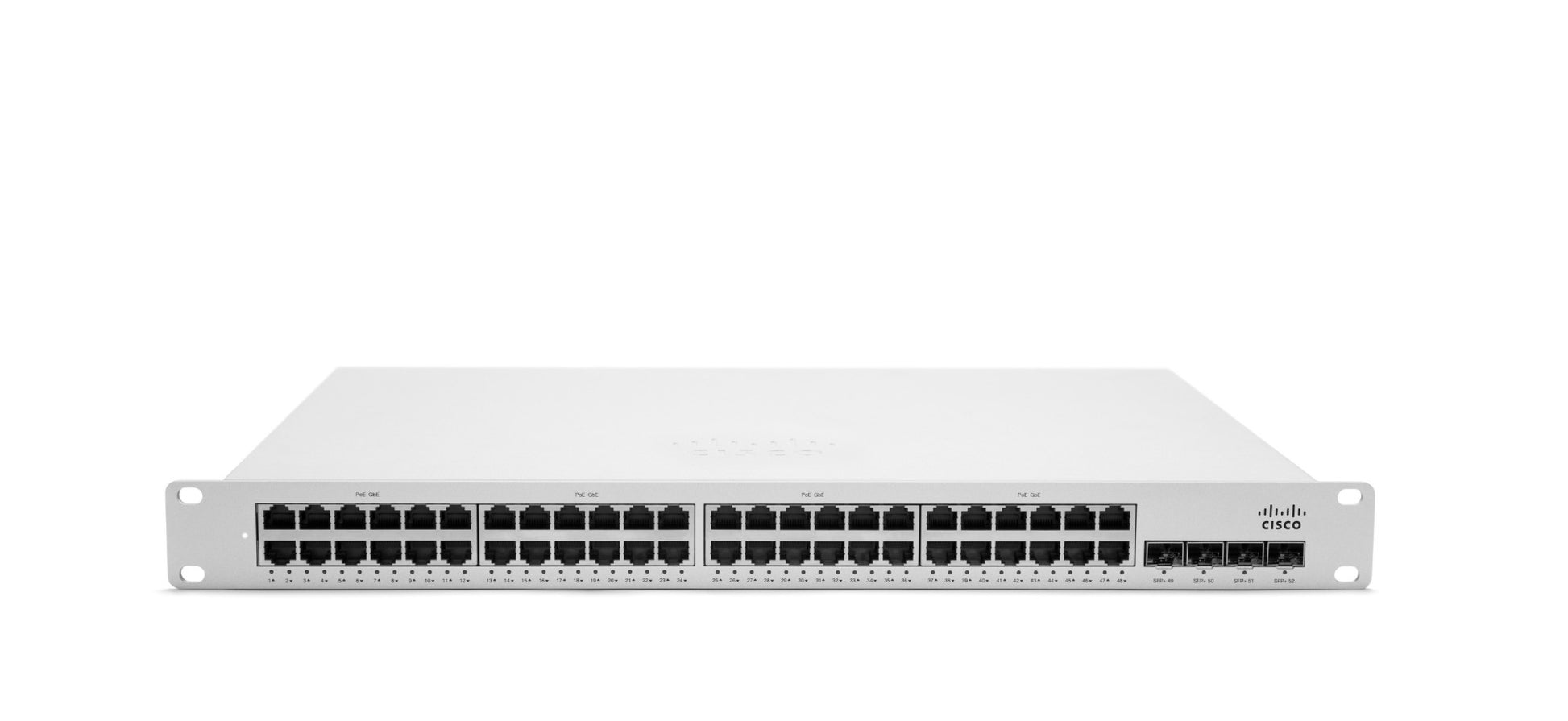

Meraki MS350-48LP-HW | MS350 48-Port Gigabit PoE+ Switch, 370W, 4x 10G SFP+

MS350-48LP-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS350-48LP is a cloud-managed, Layer 3 stackable access switch built for campus networks, enterprise offices, classrooms and wiring closets. It suits deployments that need PoE+ for access points, VoIP phones and cameras, together with Layer 3 routing, stacking and 10G uplinks, all managed through the Meraki Dashboard.

There are 48 10/100/1000BASE-T RJ45 ports with a 370W PoE+ budget, plus four 10G SFP+ uplinks and two dedicated stacking ports. Switching capacity is 176 Gbps with a 127.98 Mpps forwarding rate on a non-blocking fabric. Up to eight switches can be physically stacked at 160 Gbps. This -HW SKU is the 48-port, 370W PoE+ (LP) model, hardware only, so it does not include a licence. A Meraki MS350-48 Enterprise licence (LIC-MS350-48LP-xYR) is purchased separately by term and is required to manage the switch from the cloud.

Uplinks accept Meraki-supported SFP+ and SFP optics and DAC cables. Stacking uses Meraki stacking cables. The power supply is a hot-swappable 640W AC module (MA-PWR-640WAC), and a second 640W module can be added for redundancy.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud-managed through the Meraki Dashboard with zero-touch provisioning and remote diagnostics
- Layer 3 access switching with static routing, OSPFv2, multicast routing, VRRP warm spare, and DHCP server and relay
- Physical stacking of up to 8 switches at 160 Gbps, plus virtual stacking for unified management
- 370W PoE+ budget with dynamic power allocation for access points, phones and cameras
- Hot-swappable fans and power supply, with an optional second power supply for redundancy
- Security features including 802.1X, MAC-based RADIUS authentication, sticky MAC, BPDU guard, root guard, IPv4/IPv6 ACLs and role-based administration
- Six configurable QoS queues for converged voice, video and data traffic
- Quiet, shallow-depth design suited to wiring closets and offices

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Ports: 48 x 10/100/1000BASE-T RJ45 with auto negotiation and auto-MDIX
- Uplinks: 4 x 10G SFP+
- Stacking ports: 2 x dedicated, 160 Gbps stack bandwidth
- PoE+ budget: 370W
- Switching capacity: 176 Gbps
- Forwarding rate: 127.98 Mpps
- Latency: 2.5 microseconds, non-blocking fabric
- Jumbo frame support: 9600 byte
- Power supply: hot-swappable, MA-PWR-640WAC (640W)
- Redundant power supply option: second 640W module
- Power input: 100-240 VAC, 47-63 Hz
- Idle / full load power: 63 / 478W
- VLANs: 802.1Q, up to 4,094 VLANs
- QoS: 802.1p, 8 queues (6 configurable for DSCP-to-CoS mapping)
- Physical stacking: up to 8 switches
- Mounting: 1U rack-mountable
- Dimensions (H x W x D): 4.44 x 48.46 x 51.81 cm
- Weight: 6.27 kg
- Operating temperature: 0 to 40 C (up to 45 C for MS350)
- Humidity: 5 to 95% non-condensing
- MTBF at 25 C: 536,000 hours
- Regulatory: CSA, IC, CE, C-Tick, RoHS

FAQs

Q: Does the MS350-48LP-HW include a Meraki licence?
A: No. The -HW SKU is hardware only. A Meraki MS350-48 Enterprise licence (LIC-MS350-48LP-xYR) is purchased separately by term and is required to manage the switch from the Meraki Dashboard.

Q: What is the PoE budget of this switch?
A: It provides a 370W PoE+ budget across its 48 Gigabit ports, with up to 30W available per port. Power is allocated dynamically to access points, phones and cameras.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: How many switches can be stacked together?
A: Up to eight MS350 switches can be physically stacked using the two dedicated stacking ports at 160 Gbps. Virtual stacking also allows large numbers of switch ports to be managed as a single logical stack.

Q: What can I connect to the SFP+ uplink ports?
A: The four SFP+ uplinks accept Meraki-supported SFP+ and SFP optics and DAC cables for 10G connections to the core or aggregation layer.

Q: Can the power supply be made redundant?
A: Yes. The switch uses a hot-swappable 640W AC power supply (MA-PWR-640WAC), and a second 640W module can be installed for redundancy.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
