• Meraki MS350-48FP-HW 48-port 1G PoE+ switch with 4x 10G SFP+ uplinks
1 1

Meraki

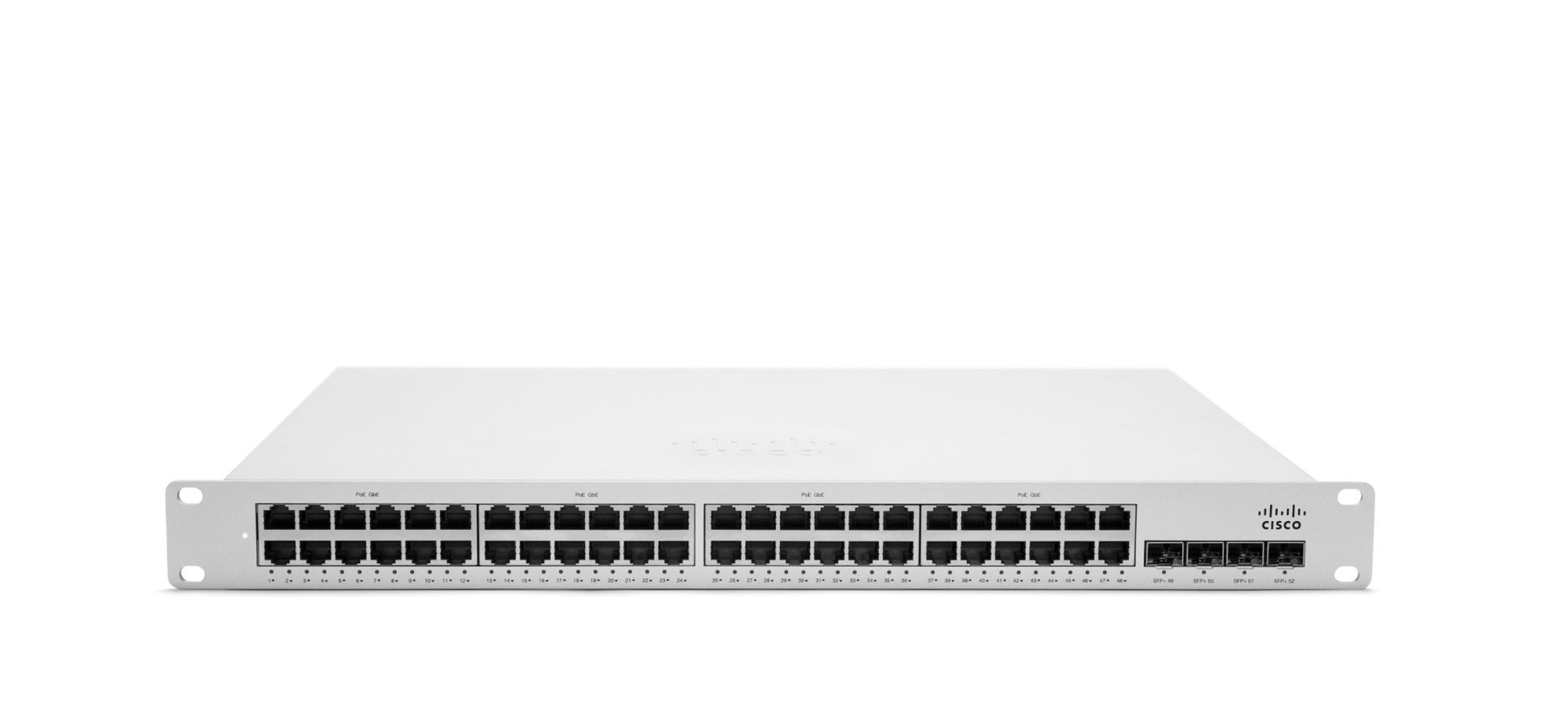

Meraki MS350-48FP-HW | MS350 48-Port Gigabit PoE+ Switch, 740W, 4x 10G SFP+

MS350-48FP-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS350-48FP is a cloud-managed, stackable Layer 3 access switch built for campus edge and access deployments in schools, offices and larger campus networks. It is managed entirely from the Meraki Dashboard, and it powers access points, IP phones and cameras over PoE+.

The switch provides 48 Gigabit RJ45 ports with a 740W PoE+ budget, plus 4 x 10G SFP+ uplinks for aggregation. Switching capacity is 176 Gbps with a 127.98 Mpps forwarding rate. Two stacking ports deliver 160G of stack bandwidth, and up to 8 switches can be joined in a physical stack. This is the hardware-only SKU, and a Meraki Enterprise cloud licence (LIC-MS350-48FP) is required for the switch to operate and connect to the Dashboard.

Power comes from a hot-swappable 1025W AC supply (MA-PWR-1025WAC), with a second supply supported for redundancy. The 10G SFP+ uplinks are intended to connect to aggregation switches such as the Meraki MS425.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Zero-touch cloud provisioning and virtual stacking from the Meraki Dashboard
- Physical stacking of up to 8 switches with 160G bandwidth
- Dynamic PoE budgeting using CDP/LLDP with PoE+ support
- IEEE 802.1X, MAB, port security, DHCP snooping, BPDU guard and root guard
- LACP link aggregation with multichassis aggregation on stacked switches
- Static and OSPFv2 routing, DHCP relay and server, Warm Spare (VRRP)
- Remote cable test, live packet capture and network topology tools
- Scheduled automatic firmware upgrades from the cloud

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: MS350-48FP-HW
- Ports: 48 x 10/100/1000BASE-T RJ45 with auto-negotiation and auto-MDIX
- Uplinks: 4 x 10GbE SFP+
- Stacking ports: 2 (160G dual interface)
- Stacking: up to 8 switches per physical stack
- PoE+ budget: 740W
- Switching capacity: 176 Gbps
- Forwarding rate: 127.98 Mpps
- MAC forwarding entries: 96K
- VLANs: up to 4,094 (802.1Q)
- Link aggregation: 802.3ad, up to 8 ports per aggregate
- QoS: 802.1p, 8 queues, configurable DSCP to CoS mapping
- Jumbo frames: 9600 byte
- Layer 3: static routing, OSPFv2, multicast routing, Warm Spare (VRRP), DHCP relay and server
- Power supply: hot-swappable, 2 x 1025W (MA-PWR-1025WAC) supported
- Power input: 100-240 VAC, 47-63 Hz
- Idle / full load power: 69W / 888W
- Fans: variable speed, MA-FAN-16K compatible
- Dimensions (H x W x D): 4.44 x 48.46 x 55.87 cm
- Weight (base chassis): 6.47 kg
- Mounting: 1U rack-mountable
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95% non-condensing
- MTBF at 25 C: 518,000 hours
- Regulatory: CSA-US, FCC, IC, CE, RCM, RoHS

FAQs

Q: Does this switch need a licence to operate?
A: Yes. A Meraki cloud licence is required for the switch to operate and connect to the Dashboard. This is the hardware-only SKU, so the Enterprise licence LIC-MS350-48FP-xYR (1, 3, 5, 7 or 10 years) is purchased separately.

Q: How much PoE power does it provide and what supply does it use?
A: It provides a 740W PoE+ budget from a 1025W AC hot-swappable power supply (MA-PWR-1025WAC). A second supply of the same model is supported for redundancy.

Q: What does the 10G SFP+ uplink connect to?
A: The 4 x SFP+ uplinks accept Meraki-supported 1G and 10G optics and are designed to link to aggregation switches such as the Meraki MS425.

Q: Can I stack multiple switches together?
A: Yes. Two stacking ports provide 160G of stack bandwidth and up to 8 switches can be physically stacked. Compatible 40G stacking cables are MA-CBL-40G-50CM, MA-CBL-40G-1M and MA-CBL-40G-3M.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
