• Meraki MS350-48-HW: 48-port 1G silver Cisco switch with 4x 10G SFP+ uplinks
1 1

Meraki

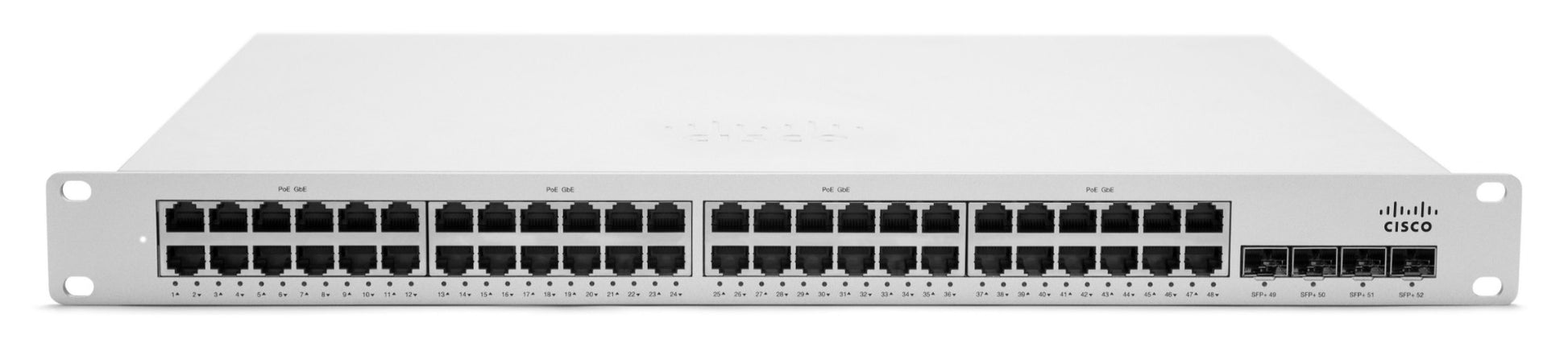

Meraki MS350-48-HW | MS350 48-Port Gigabit Switch, 4x 10G SFP+

MS350-48-HW

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Meraki MS350-48-HW is a cloud-managed Layer 3 stackable access switch designed for large enterprise and campus networks. With 48 Gigabit Ethernet ports, 4x 10G SFP+ uplinks, and 176 Gbps switching capacity, it delivers high-performance connectivity with advanced routing capabilities including static routing, OSPF, and multicast. Fully managed through the intuitive Meraki cloud dashboard with zero-touch provisioning and integrated Layer 7 application visibility.

Features

Cloud-managed via Meraki Dashboard with zero-touch provisioning
- Layer 3 routing with OSPFv2, static routing, and multicast support
- VRRP for gateway redundancy and warm spare failover
- 802.1X authentication with RADIUS integration
- DHCP snooping, Dynamic ARP Inspection, and broadcast storm control
- IPv4 and IPv6 ACLs for granular traffic control
- Integrated Layer 7 application visibility and client fingerprinting
- 8 QoS queues per port with 802.1p CoS and DSCP-to-CoS mapping
- VLAN support (802.1Q) with voice VLAN and private VLANs
- Link aggregation (802.3ad LACP) with up to 8 ports per LAG
- Spanning Tree Protocol: 802.1D, 802.1w (RSTP), 802.1s (MSTP)
- Remote diagnostics: cable testing, live packet capture, port mirroring
- Automatic firmware updates with scheduling control
- Real-time alerts via email, SMS, and mobile push notifications
- Hot-swappable modular fans and redundant power supply support
- Non-blocking switch fabric with wire-speed performance

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

48x 10/100/1000BASE-T Ethernet RJ45 ports with auto-negotiation and auto-MDIX
- 4x 10G SFP+ uplink ports
- 2x dedicated stacking ports with 160 Gbps stacking bandwidth (supports up to 8 switches)
- Switching capacity: 176 Gbps
- Forwarding rate: 127.98 Mpps (130.95 Mpps maximum)
- MAC address table: 96,000 entries
- Layer 3 routing: static routing, OSPFv2, multicast routing, VRRP
- Management: Cloud-managed via Meraki Dashboard, virtual stacking support
- Power consumption: 56W idle / 63W full load
- Includes: 1x MA-PWR-250WAC power supply, mounting kit, 2x MA-FAN-16K fans, 0.5m stacking cable
- Dimensions: 1.74" x 19.08" x 20.4" (4.44cm x 48.46cm x 51.81cm)
- Hot-swappable dual PSU slots (redundant power supply optional)

FAQs

Q: Does the MS350-48-HW support Power over Ethernet (PoE)?
A: No, the MS350-48-HW does not support PoE. For PoE functionality, consider the MS350-48LP-HW (370W PoE+) or MS350-48FP-HW (740W PoE+) models.

Q: What Layer 3 routing protocols does this switch support?
A: The MS350-48-HW supports advanced Layer 3 routing including static routing, OSPFv2 dynamic routing, multicast routing with IGMP snooping, DHCP relay, DHCP server, and VRRP for redundancy.

Q: Can I stack multiple MS350-48-HW switches together?
A: Yes, the switch supports physical stacking of up to 8 switches using dedicated stacking ports with 160 Gbps stacking bandwidth. Stacking cables (MA-CBL-40G series) are sold separately. Virtual stacking is also available for dashboard-level management without physical stacking.

Q: What type of management does this switch require?
A: The MS350-48-HW is exclusively cloud-managed through the Meraki Dashboard. It requires a Meraki Enterprise license subscription to operate. There is no local CLI or web GUI; all configuration and monitoring is performed through the browser-based cloud dashboard.

Q: What are the uplink options for this switch?
A: The switch includes 4x 10G SFP+ uplink ports that support both 1G and 10G fiber transceivers for high-speed connectivity to distribution or core switches. Compatible with standard Cisco/Meraki SFP and SFP+ modules.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
