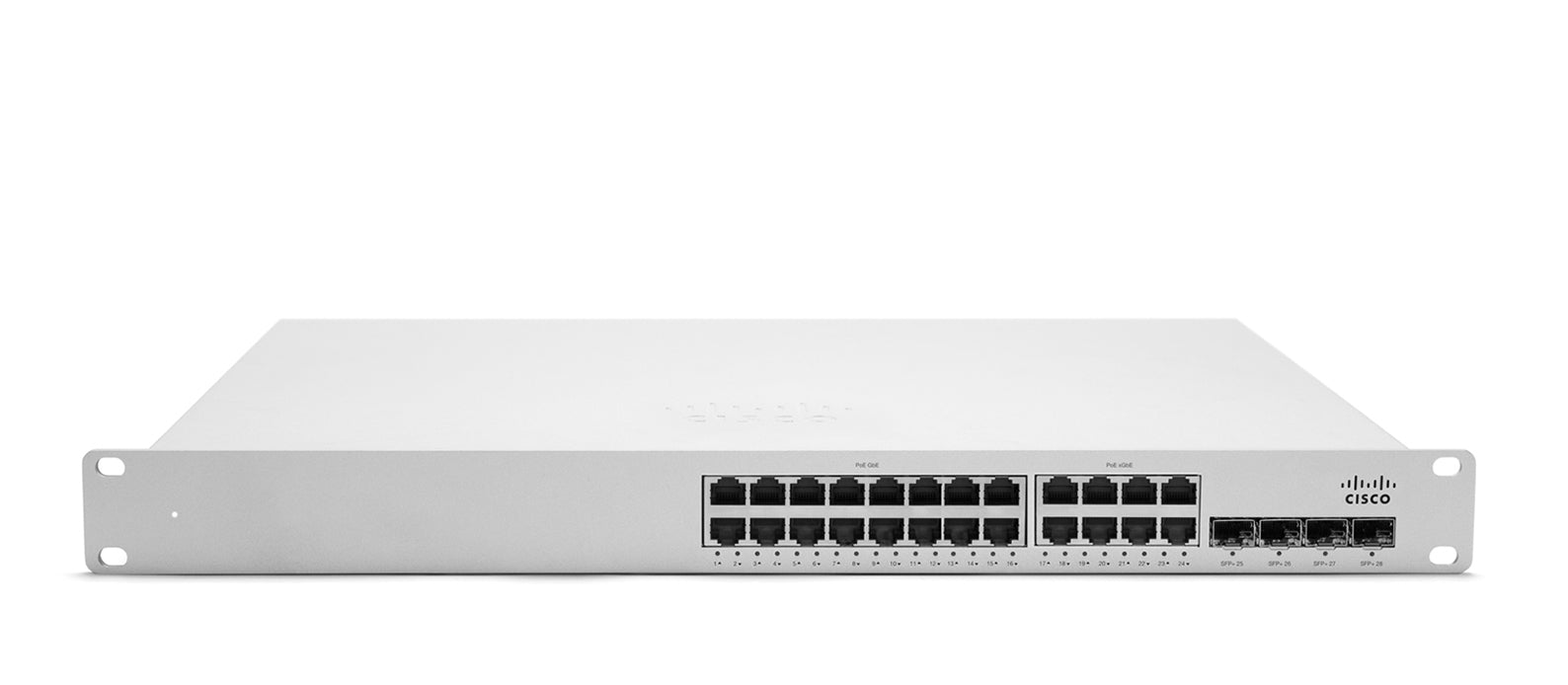

• Meraki MS350-24X-HW silver cisco switch with black ports
1 1

Meraki

Meraki MS350-24X-HW | MS350 24-Port mGig UPoE Switch, 1025W PSU, 4x 10G SFP+

MS350-24X-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS350-24X is a cloud-managed, stackable Layer 3 access switch from the Meraki MS350 series. It suits campus and enterprise access layers and wiring closets, where it can power high-performance 802.11ax and 802.11ac access points, servers and workstations over multigigabit UPoE.

The front panel combines 16 x 10/100/1000BASE-T RJ45 ports with 8 x multigigabit RJ45 ports that run at 100M, 1G, 2.5G, 5G or 10G and support UPoE. Four 10G SFP+ ports provide uplinks, and two stacking ports deliver 160 Gbps of stacking bandwidth for up to 8 switches per stack. Switching capacity is 272 Gbps with a forwarding rate of 202.38 Mpps. A 1025W hot-swappable power supply gives a 740W PoE budget in redundant mode and 1440W when a second supply is fitted for combined power.

This is the hardware-only SKU. The switch is managed through the Meraki Dashboard and requires a Meraki Enterprise licence for the MS350-24X, purchased separately in 1, 3, 5, 7 or 10 year terms.

It is compatible with the MA-PWR-1025WAC power supply, MA-FAN-18K system fan and MA-CBL-40G-50CM, MA-CBL-40G-1M and MA-CBL-40G-3M stacking cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud management through the Meraki Dashboard with zero-touch provisioning
- Layer 3 routing with static routes, OSPFv2 and PIM-ASM multicast
- Virtual Stacking and physical stacking for simplified multi-switch management
- Hot-swappable, field-replaceable power supplies and fans
- Remote diagnostics including packet capture, cable test, ping and traceroute
- 802.1X, MAB, DHCP snooping, Dynamic ARP Inspection and IPv4/IPv6 ACLs
- Layer 7 application and OS fingerprinting
- Automatic and scheduled firmware upgrades from the cloud

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: MS350-24X-HW
- Ports: 16 x 10/100/1000BASE-T RJ45
- Multigigabit ports: 8 x 100M/1G/2.5G/5G/10G RJ45 with UPoE
- Uplinks: 4 x 10G SFP+
- Stacking: 2 x stacking ports, 160 Gbps, up to 8 switches per stack
- Switching capacity: 272 Gbps
- Forwarding rate: 202.38 Mpps
- PoE budget: 740W redundant, 1440W combined
- Power supply: 1025W AC hot-swappable (MA-PWR-1025WAC), second supply sold separately
- Power consumption: 215W idle, 867W full load with combined power
- Power input: 100-240 VAC, 47-63 Hz
- MAC forwarding entries: 512K
- VLANs: up to 4,094 (802.1Q)
- Jumbo frames: 9600 byte
- Link aggregation: 802.3ad, up to 8 ports per aggregate
- Dimensions (H x W x D): 4.44 x 48.46 x 59.47 cm (1.74 x 19.08 x 23.4 in)
- Weight: 6.6 kg (14.48 lb), base chassis
- Mounting: 1U rack-mountable
- Fans: 2 x pre-installed (MA-FAN-18K)
- Operating temperature: -5 to 50 C
- Humidity: 5 to 95% non-condensing
- MTBF at 25 C: 321,515 hours
- Regulatory: CSA-US, FCC, IC, CE, RCM, RoHS

FAQs

Q: Does the MS350-24X-HW include a licence?
A: No. This is the hardware SKU. Each switch requires a Meraki Enterprise licence for the MS350-24X, purchased separately in 1, 3, 5, 7 or 10 year terms, to stay operational in the Dashboard.

Q: How much PoE power does it provide?
A: The PoE budget is 740W in redundant power mode and 1440W in combined mode with two 1025W power supplies. The 8 multigigabit ports support UPoE.

Q: Which power supply and stacking cables does it use?
A: It uses the MA-PWR-1025WAC hot-swappable power supply. Stacking cables are MA-CBL-40G-50CM, MA-CBL-40G-1M and MA-CBL-40G-3M.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: How many switches can be stacked together?
A: Up to 8 MS350 switches can be stacked using the two stacking ports, with 160 Gbps of stacking bandwidth.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
