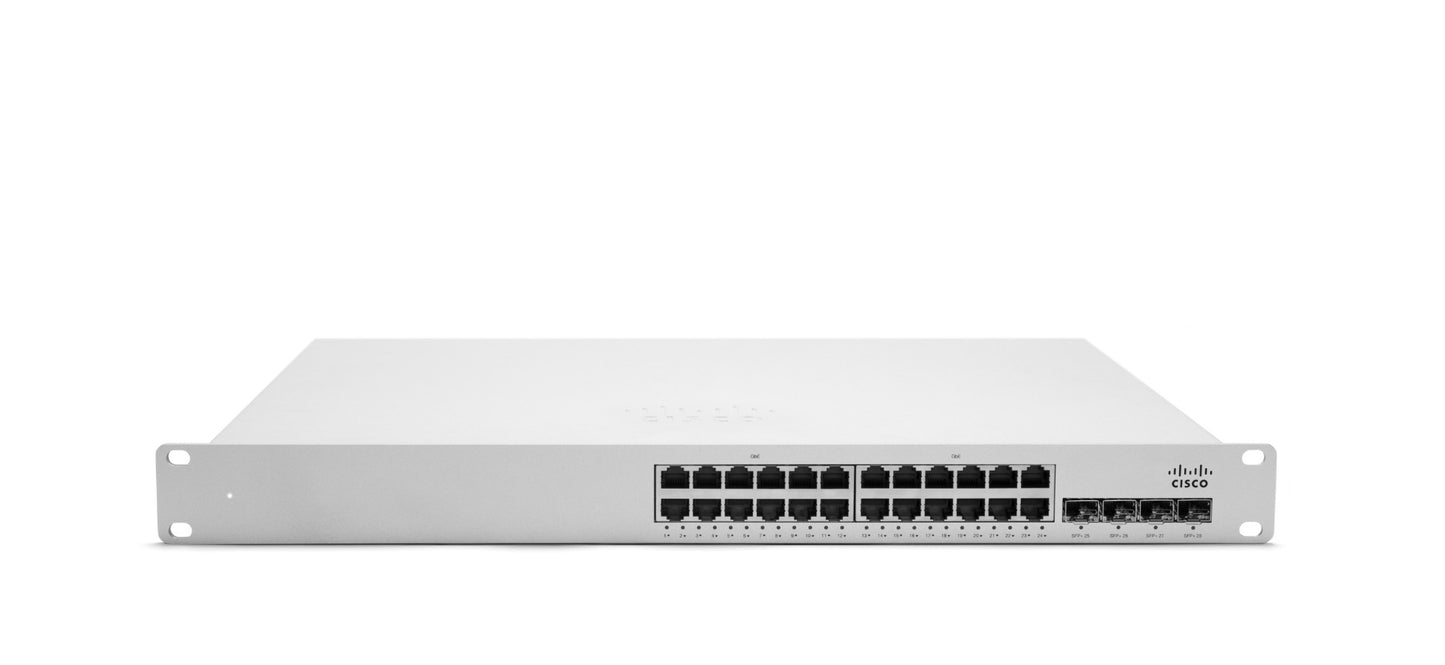

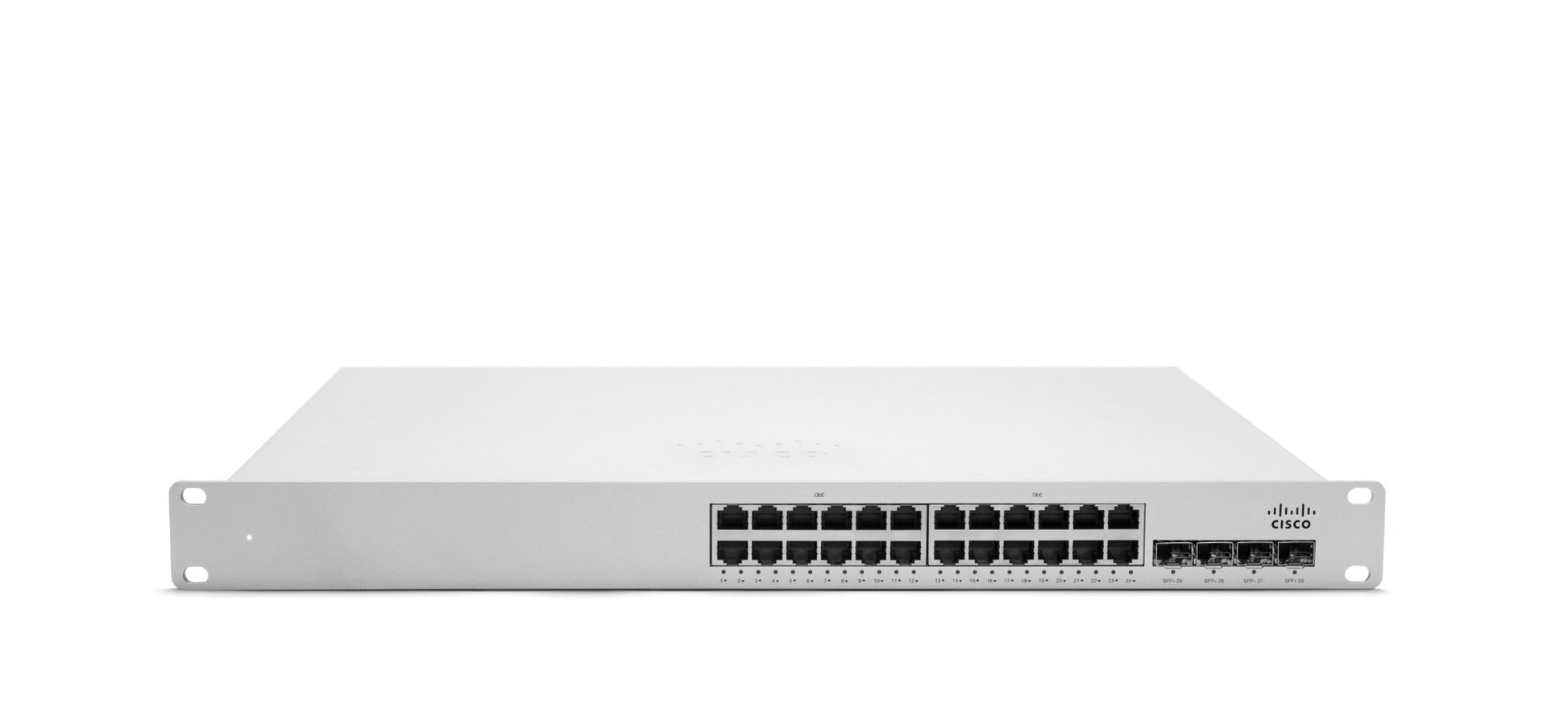

• Meraki MS350-24P-HW: 24-port 1G PoE+ silver switch with 4x 10G SFP+ uplinks
1 1

Meraki

Meraki MS350-24P-HW | MS350 24-Port PoE+ Switch, 370W, 4x 10G SFP+, 640W PSU

MS350-24P-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS350 24-port switch is a cloud-managed, Layer 3 stackable access switch built for campus and enterprise access-layer deployments. It suits sites that need PoE+ for IP phones, wireless access points and cameras, with 10G uplinks and centralised management through the Meraki Dashboard.

This model provides 24 Gigabit RJ45 ports with a 370W PoE budget, supporting 802.3af and 802.3at on all ports simultaneously, up to 30W per port. Four 10G SFP+ uplinks handle aggregation, and two dedicated stacking ports deliver 160G of stacking bandwidth. Switching capacity is 128 Gbps with a forwarding rate of 95.24 Mpps. This is the 24-port, 370W PoE+, 640W PSU variant with a hot-swappable power supply.

The MS350-24P-HW is the hardware-only SKU and requires a Meraki Enterprise cloud-management licence for the MS350-24P, sold separately. Without a valid licence the switch cannot be managed from the Dashboard. It stacks with other MS350 units, and the SFP+ ports accept 1G and 10G SFP and SFP+ optics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud-managed through the Meraki Dashboard with visibility and control over thousands of ports
- Virtual stacking across thousands of ports in one logical stack
- Physical stacking of up to 8 units at 160G
- Layer 3 switching with OSPF, warm spare (VRRP) and DHCP server and relay
- Packet capture and cable test tools in the Dashboard
- Scheduled automatic firmware upgrades
- Field-replaceable, hot-swappable redundant power supplies and fans
- Voice and video QoS with 802.1X authentication, DHCP snooping and IPv4/IPv6 ACLs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Interfaces: 24 x 10/100/1000BASE-T RJ45 with auto negotiation and auto-MDIX (10M half-duplex not supported)
- Uplinks: 4 x 10G SFP+
- Stacking ports: 2 x stacking ports
- Stacking bandwidth: 160G (dual interface)
- Switching capacity: 128 Gbps
- Forwarding rate: 95.24 Mpps
- PoE budget: 370W
- PoE standards: 802.3af (15.4W per port) and 802.3at (up to 30W per port), on all ports simultaneously
- Power supply: 1 x MA-PWR-640WAC (640W), hot-swappable
- Power input: 100-240 VAC, 47-63 Hz
- Power consumption: 57W idle, 466W at full load
- Latency: 2.5 microseconds, non-blocking fabric
- VLAN support: 802.1Q, up to 4,094 VLANs
- Spanning tree: 802.1D and 802.1w (STP, RSTP)
- QoS: 802.1p, 8 queues, configurable DSCP to CoS mapping
- MAC forwarding entries: up to 96K

FAQs

Q: Does the MS350-24P-HW need a licence?
A: Yes. This is the hardware-only SKU and it requires a Meraki Enterprise cloud-management licence for the MS350-24P, sold separately. Without a valid licence the switch cannot be managed from the Dashboard.

Q: How much PoE power does it provide?
A: It provides a 370W PoE budget across its 24 ports. Both 802.3af and 802.3at are supported on all ports at once, with up to 30W per port.

Q: What power supply does it use?
A: It uses the hot-swappable Meraki MA-PWR-640WAC 640W AC power supply, with an input of 100-240 VAC. It draws 57W at idle and 466W at full load.

Q: Can it be stacked with other switches?
A: Yes. It stacks with other MS350 units over its 2 stacking ports at 160G, up to 8 units in a physical stack. Virtual stacking in the Dashboard can span thousands of ports.

Q: What optics do the SFP+ uplinks accept?
A: The 4 SFP+ ports accept 1G and 10G SFP and SFP+ optics, so they can be used for fibre or direct-attach uplinks.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
