• Meraki MS350-24-HW: 24-port 1G silver switch with 10G uplinks
1 1

Meraki

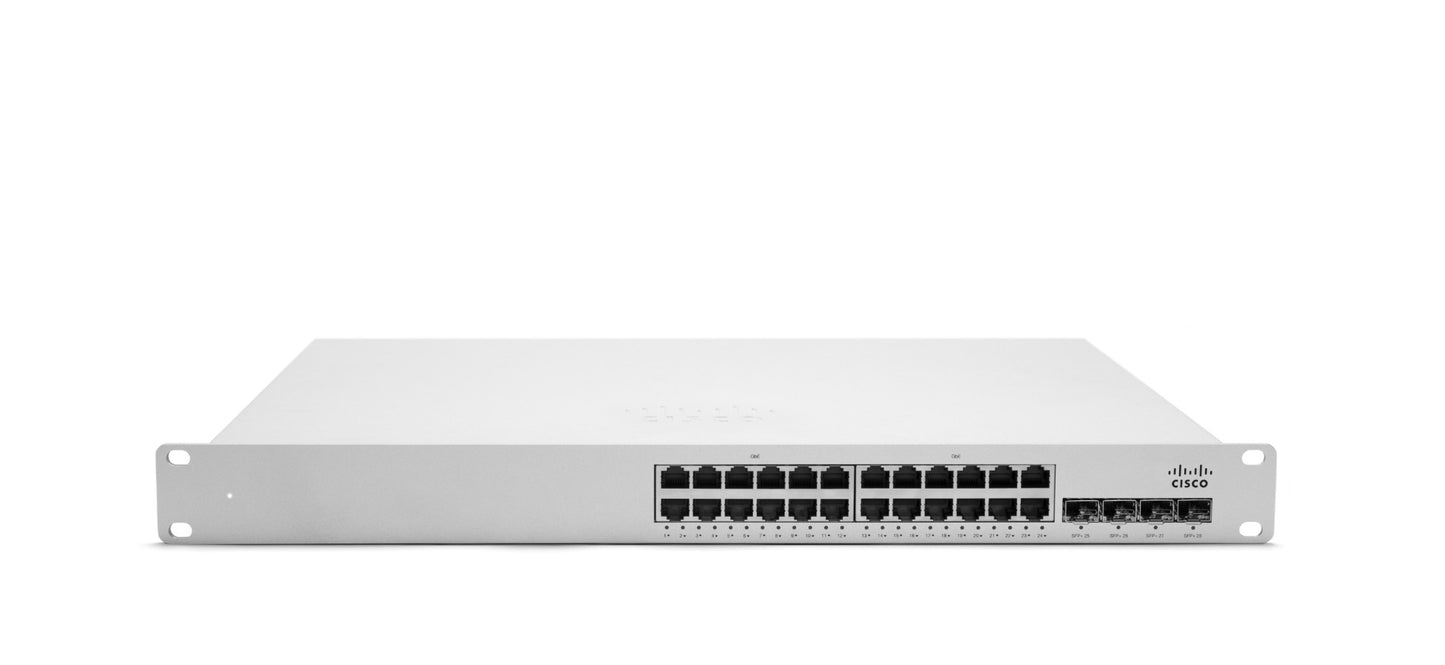

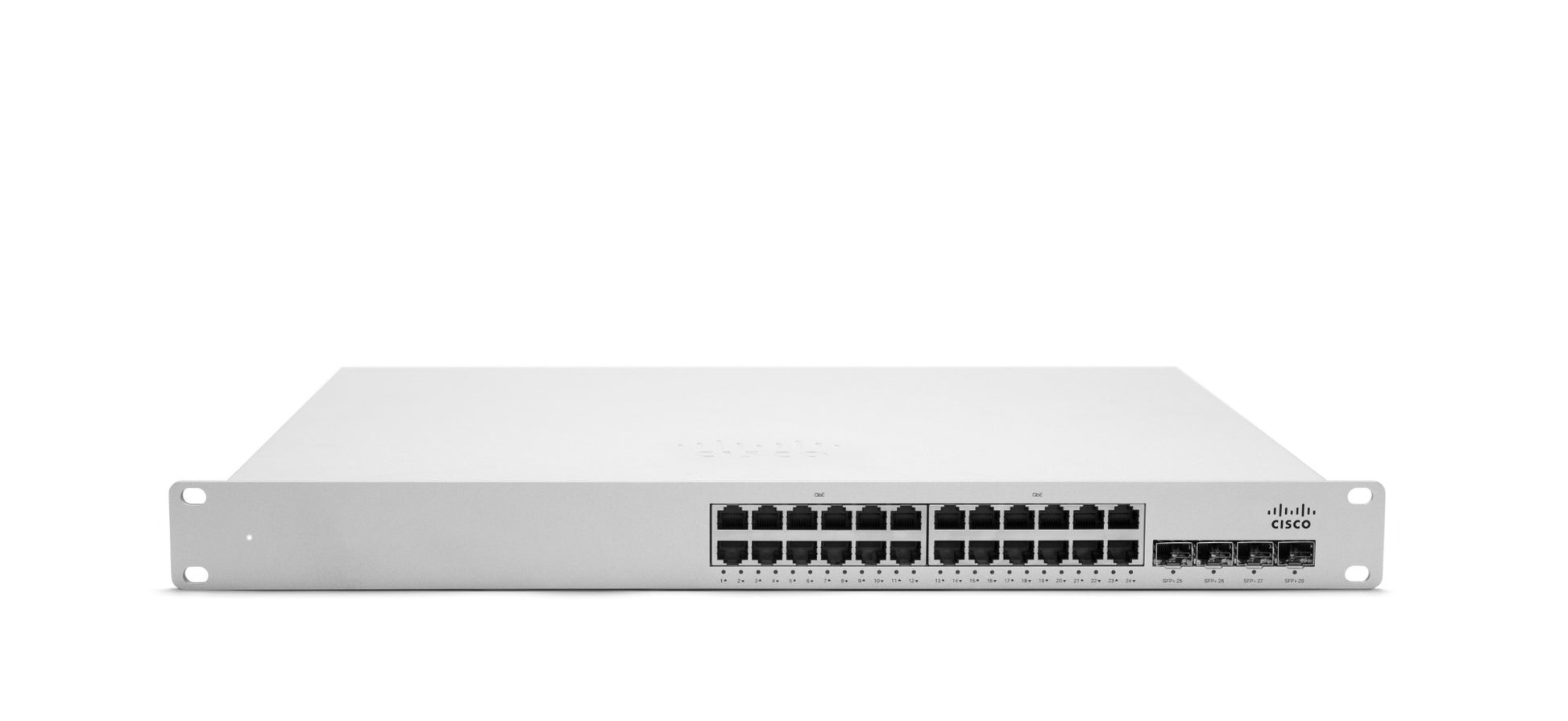

Meraki MS350-24-HW | MS350 24-Port Gigabit Switch, 4x 10G SFP+, Non-PoE

MS350-24-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS350-24 is a cloud-managed, Layer 3 stackable access switch built for campus networks, enterprise wiring closets, offices and classrooms where stacking, 10G uplinks and central management are needed. It is managed through the Meraki Dashboard with zero-touch provisioning.

It provides 24 x 10/100/1000BASE-T RJ45 ports with auto negotiation and auto-MDIX, plus 4 x 10GbE SFP+ uplinks. This is the non-PoE model, so it does not supply power to connected devices. Switching capacity is 128 Gbps with a forwarding rate of 95.24 Mpps and a 96,000-entry MAC address table. Two stacking ports provide 160G of stacking bandwidth, and six QoS queues support converged voice, video and data traffic. The chassis is 1U rack-mount, with a modular 250W AC power supply bay pair and two hot-swap fan modules.

The -HW SKU is hardware only, so a valid Meraki per-device cloud licence for the MS350-24 is required to operate it and is sold separately. It stacks with other MS350 series switches using MA-CBL-40G stacking cables, and the uplink ports accept Meraki-compatible SFP+ modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud management through the Meraki Dashboard with zero-touch provisioning
- Layer 3 switching including OSPF
- Dual stacking interfaces with up to 160G bandwidth
- Redundant, field-replaceable power supply support
- Live Tools including packet capture and cable test
- Non-blocking switch backplane
- Dynamic ARP Inspection, DHCP Snooping and 802.1X authentication
- Role-based administration and scheduled automatic firmware upgrades
- Warm spare capable

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: MS350-24-HW
- Interfaces: 24 x 10/100/1000BASE-T RJ45 with auto negotiation and auto-MDIX
- Uplinks: 4 x 10GbE SFP+
- Stacking ports: 2 x stacking ports
- Stacking bandwidth: 160G
- Switching capacity: 128 Gbps
- Forwarding rate: 95.24 Mpps
- MAC address table size: 96,000 entries
- PoE: None (non-PoE model)
- Layer 3 routing: Yes
- QoS: 6 dedicated queues for voice, video and data
- Management interface: 1 x dedicated RJ45 management port
- Power supply: MA-PWR-250WAC 250W AC, 2 PSU slots
- Fans: 2 x MA-FAN-16K hot-swap fan modules
- Dimensions (H x W x D): 4.44 x 48.46 x 51.81 cm
- Weight: 5.61 kg
- Form factor: 1U rack-mount

FAQs

Q: Does the MS350-24-HW need a licence?
A: Yes. It requires a valid Meraki per-device cloud licence for the MS350-24 to operate. The -HW SKU is hardware only and the licence is sold separately.

Q: Does this switch provide PoE?
A: No. The MS350-24 is a non-PoE model. For PoE ports, look at the MS350-24P.

Q: What power supply does it use?
A: It uses the modular MA-PWR-250WAC 250W AC power supply. It has two PSU slots, so a second supply can be fitted for redundancy.

Q: How do I stack it with other switches?
A: It stacks with other MS350 series switches over its two stacking ports at up to 160G, using MA-CBL-40G-50CM, MA-CBL-40G-1M or MA-CBL-40G-3M stacking cables.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
