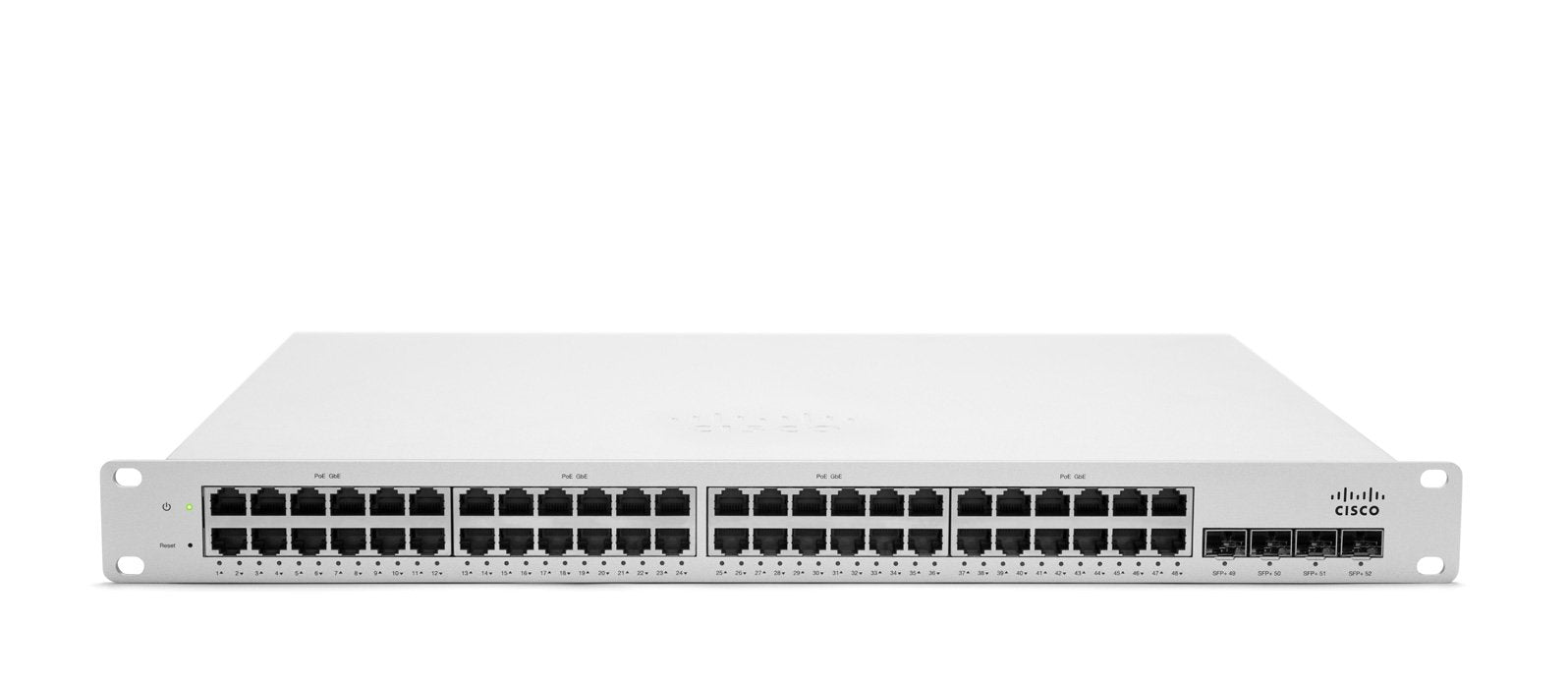

• Meraki MS320-48LP-HW silver Cisco switch with black ports
1 1

Meraki

Meraki MS320-48LP-HW | MS320 48-Port PoE+ Switch, 370W, 4x 10G SFP+

MS320-48LP-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS320-48LP is a cloud-managed Layer 3 access switch built for branch and campus deployments that need PoE+ for IP phones, cameras and wireless access points. It also suits sites that need routing at the edge and high-speed 10G uplinks back to the core. It is managed through the Meraki Dashboard with zero-touch provisioning.

It provides 48 x 10/100/1000BASE-T RJ45 ports with 802.3af and 802.3at PoE/PoE+, drawing on a 370W PoE budget, plus 4 x 10GbE SFP+ uplink ports. Switching capacity is 176 Gbps with a forwarding rate of 130.95 Mpps. Layer 3 features include static routing, OSPFv2, DHCP server, DHCP helper and warm spare. The 370W budget covers roughly 24 x 802.3af devices or 12 x 802.3at devices at full allocation. This is the -HW hardware SKU, and the Enterprise licence required for cloud management is sold separately.

The MS320 family supports the Meraki SFP+ modules MA-SFP-10GB-SR, MA-SFP-10GB-LRM and MA-SFP-10GB-LR, as well as the MA-CBL-TA-3M twinax cable. It uses a modular power supply, with the MA-PWR-640WAC as the default and a second unit available for redundancy.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud management through the Meraki Dashboard with zero-touch provisioning
- Layer 3 routing at the access layer with static routing, OSPFv2, DHCP server and warm spare
- 802.3af/802.3at PoE/PoE+ on all 48 ports from a 370W budget
- Modular power supply with optional redundancy
- Virtual stacking for unified management
- Security features including 802.1X, sticky MAC, MAC whitelisting, BPDU guard, root guard and IPv4 ACLs
- Layer 2-4 QoS for traffic prioritisation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000BASE-T RJ45 with 802.3af/802.3at PoE/PoE+
- Uplinks: 4 x 10GbE SFP+
- PoE budget: 370W
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps
- MAC forwarding entries: 32,000
- Layer 3 features: static routing, DHCP helper, OSPFv2, warm spare, DHCP server
- Management: Meraki cloud Dashboard, SNMP v1/v2c/v3
- Power supply: MA-PWR-640WAC, 640W AC
- Redundant power supply: second MA-PWR-640WAC supported
- Power input: 100-240 VAC, 47-63 Hz
- MTBF: 282,970 hours
- Dimensions (H x W x D): 4.44 x 48.6 x 51.79 cm (1.74 x 19.1 x 20.39 in)
- Operating temperature: 0 to 40 C
- Storage temperature: -20 to 70 C
- Humidity: 5% to 95% non-condensing
- Mounting: 1U rack-mount and desktop

FAQs

Q: Does the MS320-48LP-HW include a Meraki licence?
A: No. The -HW SKU is hardware only. A Meraki Enterprise licence is required for cloud management and is sold separately by Meraki.

Q: How many PoE devices can the 370W budget power?
A: The 370W budget covers about 24 x 802.3af (15.4W) devices or 12 x 802.3at (30W) devices at full allocation. All 48 ports support PoE/PoE+, but total draw is limited by the budget.

Q: Which SFP+ modules work in the uplink ports?
A: The MS320 series supports the Meraki MA-SFP-10GB-SR (400m), MA-SFP-10GB-LRM (220m) and MA-SFP-10GB-LR (10km) modules. The MA-CBL-TA-3M 3m twinax cable is also supported.

Q: Can I add a redundant power supply?
A: Yes. The switch uses the MA-PWR-640WAC 640W AC power supply, and a second MA-PWR-640WAC can be added for redundancy.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.
