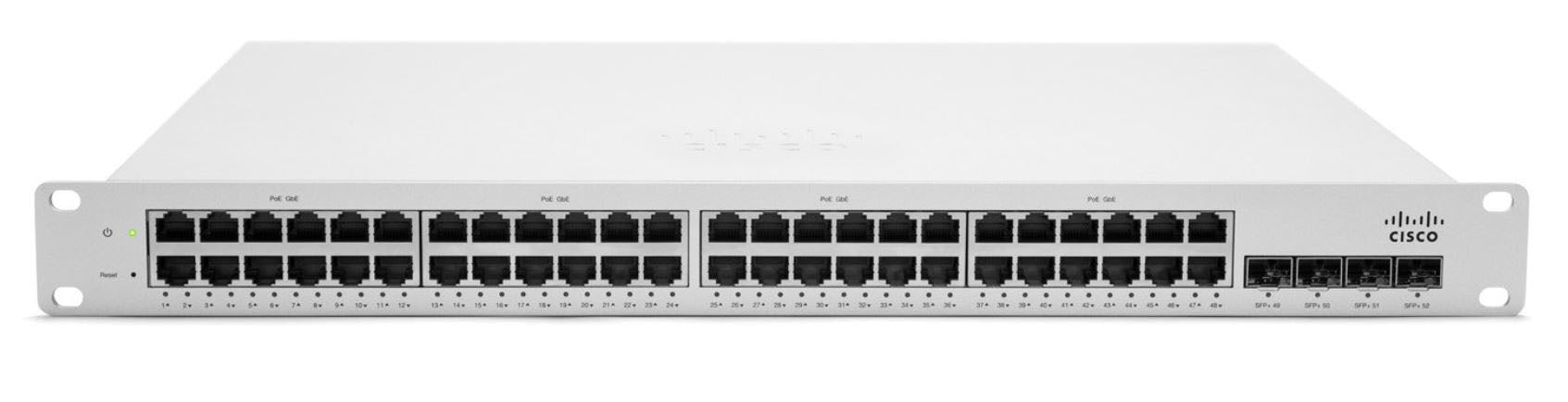

• Meraki MS320-48-HW silver L3 switch with black ports and white label
1 1

Meraki

Meraki MS320-48-HW | MS320 48-Port Gigabit L3 Switch, 4x 10G SFP+, 176 Gbps

MS320-48-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS320-48 is a cloud-managed Layer 3 access switch for branch and campus deployments. It is configured and monitored through the Meraki dashboard, which suits distributed multi-site networks that need central management, and it can provide 10GbE uplinks to aggregation switches such as the MS425.

The switch provides 48 x 10/100/1000BASE-T RJ45 ports and 4 x SFP+ 10GbE uplink ports, with 176 Gbps of switching capacity and a non-blocking fabric with 2.5 microsecond latency. This is the non-PoE 48-port model, so it provides no PoE budget. Layer 3 features include static routing, DHCP relay, a DHCP server, OSPFv2 and warm spare gateway redundancy. It is powered by a hot-swappable MA-PWR-250WAC supply with a second slot for an optional redundant unit, and it mounts in 1U of rack space. Dashboard management requires a Meraki cloud-managed switch licence matched to the MS320-48 model.

For uplinks, it works with the Meraki optics MA-SFP-1GB-TX, MA-SFP-1GB-SX, MA-SFP-1GB-LX10, MA-SFP-10GB-SR, MA-SFP-10GB-LRM and MA-SFP-10GB-LR, as well as the MA-CBL-TA-1M and MA-CBL-TA-3M twinax cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud management through the Meraki dashboard with zero-touch provisioning
- Virtual stacking to manage thousands of ports as a single logical stack
- Layer 7 visibility with OS, client and hostname fingerprinting
- Live tools including packet capture and cable test
- 802.1X port-based access control, MAC-based RADIUS authentication, sticky MAC and MAC whitelisting
- QoS, voice VLAN, port mirroring, DHCP snooping and IGMP snooping
- LACP, rapid spanning tree, BPDU guard and root guard
- Role-based administration, two-factor authentication and IPv4 ACLs
- Automatic scheduled firmware upgrades delivered from the cloud

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000BASE-T RJ45, non-PoE
- Uplinks: 4 x SFP+ 10GbE
- Switching capacity: 176 Gbps
- Latency: 2.5 microseconds, non-blocking fabric
- Layer 3: static routing, DHCP relay, DHCP server, OSPFv2, warm spare
- MAC forwarding entries: 32,000
- VLANs: 802.1Q tagging for up to 4,095 VLANs
- Link aggregation: 802.3ad, up to 8 ports per aggregate
- Jumbo frames: 9600 byte Ethernet frame
- Auto negotiation and auto-MDIX crossover detection
- PoE: none (non-PoE model)
- Power supply: MA-PWR-250WAC, hot-swappable, optional redundant second supply
- Power input: 100-240 VAC, 47-63 Hz
- Power draw: 34 W idle, 55 W full load
- Dimensions (H x W x D): 4.44 x 48.6 x 51.79 cm, depth includes PSU
- Weight: 5.16 kg
- Form factor: 1U rack-mountable
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95% non-condensing
- MTBF: 291,960 hours
- Regulatory: CSA, IC, CE, C-Tick, RoHS

FAQs

Q: Does the MS320-48 need a licence?
A: Yes. It requires a Meraki cloud-managed switch licence matched to the MS320-48 model for dashboard management. Without a valid licence the switch stops functioning.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: Does this switch provide PoE?
A: No. This is the non-PoE model and provides no PoE or PoE+ power budget. For PoE devices, choose a PoE variant of the MS320 range.

Q: Can I add power redundancy?
A: Yes. The switch uses a hot-swappable MA-PWR-250WAC supply and has a second slot that accepts another MA-PWR-250WAC for redundancy.

Q: Which optics work in the SFP+ uplink ports?
A: The Meraki optics MA-SFP-1GB-TX, MA-SFP-1GB-SX, MA-SFP-1GB-LX10, MA-SFP-10GB-SR, MA-SFP-10GB-LRM and MA-SFP-10GB-LR are supported. The MA-CBL-TA-1M and MA-CBL-TA-3M 10GbE twinax cables also work.

Q: Does this switch support Layer 3 routing?
A: Yes. It supports static routing, DHCP relay, a DHCP server and OSPFv2, with warm spare for Layer 3 gateway redundancy. OSPF and warm spare do not operate concurrently.
