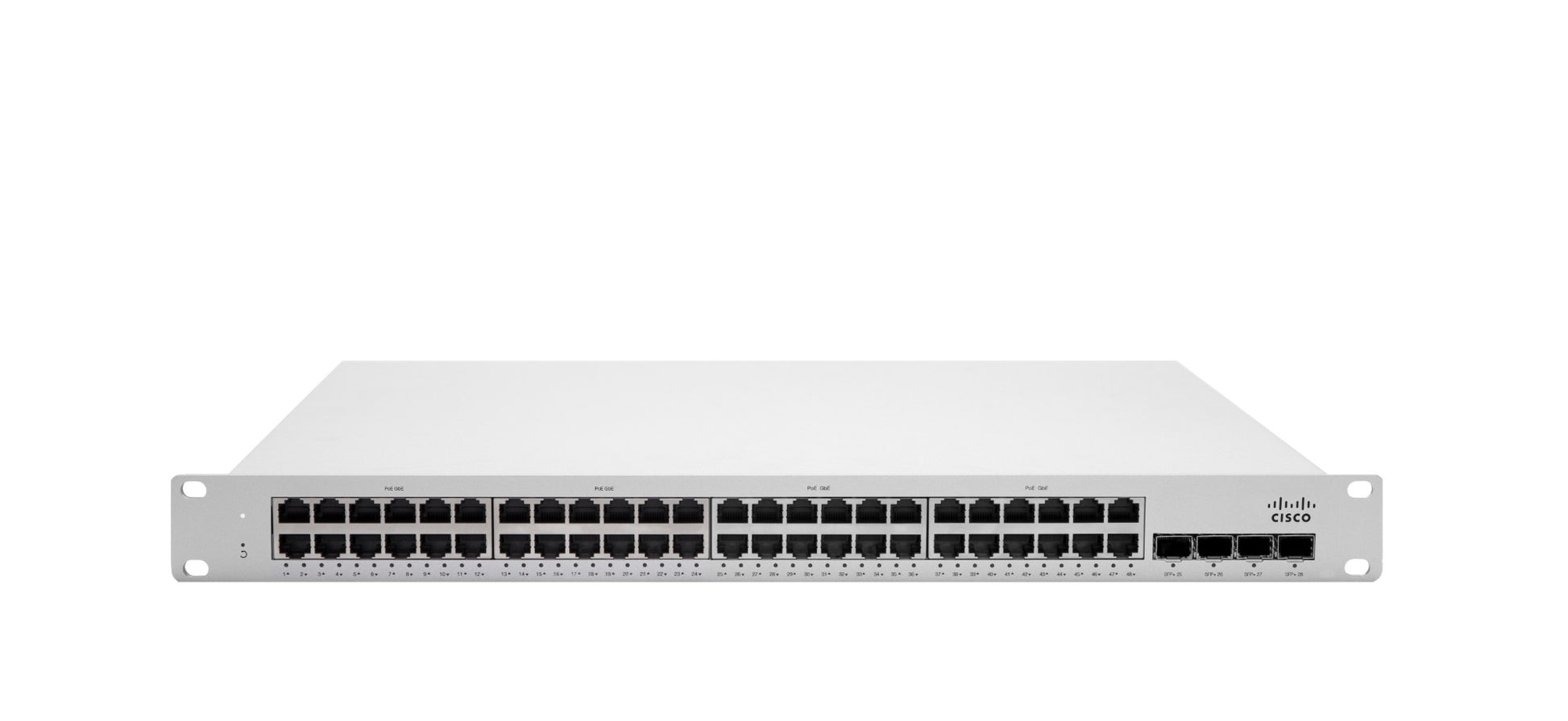

• Meraki MS250-48FP-HW silver switch with black ports and white faceplate
1 1

Meraki

Meraki MS250-48FP-HW | MS250 48-Port PoE+ Switch, 740W, 4x 10G SFP+

MS250-48FP-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS250-48FP is a cloud-managed, stackable Layer 3 access switch from the Meraki MS250 series. It suits small campus and branch access-layer deployments that need high-density PoE+ for access points, IP cameras and VoIP phones, all managed through the Meraki Dashboard.

This full-power 48-port model provides 48 x 10/100/1000 RJ45 PoE+ ports with a 740W PoE budget, plus 4 x 10G SFP+ uplink ports. It delivers 176 Gbps of switching capacity, supports static Layer 3 routing, and can be stacked physically through 2 dedicated stacking ports with 80 Gbps of stacking bandwidth, as well as virtually. The power supply bay is hot-swappable and supports dual supplies for redundancy.

This -HW SKU is the hardware only. A Meraki Enterprise switch licence is required to operate the switch and manage it in the Meraki Dashboard. The switch is 1RU and rack-mountable.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud management through the Meraki Dashboard, with remote monitoring and automatic firmware updates
- Static Layer 3 routing at the access layer
- Physical stacking plus virtual stacking
- Redundant, hot-swappable power supply bay supporting dual supplies
- PoE+ ports to power access points, IP cameras and phones
- Energy efficient design

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Port quantity: 48
- Ports: 48 x 10/100/1000 RJ45 PoE+ and 4 x SFP+
- Uplink interfaces: 4 x 10G SFP+
- Available PoE power: 740W
- Switching capacity: 176 Gbps
- Forwarding rate (64-byte packets): 127.98 mpps
- Stacking: physical and virtual
- Stacking bandwidth: 80 Gbps
- OSI layer: Layer 3 (static routing)
- MAC addresses: 32K
- VLAN IDs: 4094
- Jumbo frame support: 9578 bytes
- AC input voltage: 100 to 240 VAC, 47-63 Hz
- Power supply: hot-swappable, supports dual redundant supplies
- Fans: Internal
- Rack units: 1RU
- Dimensions (H x W x D): 4.38 x 48.46 x 51.87 cm
- Weight: 5.82 kg
- Operating temperature: -5 to 50 C
- Storage temperature: -20 to 70 C
- Operating humidity: 5 to 95% (non-condensing)
- Predicted reliability (MTBF): 338,366 hours

FAQs

Q: Does this switch need a licence to work?
A: Yes. A Meraki Enterprise switch licence is required to operate the switch and manage it in the Meraki Dashboard. The -HW SKU is hardware only and does not include the licence.

Q: How much PoE power does it provide?
A: It has a 740W PoE+ budget shared across its 48 RJ45 ports, which is the full-power configuration for the 48-port MS250.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: How do I stack it with other switches?
A: It stacks with other MS250 switches using its 2 dedicated stacking ports, giving 80 Gbps of stacking bandwidth. Virtual stacking is also supported.

Q: How does it differ from the non-PoE or lower-power 48-port models?
A: This 48FP variant provides full-power PoE+ with a 740W budget across 48 ports, whereas other MS250 48-port models offer a lower PoE budget or no PoE.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
