Meraki

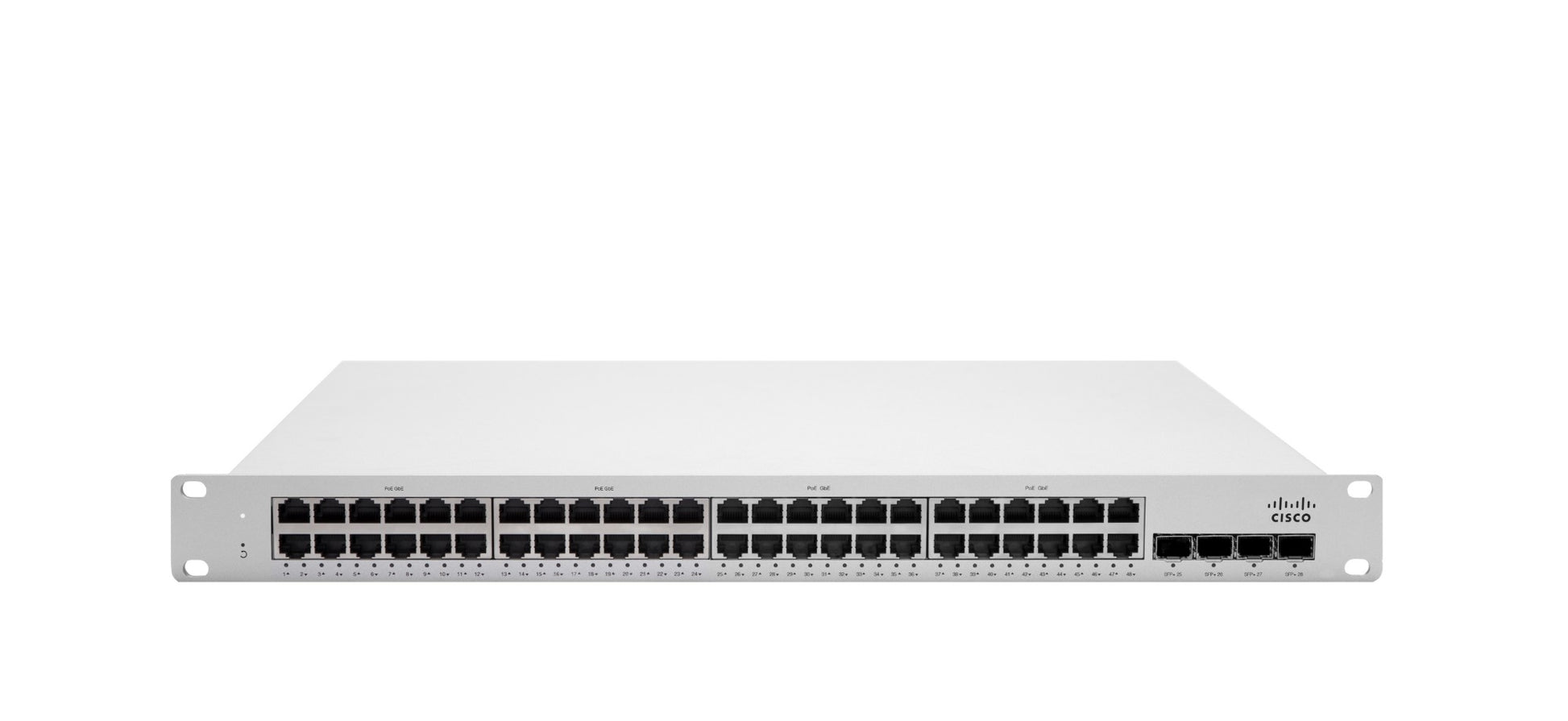

Meraki MS250-48-HW | MS250 48-Port Gigabit Switch, 4x 10G SFP+, 250W PSU

MS250-48-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS250-48 is a cloud-managed, stackable Layer 3 access switch from the Meraki MS250 Series. It is built for medium-size enterprise and campus networks, including wiring closets, offices and classrooms, where zero-touch provisioning and dashboard management keep deployment simple.

This 48-port, non-PoE model provides 48 10/100/1000BASE-T RJ45 ports and 4 x 10G SFP+ uplinks, with 176 Gbps of switching capacity. Two dedicated stacking ports give 80 Gbps of stacking bandwidth and allow physical stacks of up to 8 switches. Layer 3 features include static routing and OSPFv2. It has a hot-swappable 250W AC power supply bay, with idle and full-load draw of 24 and 44 W, and there is no PoE budget on this model. It runs under a Meraki Enterprise cloud licence in the Meraki dashboard.

The second power supply bay accepts a MA-PWR-250WAC for redundancy. Stacking uses the 40G Meraki stacking cables MA-CBL-40G-50CM, MA-CBL-40G-1M and MA-CBL-40G-3M.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud dashboard management with zero-touch provisioning
- Physical stacking of up to 8 members plus Virtual Stacking for unified configuration
- Warm spare failover for stacked switches
- Layer 7 application and OS fingerprinting
- Remote diagnostics including packet capture, cable test, ping and traceroute
- Access security with 802.1X, MAB, DHCP snooping, Dynamic ARP Inspection and IPv4/IPv6 ACLs
- LACP with MLAG on stacked switches
- Scheduled and automatic firmware upgrades from the cloud

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: MS250-48-HW
- Ports: 48 x 10/100/1000BASE-T RJ45 with auto negotiation and auto-MDIX
- PoE: None (non-PoE)
- Uplinks: 4 x 10G SFP+
- Stacking ports: 2 x stacking ports
- Switching capacity: 176 Gbps
- Stacking bandwidth: 80 Gbps
- Forwarding rate: 127.98 mpps
- Physical stacking: up to 8 switches
- MAC forwarding entries: 32K
- VLAN support: 802.1Q, up to 4,094 VLANs
- QoS: 802.1p, 8 queues
- Link aggregation: 802.3ad, up to 8 ports per aggregate
- Jumbo frame support: 9578 byte
- Layer 3: Static routing, OSPFv2, Warm Spare (VRRP), DHCP relay, DHCP server
- Power supply: Hot-swappable, 1 x 250W (MA-PWR-250WAC), supports 2 x 250W PSU
- Power input: 100-240 VAC, 47-63 Hz
- Idle / full load power: 24 / 44 W
- Dimensions (H x W x D): 4.38 x 48.46 x 47.8 cm (1U)
- Weight: 5.24 kg
- Operating temperature: -5 to 50 C
- Humidity: 5 to 95% non-condensing
- MTBF (at 25C): 392,906 hours
- Regulatory: CSA-US, FCC, IC, CE, RCM, RoHS

FAQs

Q: Does this switch need a licence?
A: Yes. It requires a Meraki cloud licence, the MS250-48 Enterprise licence (for example LIC-MS250-48-xYR), to stay operational in the Meraki dashboard.

Q: Does it support PoE?
A: No. The MS250-48-HW is a non-PoE model with no PoE budget. It uses a 250W AC power supply for the switch itself.

Q: Can I add a redundant power supply?
A: Yes. The chassis supports two hot-swappable 250W power supplies. The part for redundancy or replacement is MA-PWR-250WAC.

Q: Which stacking cables does it use?
A: It uses the 40G Meraki stacking cables MA-CBL-40G-50CM, MA-CBL-40G-1M or MA-CBL-40G-3M, and up to 8 switches can be physically stacked.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
