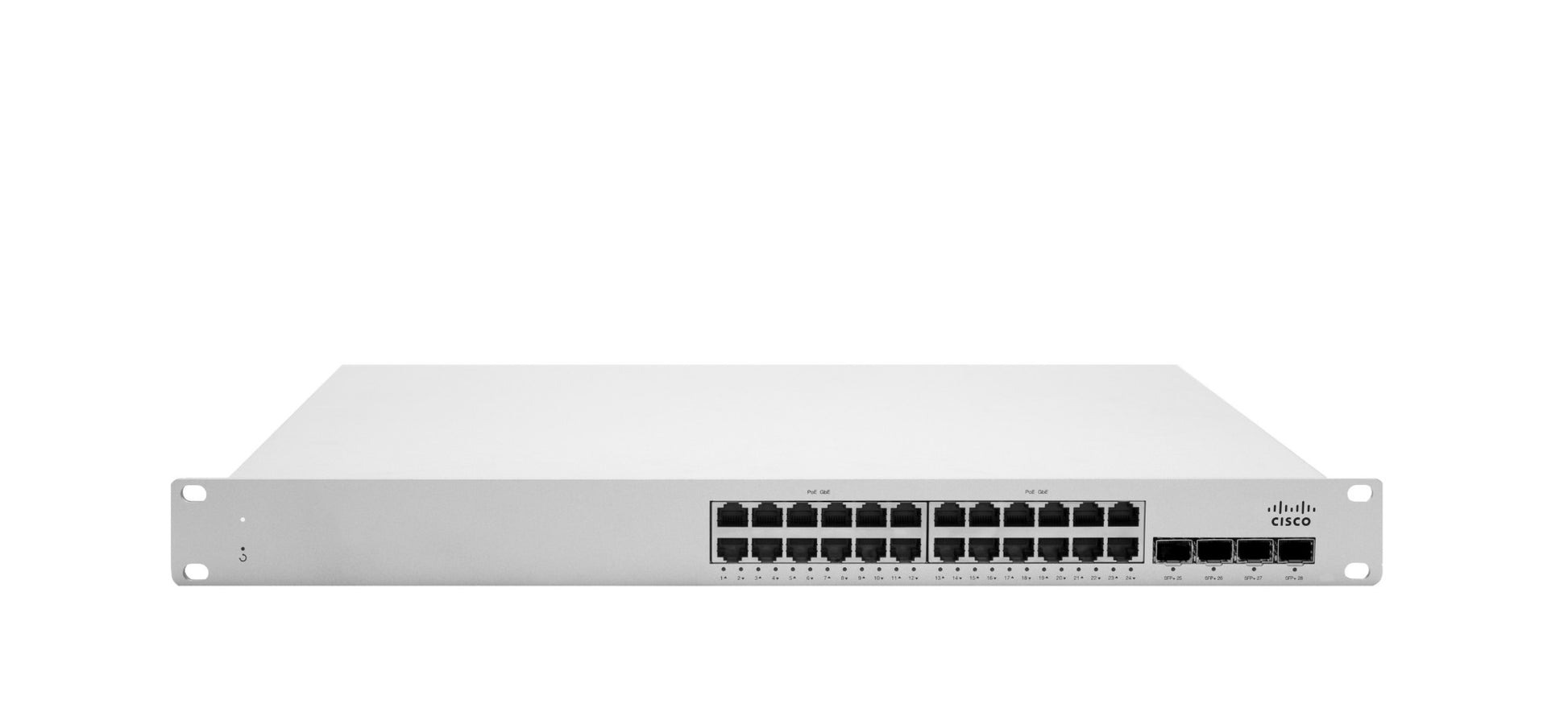

Meraki MS250-24-HW | MS250 24-Port Gigabit Switch, 4x 10G SFP+, 250W PSU

MS250-24-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS250 is a cloud-managed, stackable Layer 3 access switch built for medium-size enterprise and campus networks. This 24-port non-PoE model is managed entirely through the Meraki dashboard with zero-touch provisioning, which suits branch offices, wiring closets, classrooms and campus edge deployments that need physical stacking and redundancy.

It provides 24 x 10/100/1000BASE-T RJ45 ports and four 10G SFP+ uplinks, with 128 Gbps of switching capacity and a 95.24 Mpps forwarding rate. Two dedicated stacking ports deliver 80 Gbps of stacking bandwidth, and up to 8 units can be stacked. The 250W AC power supply is hot-swappable, with a second bay available for redundancy. This is a non-PoE model, drawing 14 W idle and 27 W at full load. It requires a Meraki MS250-24 Enterprise licence (LIC-MS250-24) to operate and connect to the dashboard.

Stacking uses Meraki 40G stacking cables (MA-CBL-40G-50CM, MA-CBL-40G-1M and MA-CBL-40G-3M). The replacement or redundant power supply is the MA-PWR-250WAC, shared with the MS250-48.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud management via the Meraki dashboard with zero-touch provisioning
- Physical stacking of up to 8 units with 80 Gbps of stacking bandwidth
- Virtual Stacking for unified configuration of many switch ports
- Layer 3 routing with static routes, OSPFv2, warm spare/VRRP and DHCP relay and server
- Field-replaceable, hot-swappable power supplies for redundancy
- 802.1X, MAB and hybrid authentication, IPv4/IPv6 ACLs, DHCP snooping and Dynamic ARP Inspection
- LACP with multichassis link aggregation on stacked switches
- Remote diagnostics including packet capture, cable test, ping and traceroute

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: MS250-24-HW
- Ports: 24 x 10/100/1000BASE-T RJ45 with auto negotiation and auto-MDIX
- Uplinks: 4 x 10G SFP+
- Stacking ports: 2
- Stacking bandwidth: 80 Gbps
- Switching capacity: 128 Gbps
- Forwarding rate: 95.24 Mpps
- MAC forwarding entries: 16K
- Jumbo frame support: 9578 bytes
- VLANs: 802.1Q, up to 4,094 VLANs
- QoS: 802.1p, 8 queues (6 configurable for DSCP-to-CoS mapping)
- Link aggregation: 802.3ad, up to 8 ports per aggregate
- PoE: None (non-PoE model)
- Power supply: Hot-swappable 250W PSU, 2 x 250W PSU supported
- Power input: 100-240 VAC, 47-63 Hz
- Power consumption: 14 W idle, 27 W full load
- Dimensions (H x W x D): 4.38 x 48.46 x 37.8 cm (1.72 x 19.08 x 14.89 in)
- Weight: 4.5 kg (9.9 lb)
- Mounting: 1U rack-mountable, 2-post front mounting, desktop-mountable
- Operating temperature: -5 to 50 C
- Humidity: 5 to 95% non-condensing
- Cooling: Variable speed fans
- MTBF (at 25 C): 633,811 hours
- Regulatory: CSA-US, FCC, IC, CE, RCM, RoHS

FAQs

Q: Does this switch need a licence to operate?
A: Yes. It requires a Meraki MS250-24 Enterprise licence (LIC-MS250-24) to operate and connect to the Meraki dashboard.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: Does the MS250-24 support PoE?
A: No. This is a non-PoE model, so it does not supply power to connected devices. For PoE you would need a PoE variant of the MS250.

Q: Which cables are used to stack MS250 switches?
A: Stacking uses Meraki 40G stacking cables: MA-CBL-40G-50CM, MA-CBL-40G-1M and MA-CBL-40G-3M. Up to 8 units can be stacked with 80 Gbps of stacking bandwidth.

Q: Can I add power supply redundancy?
A: Yes. The switch supports two hot-swappable 250W power supplies, and the part number for the second unit is MA-PWR-250WAC.
