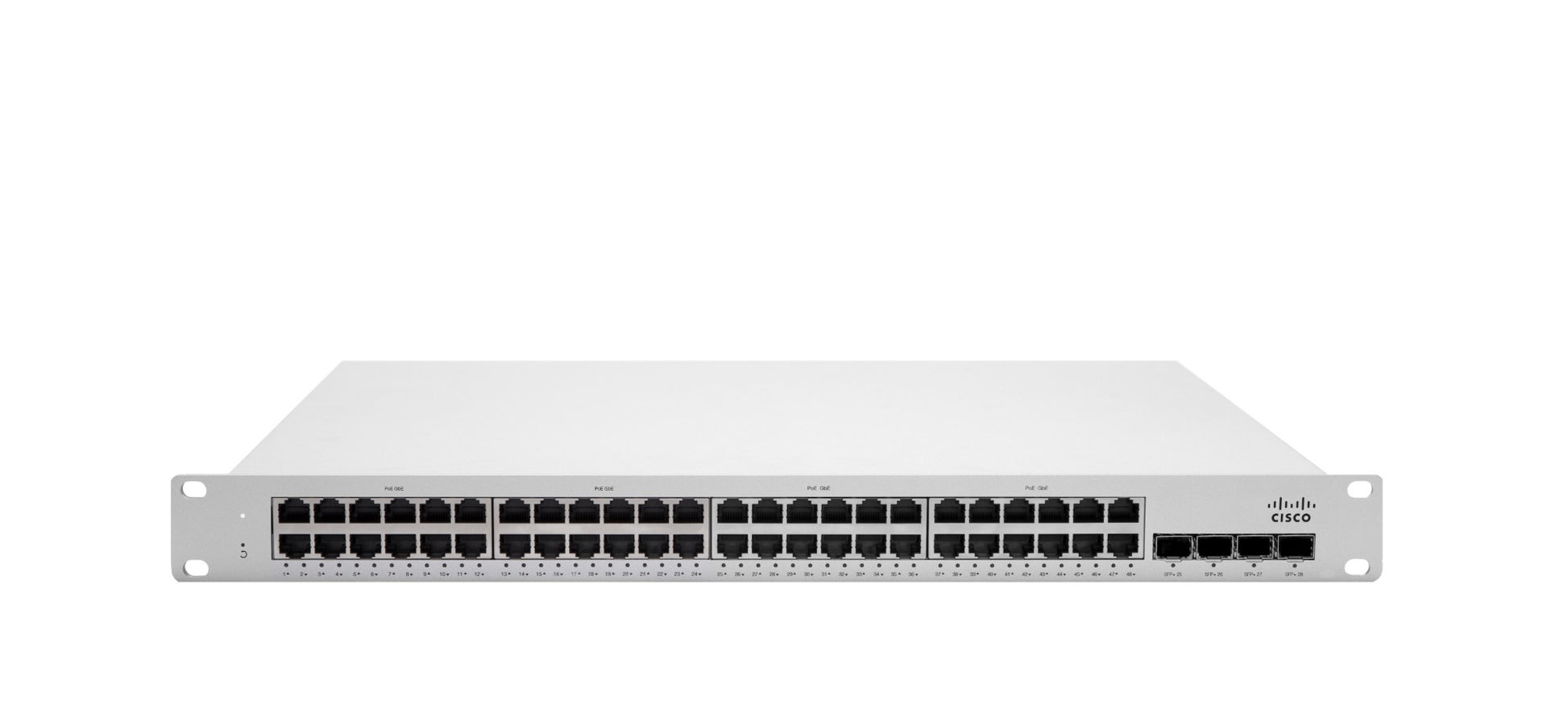

• Meraki MS225-48FP-HW silver cisco switch with PoE+ ports
1 1

Meraki

Meraki MS225-48FP-HW | MS225 48-Port PoE+ Switch, 740W, 4x 10G SFP+

MS225-48FP-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS225 is a cloud-managed, stackable Layer 2 access switch for branch and campus networks. It suits sites that need to power wireless access points, IP phones and cameras over PoE+ while keeping 10G uplinks and stacking available. Configuration, monitoring and firmware are handled from the Meraki Dashboard.

This 48-port full PoE model provides 48 x 10/100/1000BASE-T RJ45 ports with a 740W PoE+ budget, up to 30W per port, and four 10G SFP+ uplinks. Switching capacity is 176 Gbps, with jumbo frame support up to 9578 bytes and 32K MAC forwarding entries. It is a 1U rack-mount unit with a fixed internal power supply, 100-240 VAC, and static routing support.

Two dedicated stacking ports provide 80 Gbps of stacking bandwidth for up to 8 units, and the switch can be stacked with MS210 series switches. The SFP+ uplinks accept 1G and 10G SFP and SFP+ optics. An optional RPS2300 external redundant power supply is supported. This is the hardware-only part number, so a Meraki MS225-48 Enterprise licence is required to claim and manage it in the Dashboard.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Zero-touch cloud provisioning with scheduled automatic firmware upgrades
- Cloud dashboard with per-port and per-client usage statistics and device fingerprinting
- Remote troubleshooting tools including live packet capture and cable test
- Physical stacking of up to 8 switches (MS210 compatible) plus virtual stacking
- 802.1X authentication, DHCP snooping, dynamic ARP inspection and IPv4/IPv6 ACLs
- Broadcast storm control for network protection
- Static routing and warm spare (VRRP) redundancy
- SNMP and Syslog integration

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: MS225-48FP-HW
- Ports: 48 x 10/100/1000BASE-T RJ45 (auto-MDIX, PoE+)
- Uplinks: 4 x 10G SFP+ (1G/10G)
- Stacking ports: 2 (80 Gbps stacking bandwidth, up to 8 units)
- Management port: 1 x RJ45
- PoE+ budget: 740W (up to 30W per port)
- Switching capacity: 176 Gbps
- Jumbo frame support: 9578 bytes
- MAC forwarding entries: 32K
- Layer 3 routing: Static routing
- QoS: 6 configurable queues
- Power supply: Fixed internal, optional external RPS (RPS2300)
- Power input: 100-240 VAC, 47-63 Hz
- Power consumption: 54W idle, 882W at full load including PoE
- Dimensions (H x W x D): 4.38 x 48.46 x 34 cm
- Weight: 4.37 kg
- Mounting: 1U rack mount
- Operating temperature: -5 to 50 C
- Storage and transport temperature: -20 to 70 C
- Humidity: 5% to 95%
- MTBF (at 25 C): 320,555 hours

FAQs

Q: Does the MS225-48FP-HW include a licence?
A: No. This is the hardware-only part number. A Meraki MS225-48 Enterprise licence is required to claim and manage the switch in the Meraki Dashboard, and is purchased separately, typically as LIC-MS225-48FP-xYR.

Q: How much PoE power does it provide?
A: It provides a 740W PoE+ budget across its 48 ports, with up to 30W available per port, enough to power every port with PoE+ devices such as access points, phones and cameras.

Q: Can it be stacked with other switches?
A: Yes. The two dedicated stacking ports provide 80 Gbps of stacking bandwidth and support up to 8 units. It can be stacked with MS210 series switches.

Q: What optics do the uplink ports take?
A: The four SFP+ uplink ports support 1G and 10G SFP and SFP+ optics.

Q: Does it support redundant power?
A: It has a fixed internal power supply, and an optional external RPS2300 redundant power supply is supported.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
